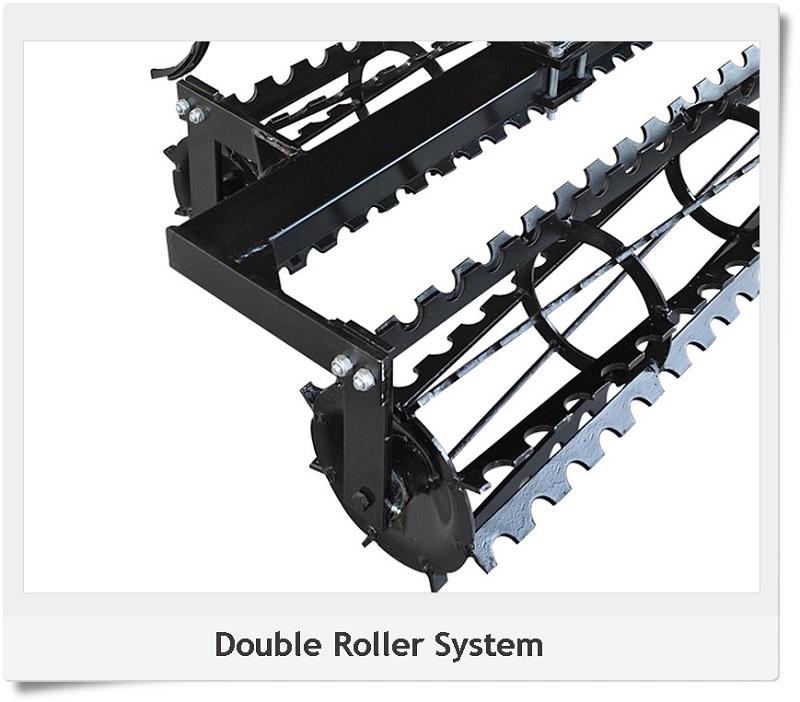

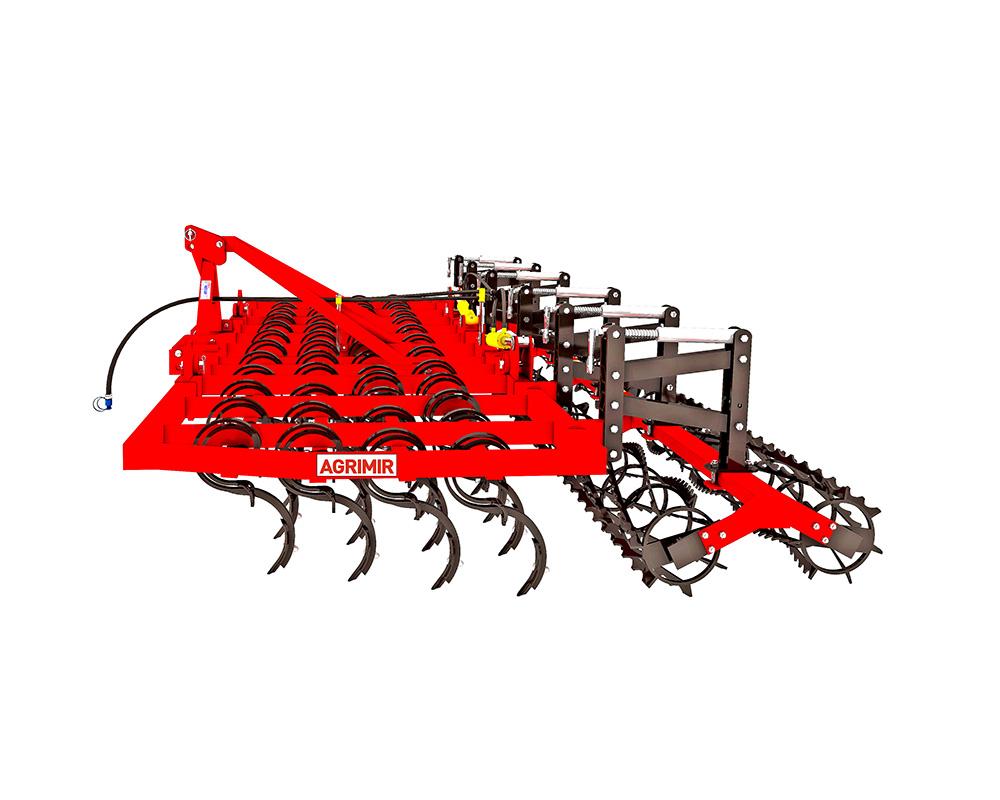

S-Tine Foldable Tiller is a secondary soil tillage machine is mounted to tractor's hydraulic lifting unit and universal three point linkage system, hydraulically mounted type machine. Therefore transportation to the field can be easily done. Hydraulically Foldable Tiller is used for preparing the soil before sowing by uprooting the weeds for to make fertilizer and preparing the seed-beds. Row spaces of the feet are adjustable. For preparing the soil for the sowing process single or double row roll also could be attachable at the back of the machine. By preparing seed bed. Sensitive working depth. Protects the soil; prevents erosion. Protects the humidity of the soil; increases water Pr penetration capacity. Of compared with other machines minimum fuel consumption. Very effective against wild grass fighting. Leveling the field with the help of its roller. Prepares the soil excellently for the plant growth
Tecnical Features |
Units |
Models |
AFC35 |
AFC40 |
AFC45 |
AFC50 |
AFC55 |
AFC60 |
ARFC65 |
Number of Tines |
pcs |
35 |
40 |
45 |
50 |
55 |
60 |
65 |
Total Width |
cm |
370 |
420 |
470 |
520 |
570 |
620 |
670 |
Working Width |
cm |
360 |
410 |
460 |
510 |
560 |
610 |
660 |
Workig Depth |
cm |
20 |
Length Without Roller |
cm |
170-200 |
Length With Roller |
cm |
240-270 |
Total Hight |
kg |
140 |
Weight Without Roller |
kg |
580 |
650 |
720 |
790 |
860 |
930 |
1000 |
Weight With Roller |
kg |
980 |
1060 |
1140 |
1220 |
1300 |
1380 |
1460 |
Tractor power |
hp |
70-80 |
90-100 |
110-120 |
130-140 |
150-160 |
170-180 |
190-200 |
