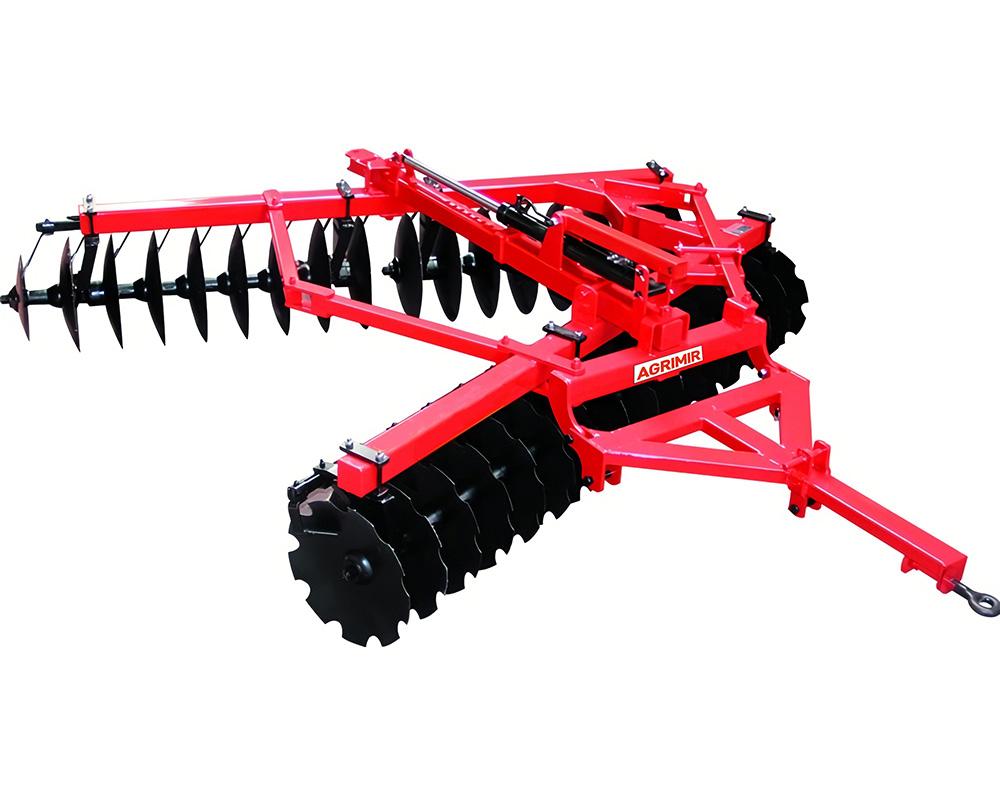

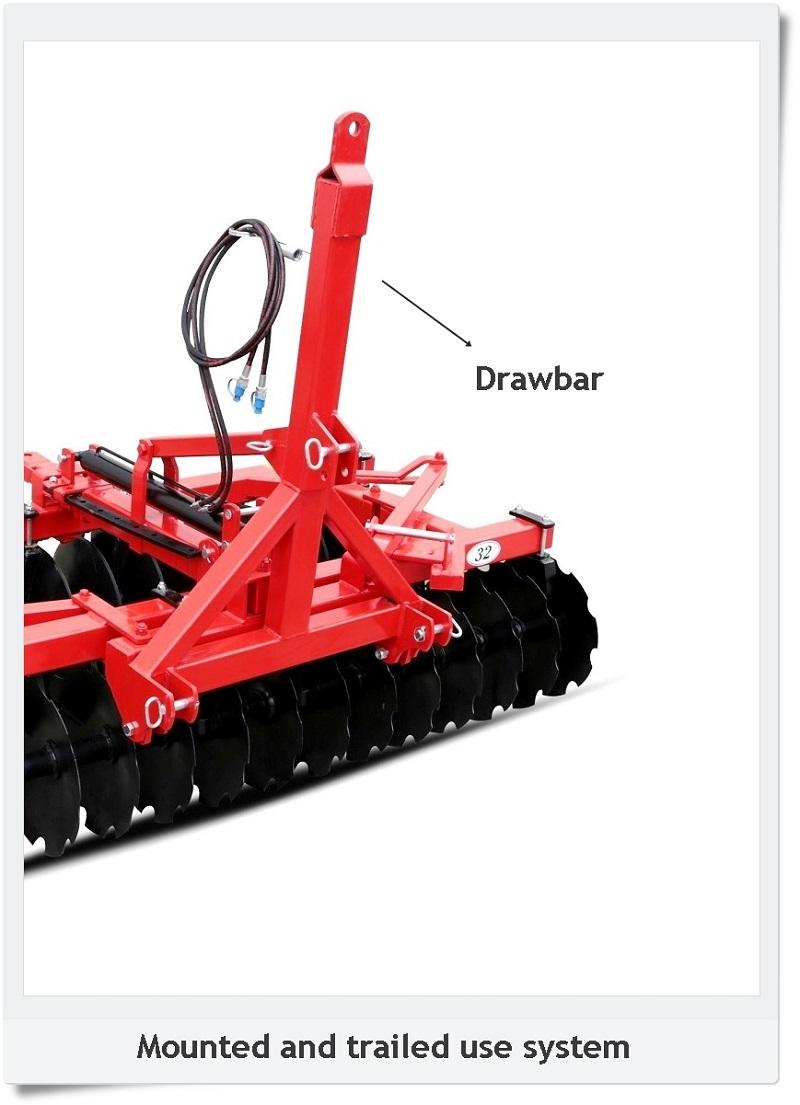

The Implements of trailed and mounting types of disc harrows are mounted to the tractors by three point linkages. Additionaly, the user can also use it as trailed type. Disc harrows are made of steel square rods arranged in row with bearings. High resistant, heat treated disc set frames are connected main frame. Used for scrapping pieces on the soil and stems of sunflower, wheat, rice, plant remnants wild grass. And also to break the surface of the soil and mix the manure and chemical fertilizers with the soil. Disc harrows are used either in cultivating vineyard, garden, fruit tree and olive tree fields or in cultivating plain fields. Preferably used type in the fields of trees and vineyards is culti mounted type and in the plain fields, the trailed type is preferred.
Tecnical Features |
Units |
Models |
AOD20 |
AOD24 |
AOD28 |
AOD32 |
AOD36 |
AOD40 |
Number of Discs |
pcs |
20 |
24 |
28 |
32 |
36 |
40 |
Disc Diameter |
mm |
460x3,5 |
Distance Between Disc |
cm |
18 |
Number of Beds on Crank |
pcs |
8 |
8 |
8 |
8 |
12 |
12 |
Working Width |
cm |
180 |
216 |
252 |
288 |
324 |
360 |
Total Width |
cm |
223 |
258 |
293 |
328 |
363 |
398 |
Total Length |
cm |
147 |
Total Height |
cm |
205 |
Frame |
mm |
100x100x5 |
Weight |
kg |
610 |
740 |
795 |
852 |
1040 |
1235 |
Tractor Power |
hp |
50-55 |
55-60 |
60-70 |
70-80 |
80-90 |
90-100 |
