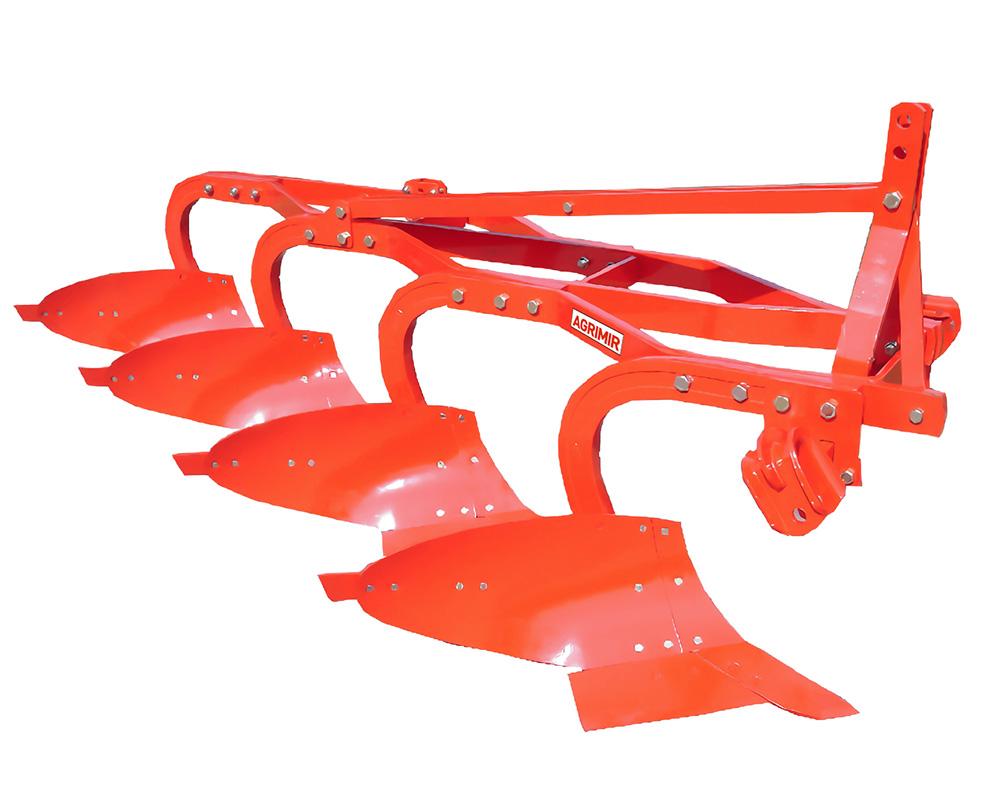

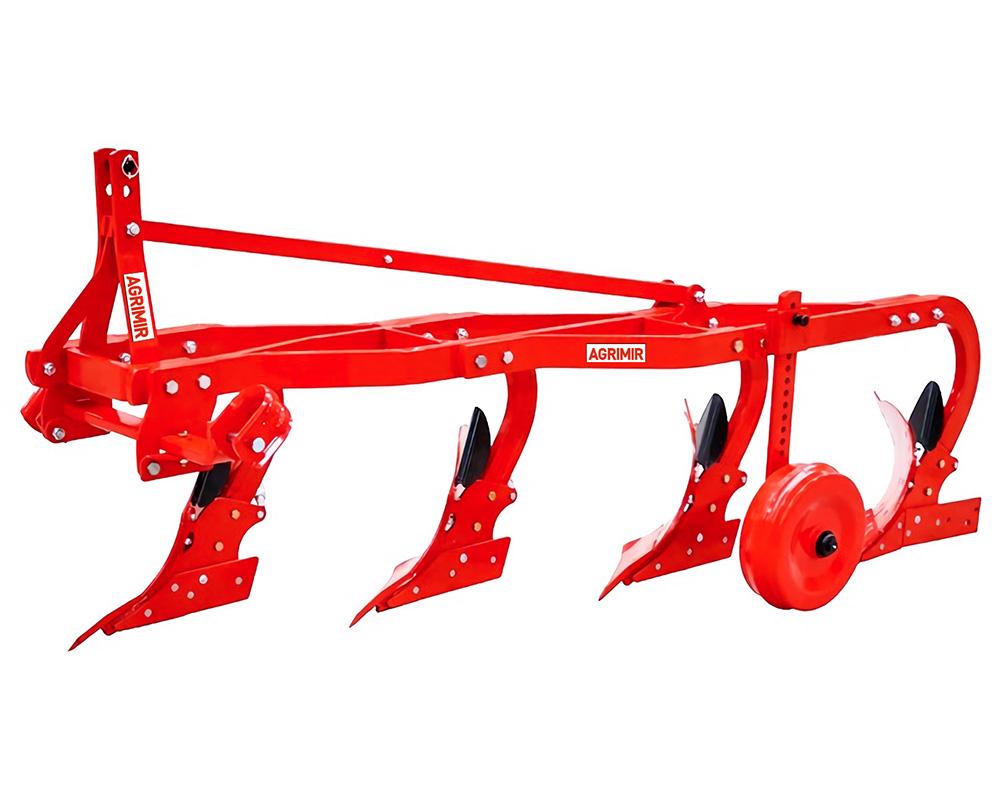

Classic Mouldboard Plough

General Features :

Classic Mouldboard Plough are manufactured in 2, 3, 4, 5 body.

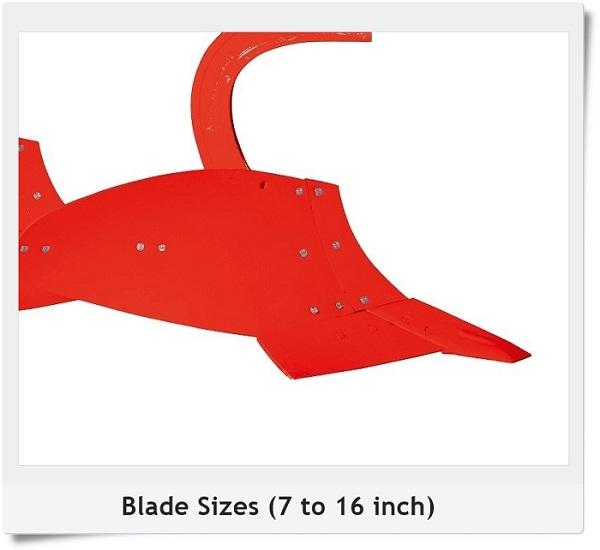

Chassis sizes: 85x25, 85×28 and 90×30 mm.Body intervals: 60 and 85 cm.Body Sizes: 10, 12, 14 and 16  inch.

The primary purpose of ploughing is to turn over the upper layer of the soil, bringing fresh nutrients to the surface, while burying weeds, the remains of previous crops, and both crop and weed seeds, allowing them to break down.

It also provides a seed-free medium for planting an alternative crop.

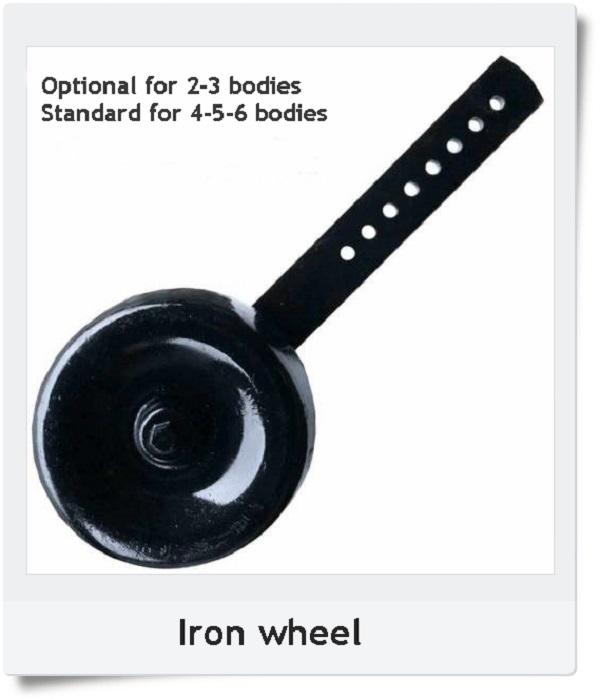

Balanced and smooth driving ability with its wheel, and its coulter options are some of the main features of our product.

By safety system of the plough, being damaged rate is reduced at the lowest level.



Technical



MODELS

Units

ARSP2

ARSP3

ARSP4

ARSP5

Number of Bodies

pcs

2

3

4

5

Total Length

 cm

182

256

329

403

Total Width

 cm

110

123

160

196

Total Height

cm

127

127

127

127

Working Depth

cm

30-35

30-35

35-40

35-40

Working Width

cm

70

120

140

175

Space of Body

cm

35

35

35

35

Tractor Power

hp

60-65

65-75

80-90

100-120

Total Weight

kg

220

340

490

610
