Products

  1. Home
  2. Soil Tillage
  3. Folding and Trailed Multi Disc Harrow

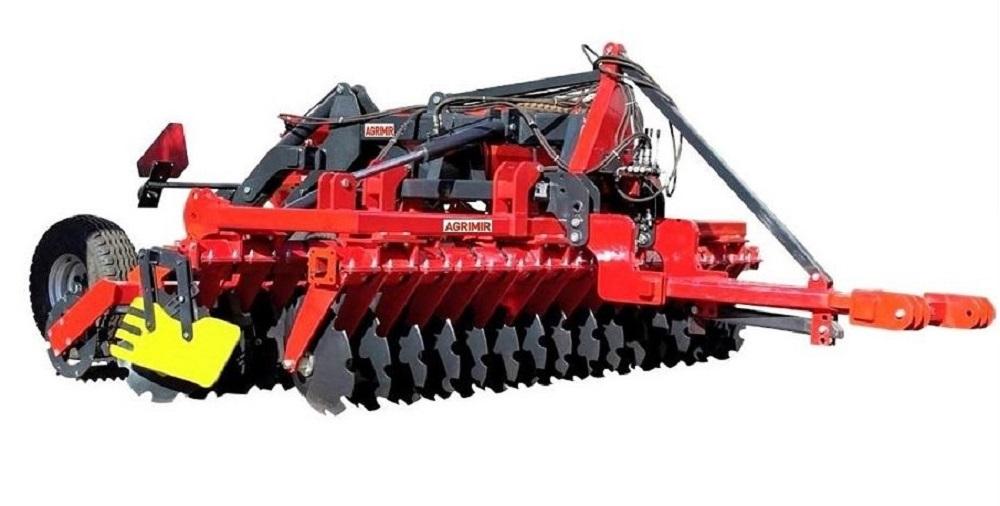

Folding and Trailed Multi Disc Harrow

  • Product Detaıls
  • Pıctures

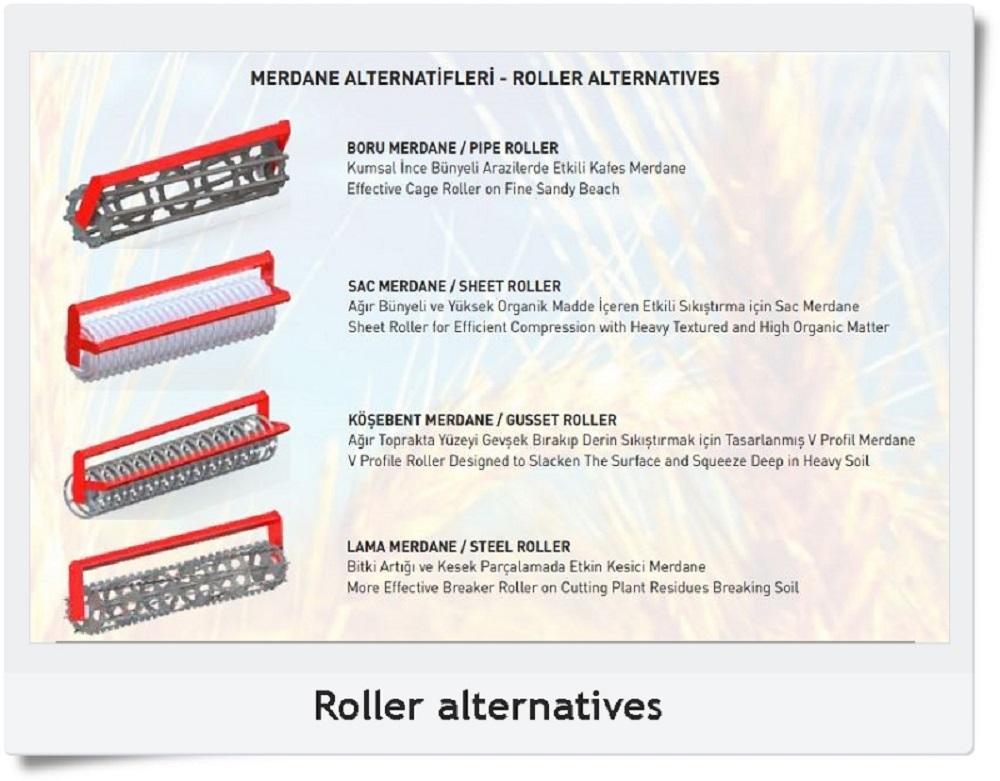

  • Optıonal Equıpments
  • Catalog

Tecnical Features

Units

Models

AFMD32

AFMD36

AFMD40

AFMD44

AFMD48

AFMD52

Number of Discs

pcs

32

36

40

44

48

52

Disc Diameter

mm

560x5

Distance Between Disc

cm

25

Working Width

cm

400

450

500

550

600

650

Weight

kg

3350

3800

4150

4300

4450

4700

Tractor Power

hp

130-150

150-180

180-200

200-230

210-250

230-260





Folding and Trailed Multi Disc Harrow
