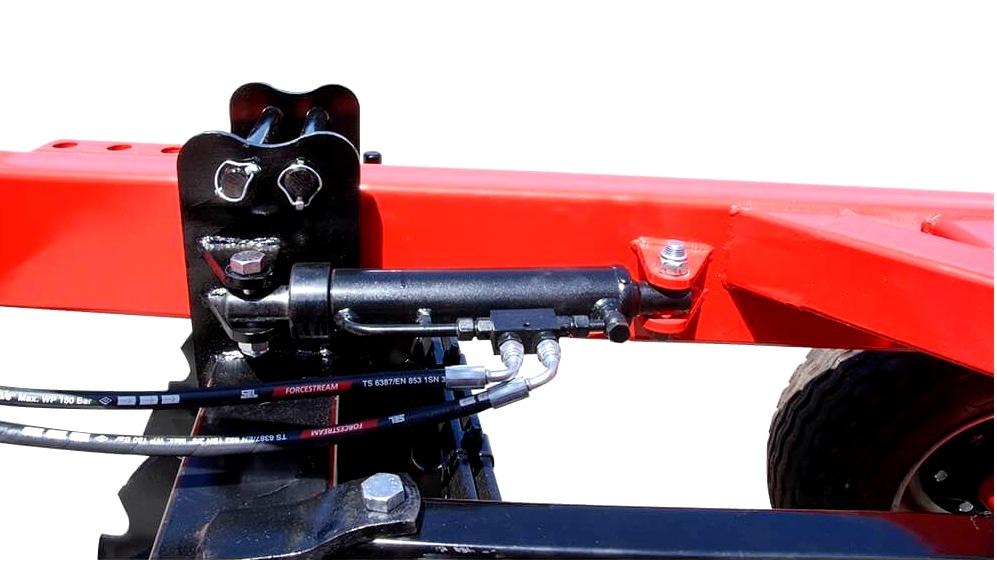

It eases transport and operation in the divided field. During the operation in field, passing from mounting mode to movement mode is as simple as placing and removing the pin. Operation Fields: it provides an ease for breaking stubbles into pieces, preparing seed casing, scratching organic materials on the earth and challenging with excessively grown green grass especially in the climates with heavy rain. Used for scrapping pieces on the soil and stems of sunflower, wheat, rice, etc. It is easy to transport the machine from one field to another by assistance of hydraulic lifted wheels on the equipment. On the field, corner turnings become faster by the assistance of the hydraulic lifts operated the field, corner turnings become faster from tractor cabin. It is easy to adjust the working depth by the up and down movement of the wheels
Tecnical Features |
Units |
Models |
AGD16 |
AGD18 |
AGD20 |
AGD22 |
AGD24 |
AGD26 |
AGD28 |
AGD30 |
AGD32 |
Number of Discs |
pcs |
16 |
18 |
20 |
22 |
24 |
26 |
28 |
30 |
32 |

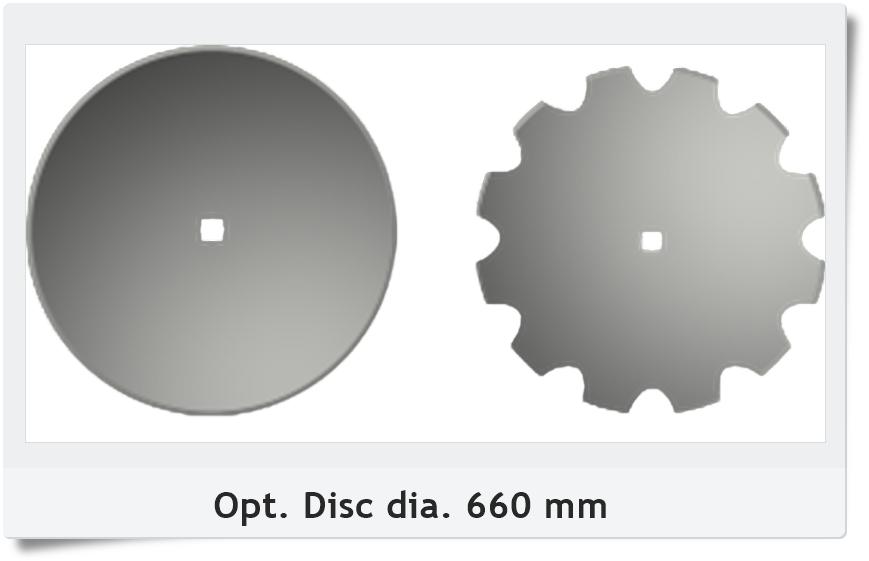

Disc Diameter |
mm |
610x5 |
Distance Between Disc |
mm |
225 |
Bed Numbers on Crank |
pcs |
4 |
6 |
8 |
8 |
8 |
8 |
8 |
8 |
8 |
Working Width |
cm |
180 |
207 |
230 |
253 |
276 |
299 |
322 |
345 |
368 |
Total Width |
cm |
200 |
222 |
244 |
266 |
288 |
310 |
332 |
354 |
376 |
Total Length |
cm |
520 |
520 |
520 |
520 |
520 |
527 |
527 |
527 |
562 |
Total Hight |
cm |
135 |
Chassis |
mm |
100x200x6 |
Weight |
kg |
1385 |
1485 |
1560 |
1660 |
1785 |
1860 |
1930 |
2010 |
2130 |
Tractor Power |
hp |
60-65 |
70-75 |
75-80 |
85-90 |
90-100 |
110-120 |
120-130 |
130-140 |
140-150 |
