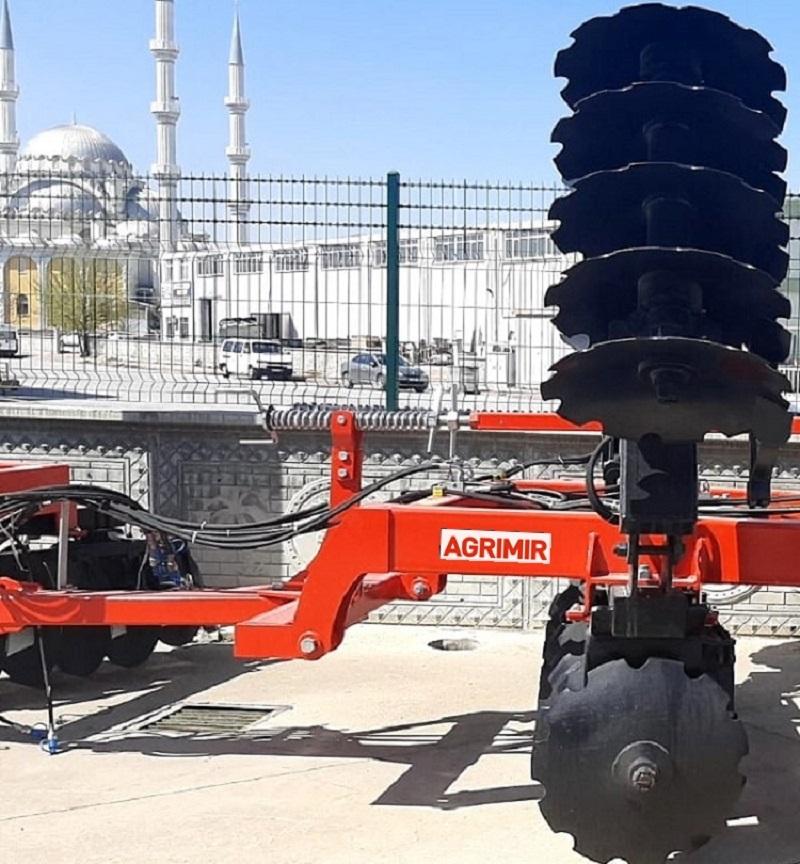

Hydraulic lift foldable disc harrow is a trailing type machine which is prepares the field directly for planting by harrowless taming without using any other agricultural machine in dry seasons where ploughs can not enter after the harvest and it may be used to tame the soil including intensive humidity as well.Folding type offset disc harrows prevents wind and water erosion while ploughing the stubble due to the movement with hydraulic system and having multidirectional movement capacity. It provides the wheel to move on field level by the axle mechanism on the wheel and thereby working depth may be adjusted efficiently. It has a work depth more than soil culvitation machines. It is more adjusted efficientl economical than other soil cultivation machines with higher operation speed and more work depth. Due to these features, fuel, time, workmanship and spare part costs are less. It reduces the share of soil cultivation within total cost.
Tecnical Features |
Units |
Models |
FGD40 |
FGD44 |
FGD48 |
FGD52 |
FGD56 |
Number of Discs |
pcs |
40 |
44 |
48 |
52 |
56 |
Disc Diameter |
mm |
610 |
610 |
610 |
610 |
610 |
Distance Between Discs |
cm |
22 |
22 |
22 |
22 |
22 |
Total Height |
cm |
285 |
320 |
350 |
385 |
415 |
Total Width |
cm |
473 |
517 |
561 |
605 |
649 |
Working Width |
cm |
440 |
484 |
528 |
572 |
616 |
Trasport Width |
cm |
340 |
340 |
340 |
340 |
340 |
Tractor Power |
hp |
180-200 |
220-240 |
240-260 |
270-300 |
300-330 |
Weight |
kg |
3970 |
4300 |
4650 |
5155 |
5415 |
