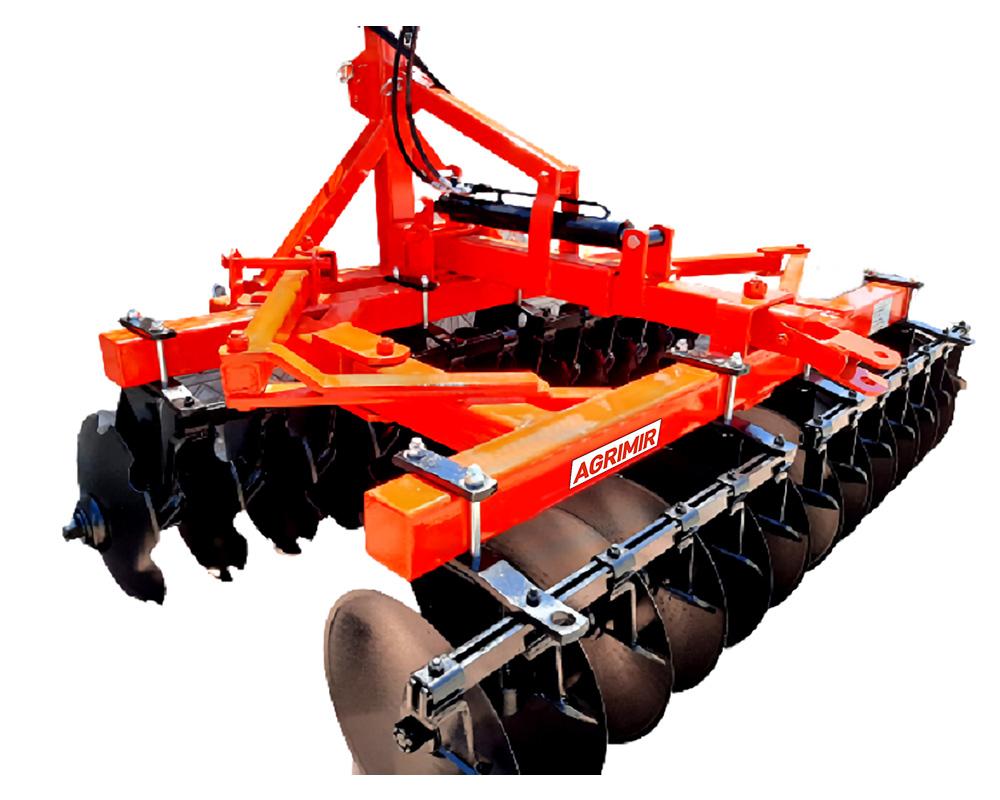

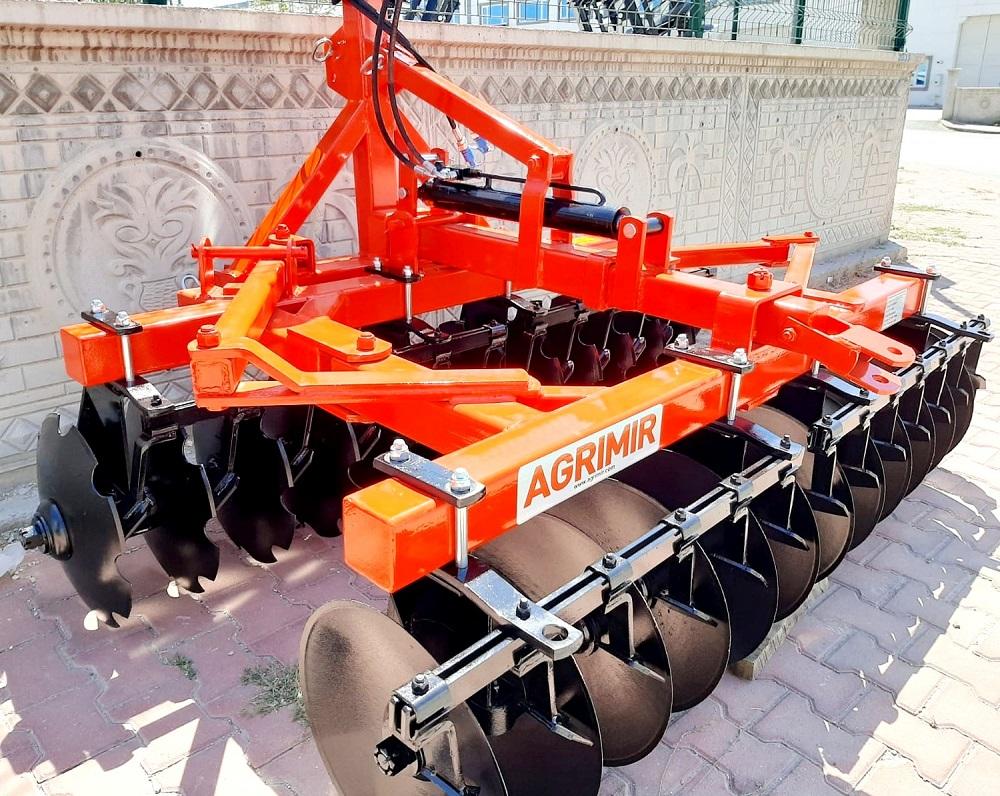

Heavy Type Offset Disc Harrow

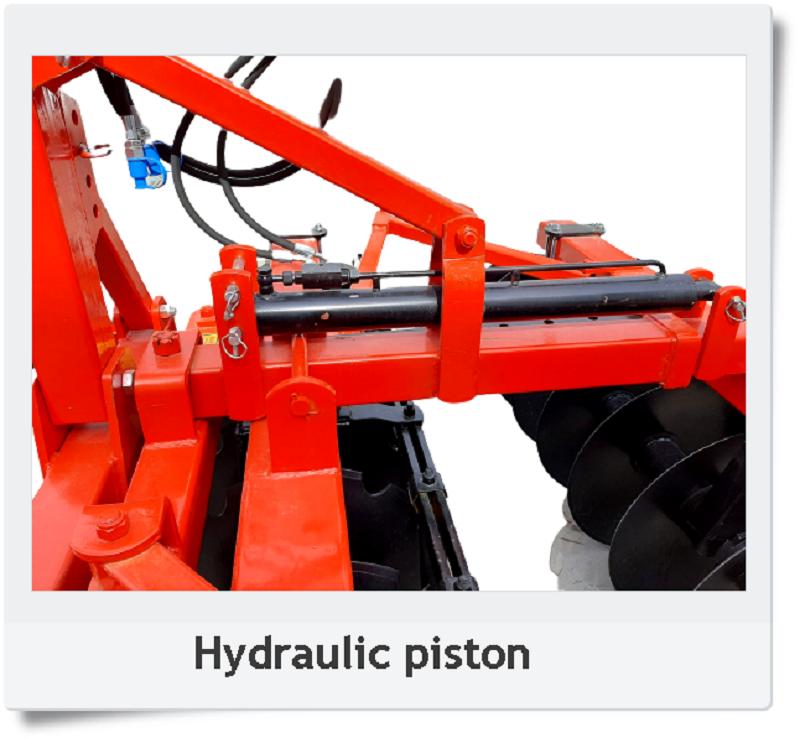

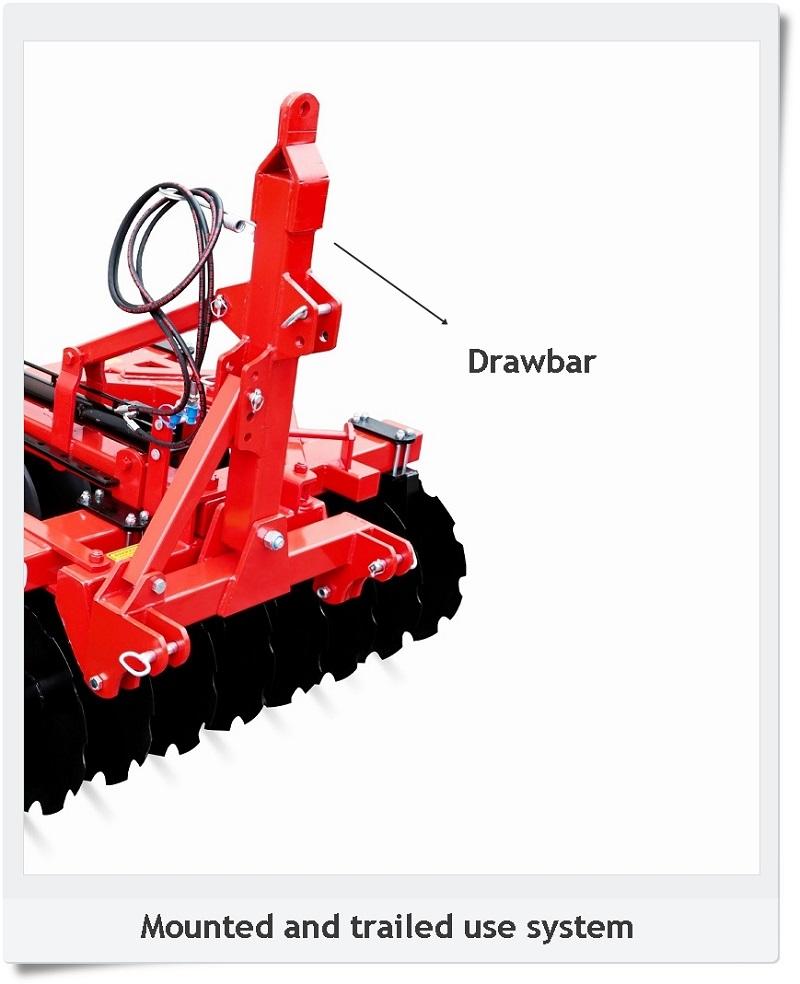

They are with hydraulic and trailed type machines which are used to dissect plant residues (corn, sunflower, wheat etc.) and weeds; to break the duff layer; for doubling and triplet in a field left for fallowing after plowing. It prepares the field directly for planting by harrowless taming without using any other agricultural machine in dry seasons where ploughs can not enter after the harvest and it may be used to tame the soil including intensive humidity as well

Tecnical Features Units Models
AHOD16 AHOD18 AHOD20 AHOD22 AHOD24
Number of Discs pcs 16 18 20 22 24
Disc Diameter mm 610x5
Distance Between Disc cm 22
Number of Beds on Crank pcs 4 4 6 6 8
Working Width  cm 184 207 233 253 276
Weight  kg 900 990 1040 1125 1215
Tractor Power hp 65-75 80-90 90-100 100-110 110-120
