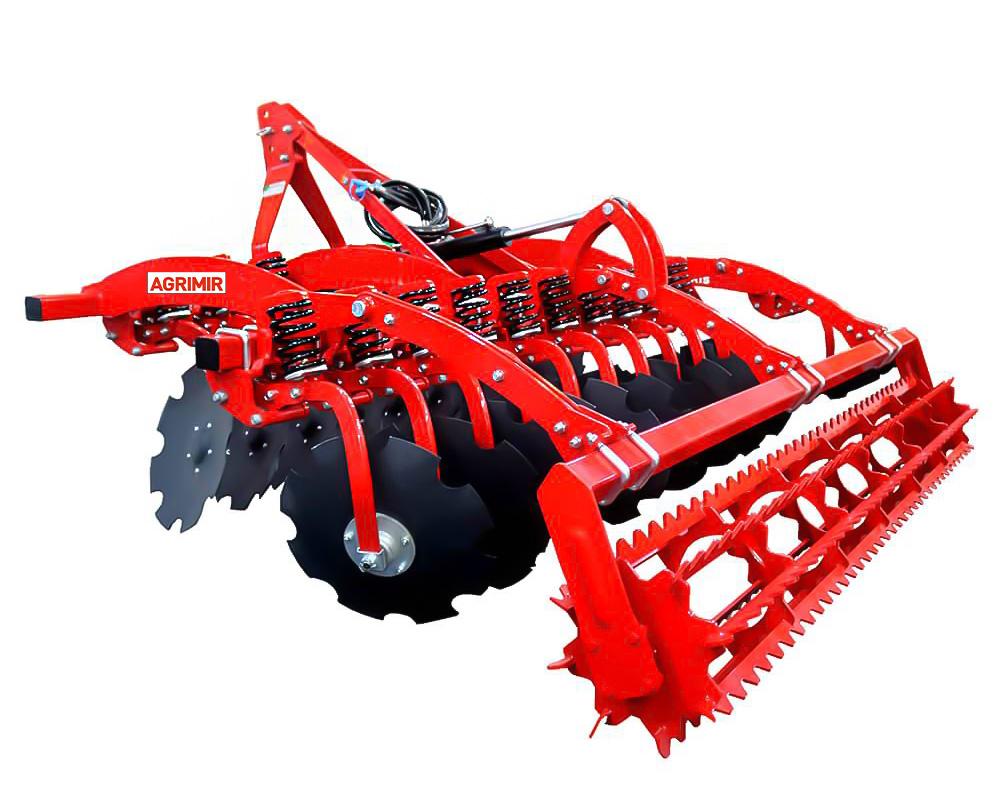

Spring Multi Disc Harrow

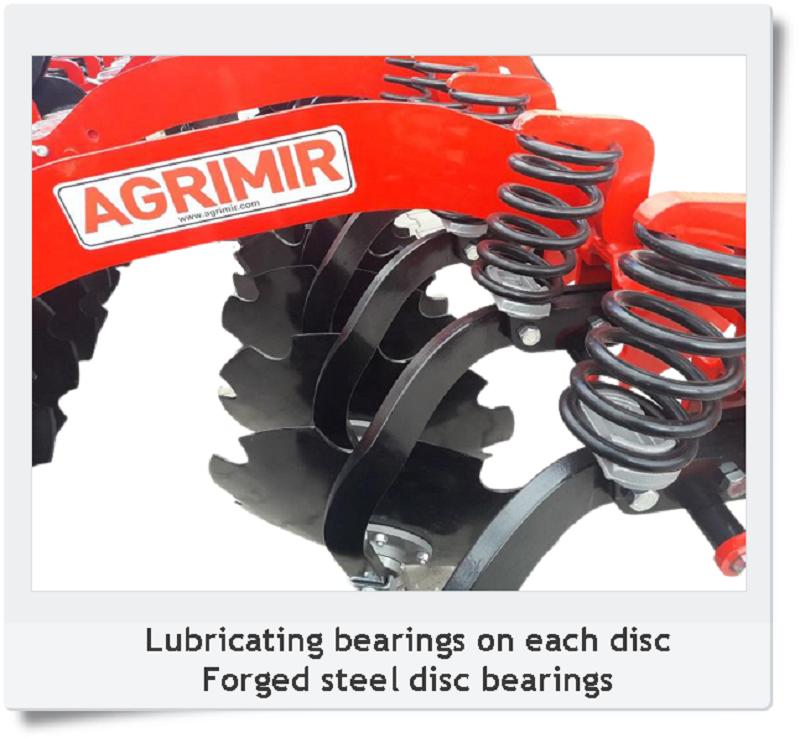

It has a large usage alternatives on soil processing especially for seed bed preperation and stubble processing. It decreased the product costs by its combined design. The high working capasity brings low costs and low fuel. Notched discs had been tied to frame with rubber roll springs. Adding the soil and the plant parts to the soil by crumbling can be done in a high performance by this structure. It is an ideal machine for minimum soil processing that becomes important in the last years. It is possible with this machine to mix by crumbling plant parts in the best way and to become useful faster for the plant, consequently to bring in biological balance of the soil again

Tecnical Features Units Models
ASMD16 ASMD18 ASMD20 ASMD22 ASMD24 ASMD26 ASMD28 ASMD30 ASMD32 ASMD34
Number of Discs pcs 16 18 20 22 24 26 28 30 32 34
Weight kg 930 1030 1120 1270 1360 1460 1550 1640 1730 1870
Working Width  mm 2000 2250 2500 2750 3000 3250 3500 3750 4000 4250
Power hp 55-65 65-75 75-85 85-95 95-110 110-120 120-130 130-140 140-150 150-170
Working Depth mm 250 250 250 250 250 250 250 250 250 250
Disc Diameter  mm 620 620 620 620 620 620 620 620 620 620

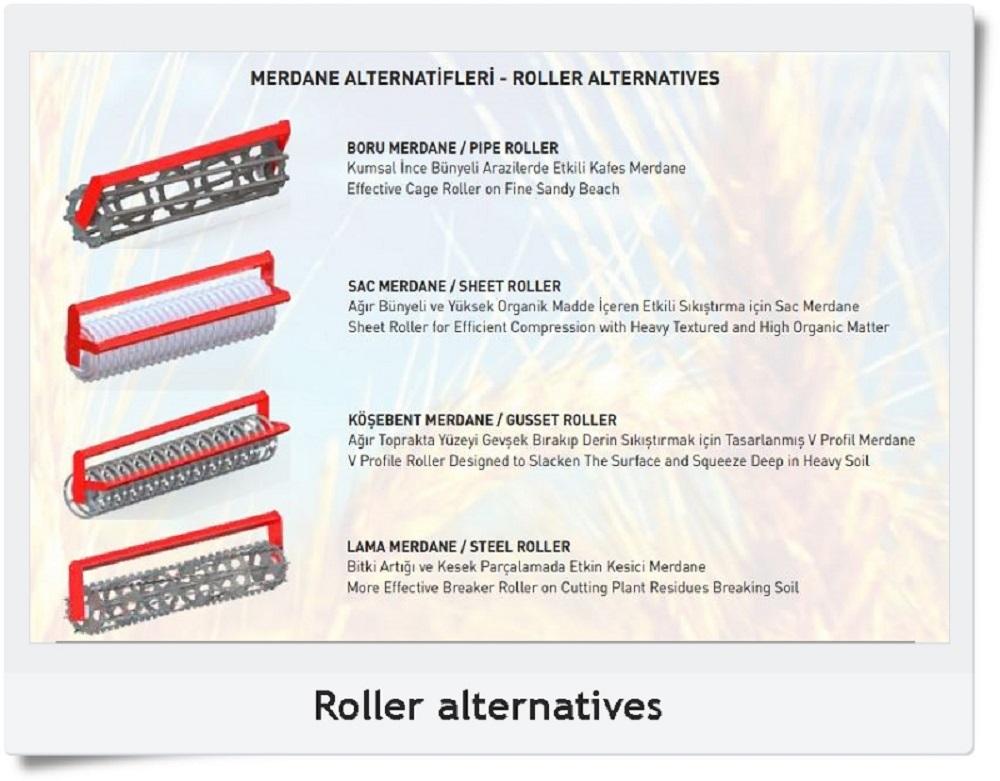

Tecnical Features Units WITH ROLLER
ASMD16-R ASMD18-R ASMD20-R ASMD22-R ASMD24-R ASMD26-R ASMD28-R ASMD30-R ASMD32-R ASMD34-R
Number of Discs pcs 16 18 20 22 24 26 28 30 32 34
Weight kg 1200 1320 1410 1600 1710 1085 1920 2025 2120 2235
Working Width  mm 2000 2250 2500 2750 3000 3250 3500 3750 4000 4250
Power hp 55-65 65-75 75-85 85-95 95-110 110-120 120-130 130-140 140-150 150-170
Working Depth mm 250 250 250 250 250 250 250 250 250 250
Disc Diameter  mm 620 620 620 620 620 620 620 620 620 620
