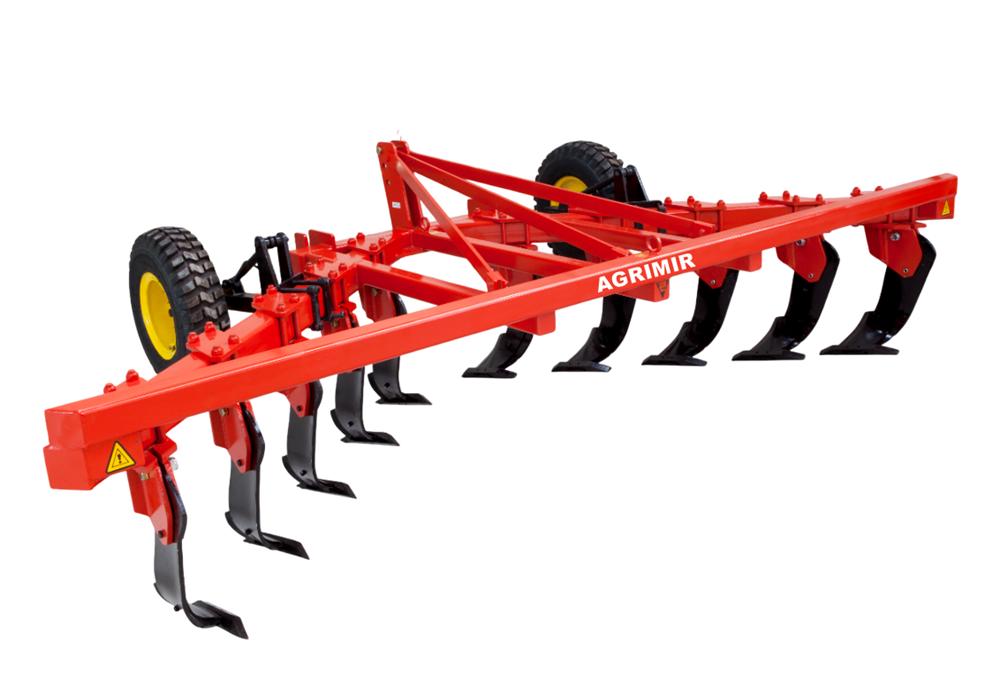

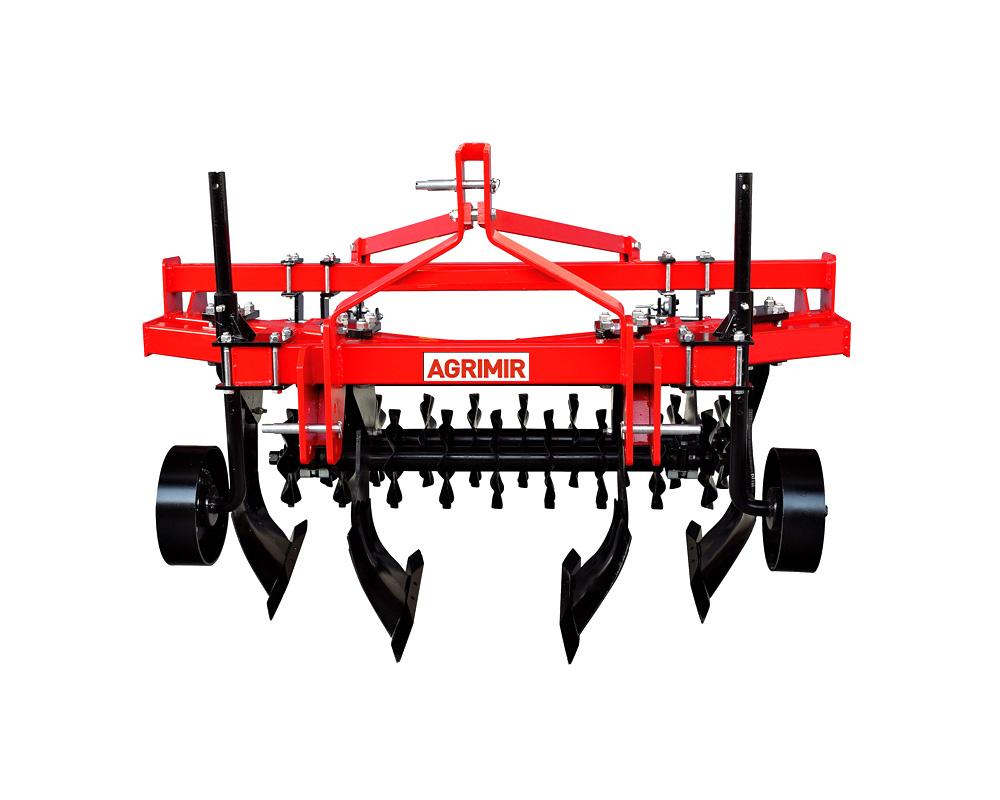

French Type Subsoiler

French Type Subsoiler

Catalog

French Type Subsoiler

General Features :

It subsoils the field deeply and cracks hard soil caused by ploughing.Our subsoilers does not let the infertile soil to the surface.

Allows airing deeply so that it allows rain to penetrate deeper. On graded fields it prevents rain glaining away, therefore prevents erosion and loss of grain.

It saves the humidity of the soil by penetrating rain and snow water.

By cracking hard soil, it allows the plants root to grow deeper up to 50 cm. The top shares also sharpens themselves by every working. By using our subsoilers on your fields you can increase the productivity up to 35 %.

Technical



MODELS



Unit

AFS-2

AFS-4

AFS-6

AFS-8

AFS-10

Number of  Tines

pcs

2

4

6

8

10

Distance  Between  Tines

cm

50

Working Width

cm

80

180

280

380

500

Total Width

cm

110

214

320

420

530

Total Length

cm

80

103

145

186

230

Total Height

cm

150

Working Depth

cm

30-70

Frame Size

mm

120x120x8

150x150x10

Weight  Without  Roller

kg

500

740

950

1510

1885

Weight  Withr  Roller

kg

760

1260

1720

2540

3175

Tractor  Power

Hp

70-80

100-110

150-170

190-230

240-270
