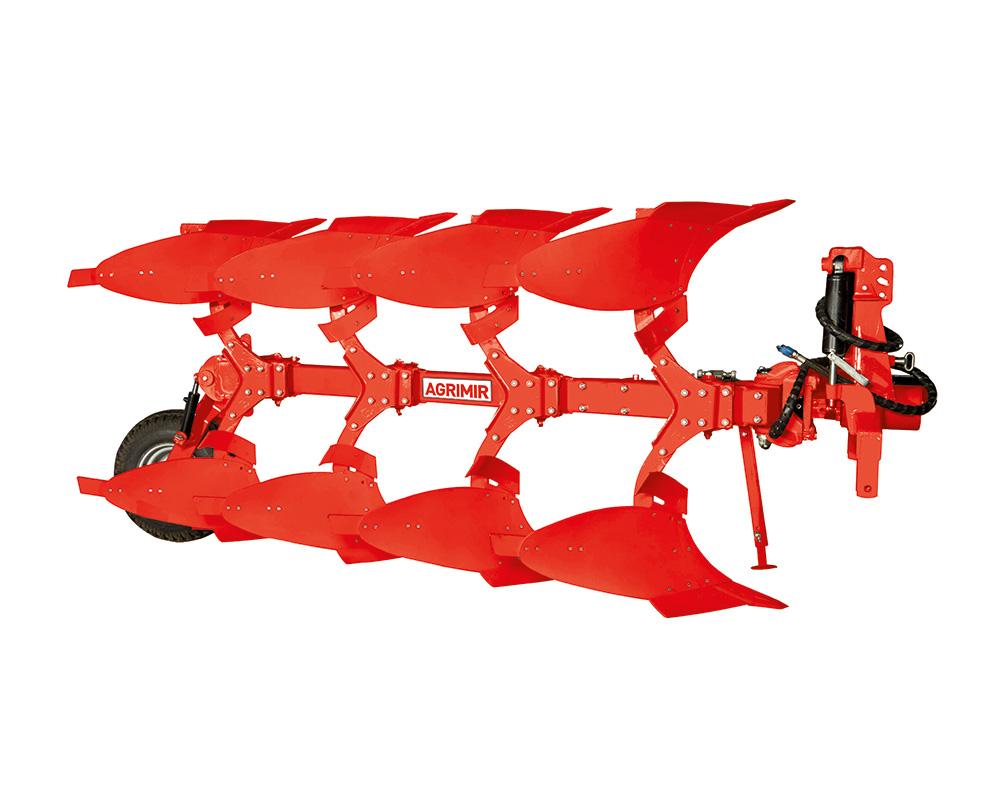

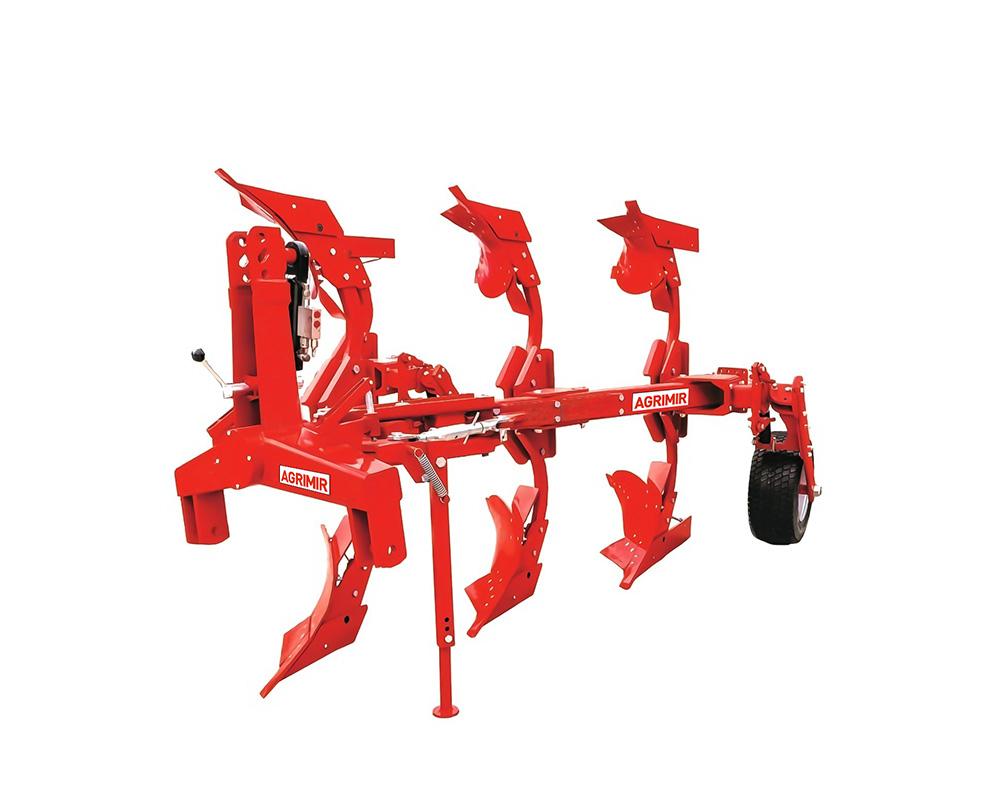

Adjustable Reversible Plough

General Features :

Reversible ploughs are manufactured in 2, 3, 4, 5, 6 furrow.

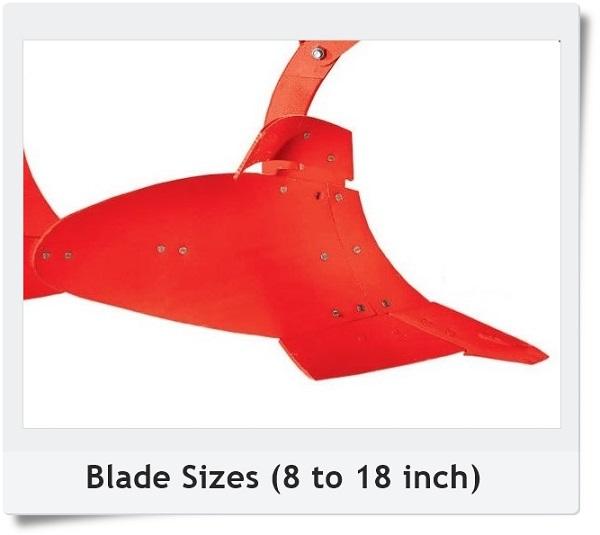

Chassis sizes: 120×120,  140×120 and 160×120 mm options.Body intervals: 75, 80,  85,  91,5 cm options.Body Sizes: 12, 14, 16 inch options.

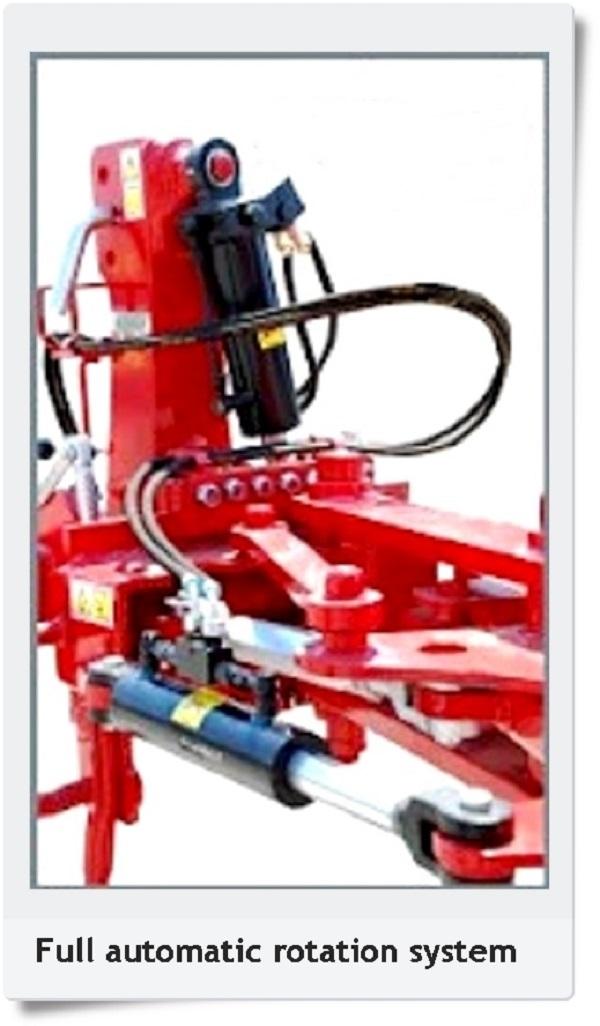

Mechanical and hydraulic adjustable model options.Reversible ploughs  do us proud of serving farmers by special raw materials profile that provides elasticity for the reversible plough as well as heat treatment processed poles as a first and impact resistant mouldboard and knife non-catching mud in European standard. It is very practical to adjust and use of the Reversible Plough.

When using the reversible Plough it is no need to turn around a furrow, return can be made on the same line.

  • Saving time and fuel oil

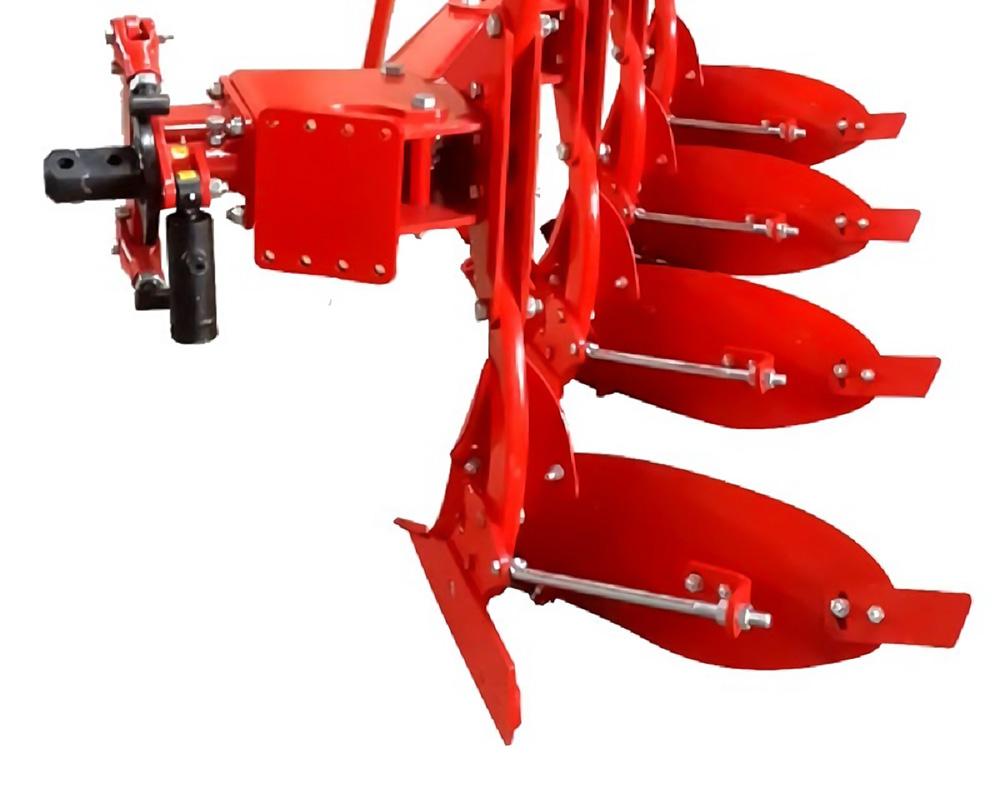

  • Penetration adjustment on each body
  • Standardization of the parts
  • Long lasting original parts

Technical



MODELS

Units

ARRP2

ARRP3

ARRP4

ARRP5

ARRP6

Number of Bodies

pcs

2

3

4

5

6

Total Length

 cm

193

284

378

450

600

Total Width

 cm

170

204

238

285

320

Total Height

cm

158

158

158

164

164

Working Depth

cm

35

35

35

35

35

Working Width

cm

62-90

93-135

120-180

155-225

180-252

Space of Body

cm

80

80

80

85

85

Body Size

inch

12-14

12-14

12-14

12-14

12-14

Tractor Power

hp

60-65

80-85

90-120

130-60

170-195

Total Weight

kg

550

890

1065

1305

1540
