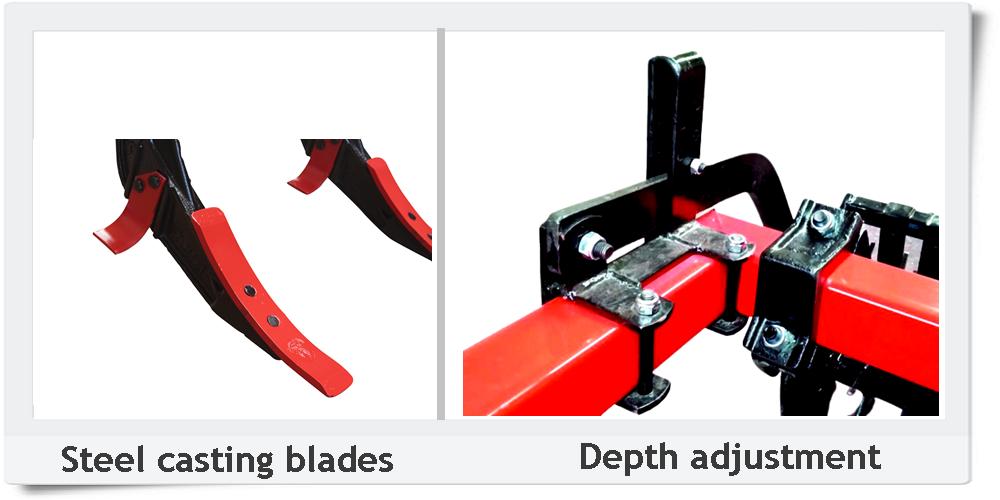

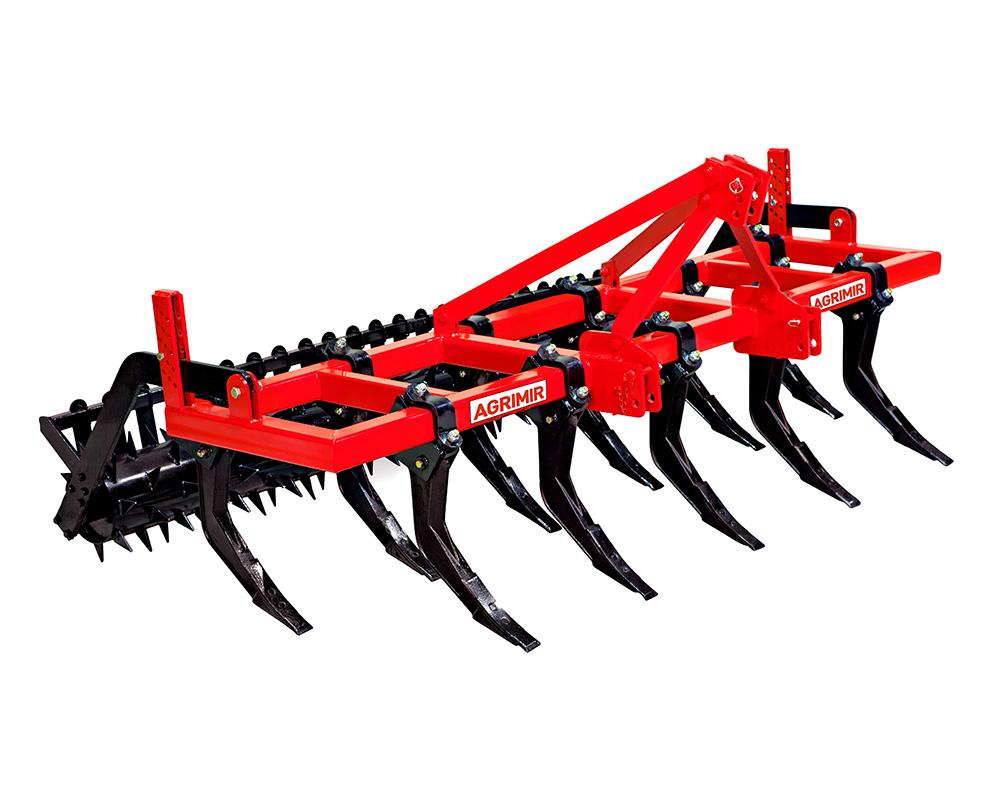

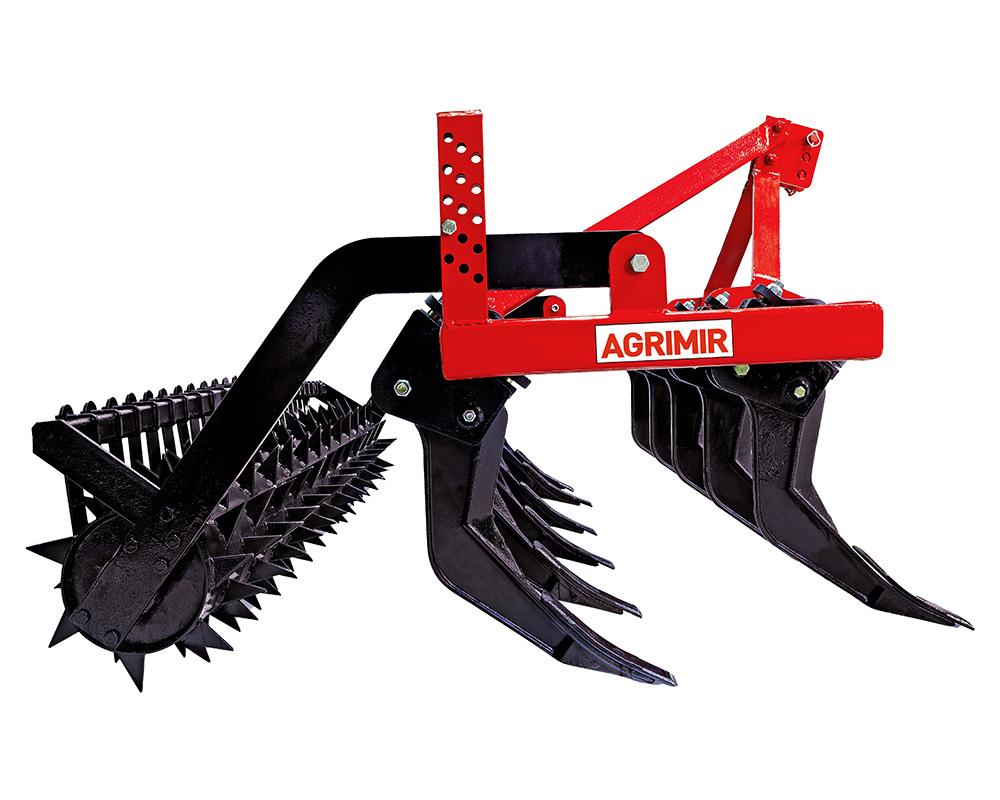

Chisels are available in 5-7-9-11-13-15 and opt. 17 tines, creates a difference from its similar no soldered steel rolled iron is use in the chassis and special alloyed steel cast used for tines. Breaking the soil surface which was formed by ploughing for a long time; processing the soil without tipping and airing the soil are the main functions of the Chisel type plough.nIn this type plough, safety pins come into action in case of sudden pressure and prevent the tractor and the chassis against possible damage. The tines are designed for getting the maximum performance from tractor power by giving them the most appropriate submersion angle.
| Tecnical Features |
Units |
Models |
| ACH5 |
ACH7 |
ACH9 |
ACH11 |
ACH13 |
ACH15 |
| Number of Tines |
pcs |
5 |
7 |
9 |
11 |
13 |
15 |
| Working Width |
cm |
128 |
191 |
235 |
289 |
341 |
391 |
| Working Depth |
cm |
25-45 |
25-45 |
25-45 |
25-45 |
25-45 |
25-45 |
| Total Width |
cm |
157 |
220 |
270 |
320 |
370 |
470 |
| Length Without Roller |
cm |
110 |
110 |
110 |
120 |
120 |
120 |

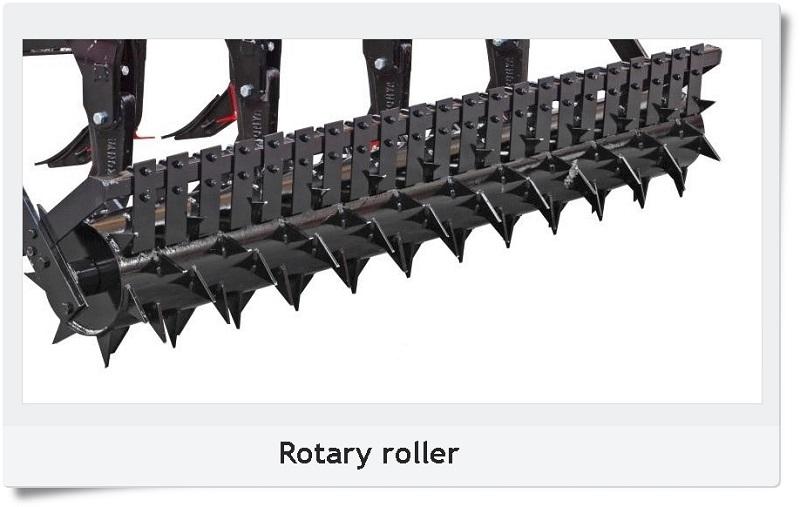

| Length With Roller |
cm |
187 |
187 |
187 |
197 |
197 |
197 |
| Total Height |
cm |
133 |
| Distance Between Tines |
cm |
25 |
25 |
25 |
25 |
25 |
25 |
| Weight Without Roller |
kg |
400 |
450 |
560 |
700 |
850 |
1050 |
| Weight With Roller |
kg |
565 |
650 |
800 |
970 |
1160 |
1375 |
| Tractor Power |
hp |
60-70 |
70-80 |
80-90 |
90-100 |
100-110 |
110-120 |
