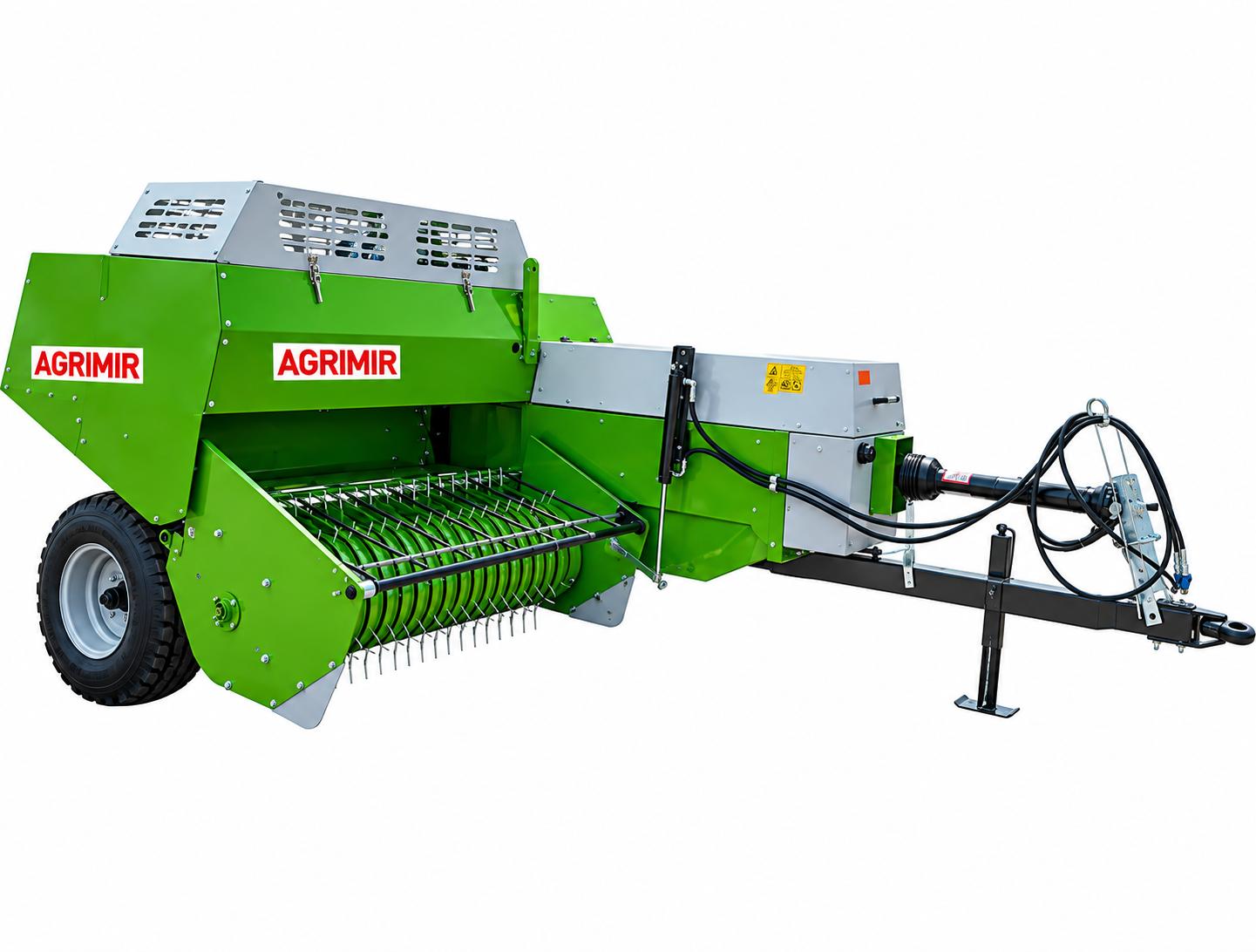

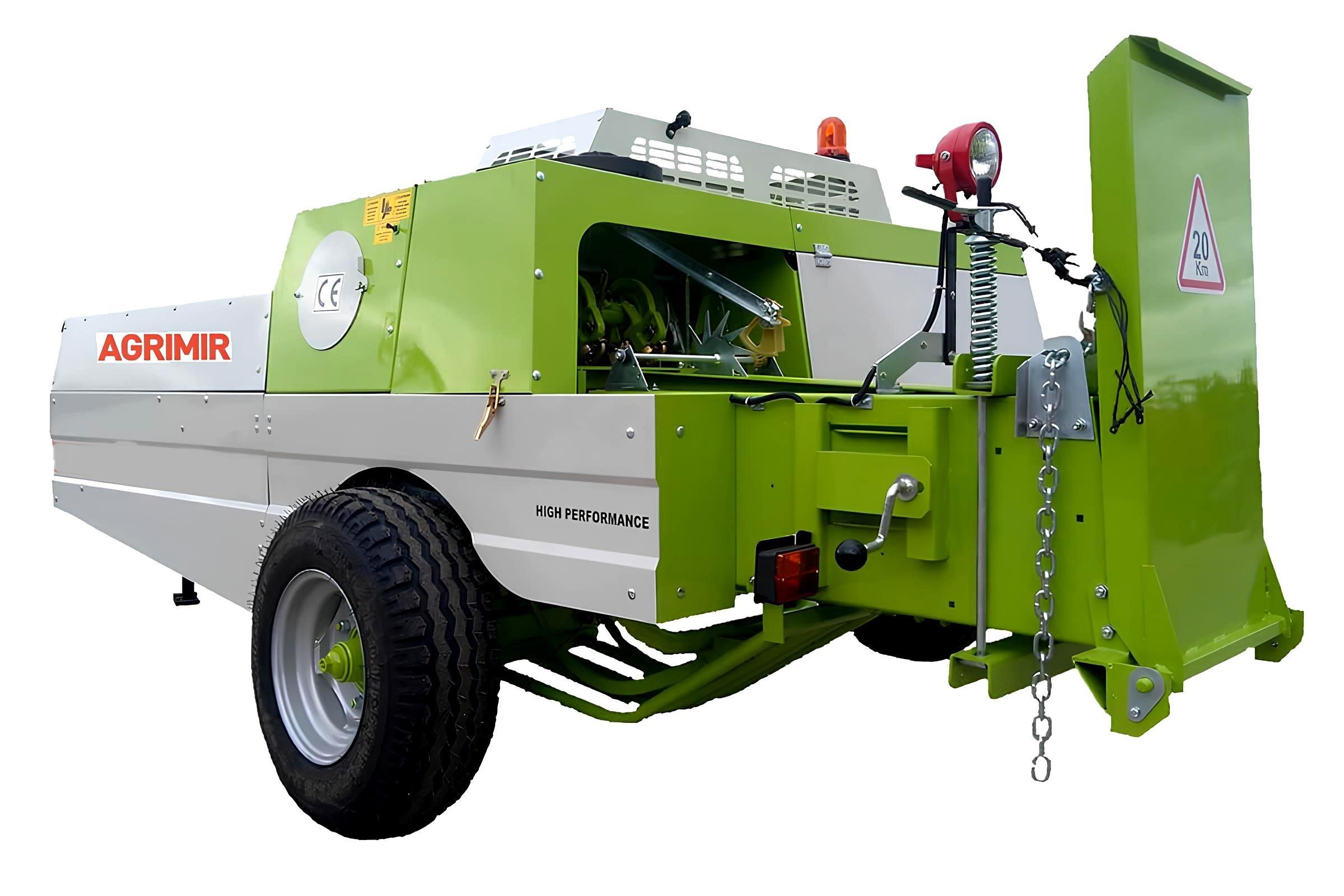

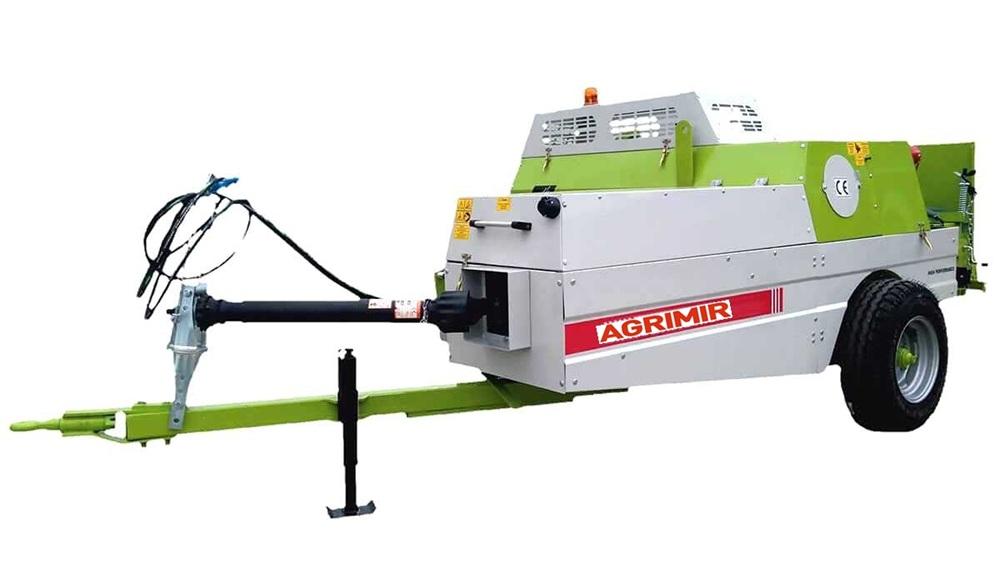

The Square Baler CLASS-R / CLASS-W pick up the barrel harvested hay, alfalfa, wheat, barley and other crops from the field and compress. It is very easy to store, carry and use of these bales.
They have a strong, durable, special gears, parts and fan system. The machine has a large fork with three prongs and is equipped with a quality chain, bearing, shaft, and gear system built to withstand tough working circumstances.
Shaft system connected directly to the transmission in order to minimize power loss.
Some Key Features:
Faster operation thanks to a specially designed shaft system
Binding system durable to hard working conditions
Fan system that removes foreign matter
|
Tecnical Features
|
Units
|
Models
|
|
CLASS-R
|
CLASS-W
|
|
Knotter Set
|
|
2 Rope
|
2 Wire
|
|
Working Width
|
cm
|
245
|
245
|
|
Transport Width
|
cm
|
245
|
245
|
|
Lenght
|
cm
|
554
|
554
|
|
Height
|
cm
|
186
|
186
|
|
Bale Size
|
cm
|
30x135
|
30x135
|
|
Bale Weight
|
kg
|
20-35
|
20-35
|
|
Piston Stroke
|
cm
|
72
|
72
|
|
Pick-up Width
|
cm
|
160
|
160
|
|
Tire Size
|
|
10.0 / 75 -15,3
225/75 R15
|
10.0 / 75 -15,3
225/75 R15
|
|
Working Capacity
|
bale/h
|
200-250
|
200-250
|
|
PTO
|
1/min.
|
540
|
540
|
|
Weight
|
kg
|
1830
|
1830
|
|
Tractor Power
|
hp
|
40-50
|
40-50
|
