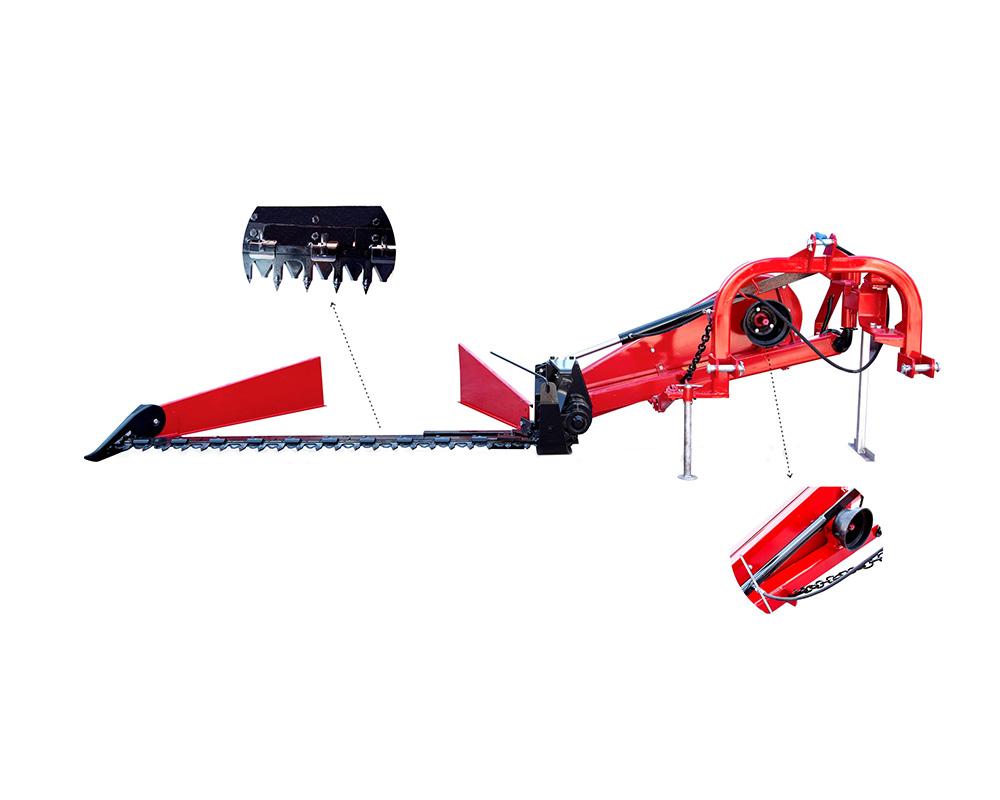

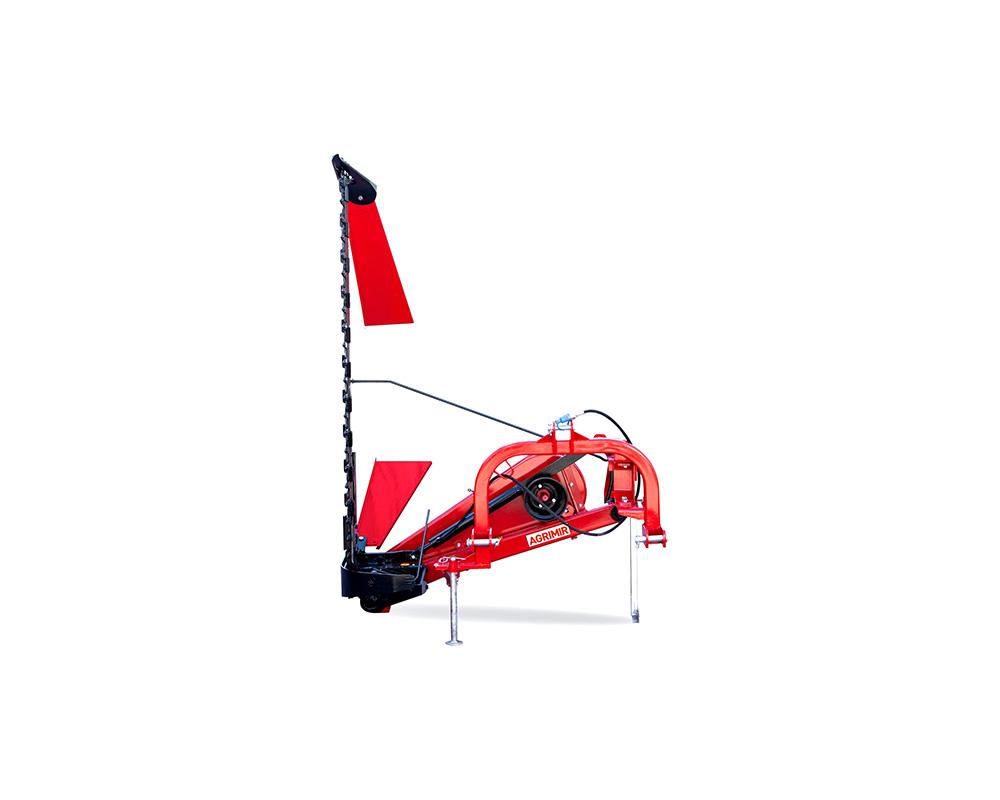

Sickle Bar Mower Double Bar Hydraulic

Double Bar Sickle Bar Mower is a th Double Bar Sickle Bar Mower is a three point linkage mower that attached to the lower and to the upper link bracket of the tractor. The blade is moved by three v-belts which will slide if a solid obstruction enters to the cutter bar causing the clogging of the blade. The crank shaft and blade are dynamically ballancedi husd ensuring a smooth and quiet running of the machine. The movement device permits the cutter bar to operate at wide slope angle. The cutter bar is a equipped with an automatic braker system which enables to rebound in case of coming across with an obstruction. Attaching of the machine to the tractor can be easly done by driving to the tractor to the back.

Tecnical Features Units Models
SBMD180
Cutting Width cm 180
Number of Blade pcs 24
Tractor Power hp 25
PTO rpm 540
Weight kg 250
