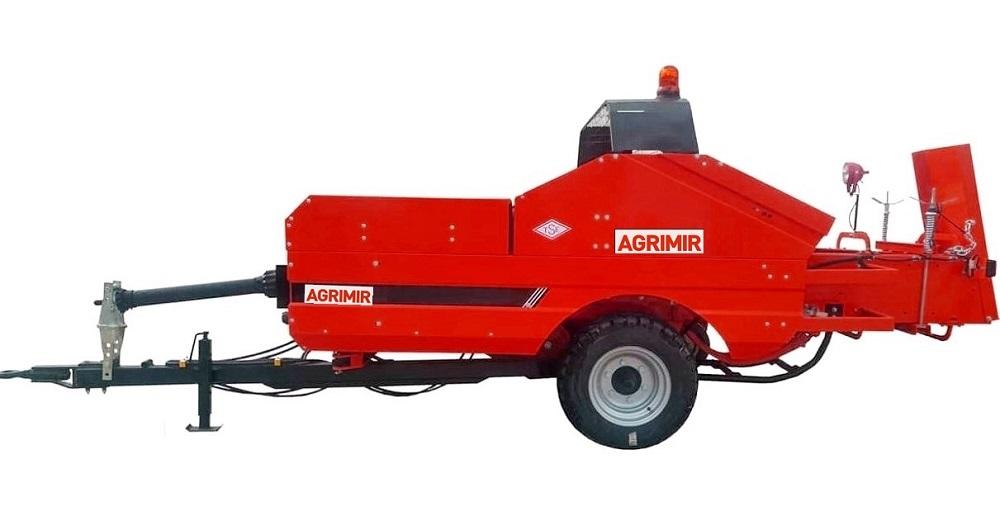

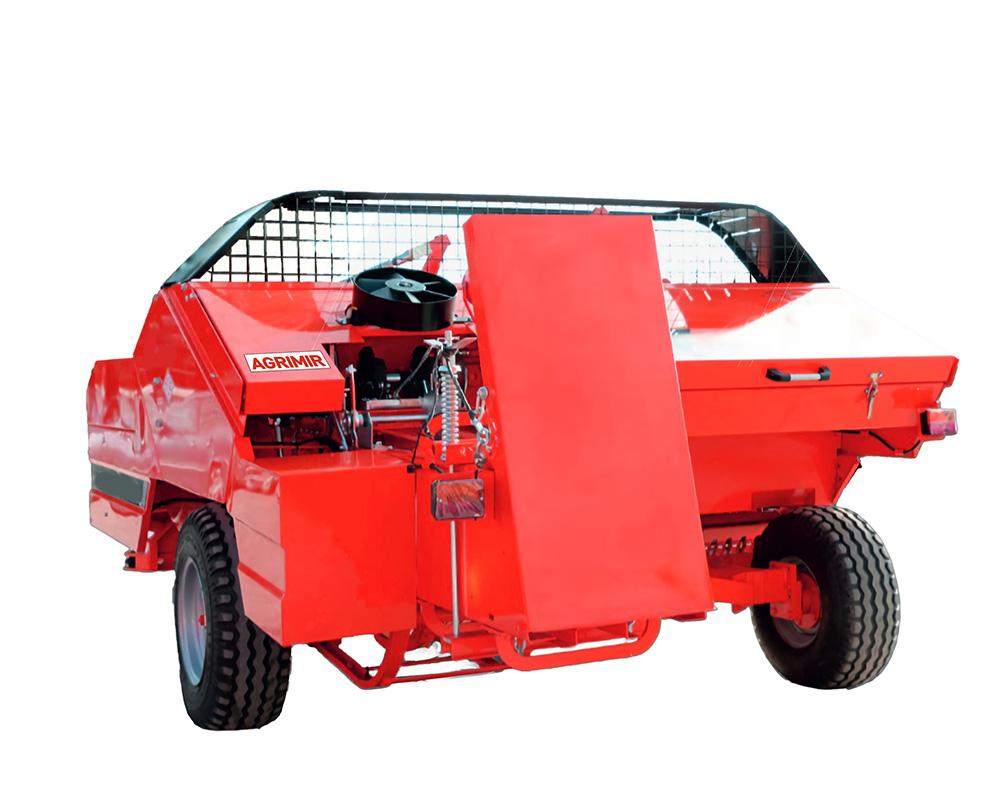

Square Baler

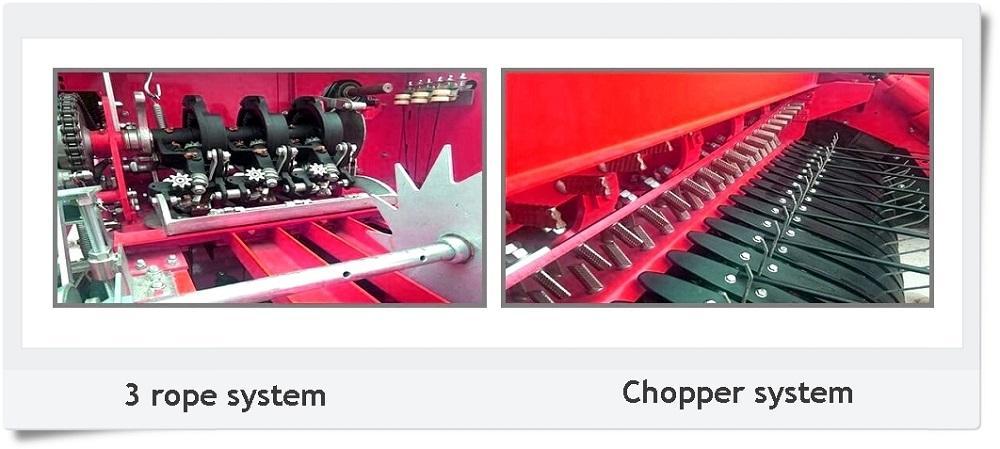

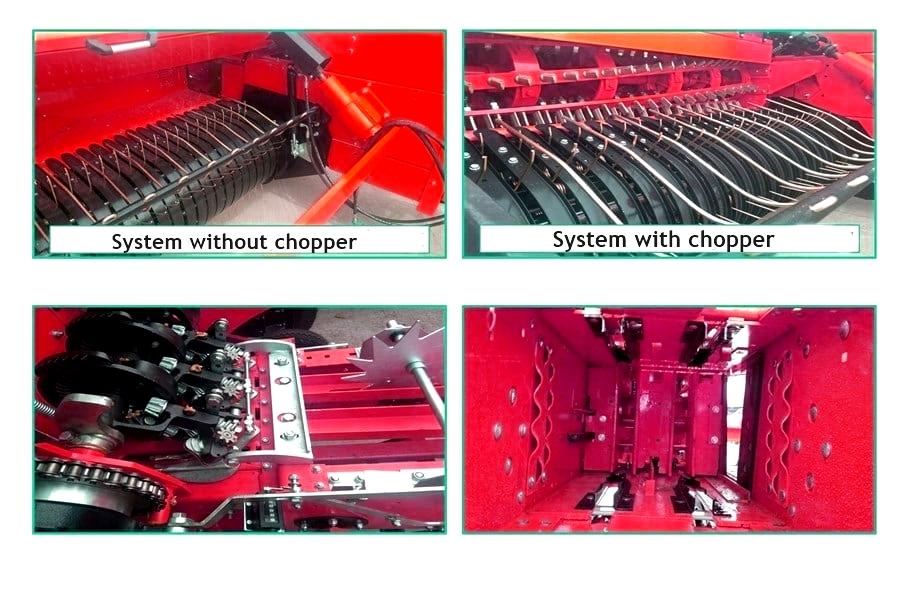

Square Baler machine picks up the barrel harvested hay, alfalfa, wheat, barley and other crops from the field and compress, then tie around the bale with a twine. Most common and useful machine is the one which makes a form of rectangular bale. It is very easy to store, carry and use of these bales. Power requirement is transmitted directly from PTO through a shaft. Power distribution system has been redesigned on Bale machine. Power supply is divided into 3 section where empowers to crop pick up system, hayfork loading system and tie mechanism, thus prevents the excessive force at certain points. This is a superior advantage compared to the others. With the new design bearings, chains and superior ad gears are working smoothly. A spring loaded tensioning system is used to increase the lifetime and performance of transfer chain. Pick-up table is equipped with a double acting hydraulic system to move up and down as easily to collect the crops from field. Due to over feeding or jam in front hayfork loading system, then security mechanism is automatically activated to prevent the pick-up system. Baler is equipped with a heavy duty towing bar and it is attached directly to the main axle which takes away the pressure affection onto the bale chamber. At the rear side there is an adjustable height support wheel.

Tecnical Features Units MODEL
Chamber size cm 36 x 46
Stroke length cm 73
Ram stroke stroke/ minute 92
Bale length cm 30 – 135
Bale weight kg 25 – 35
Work efficiency bale / day / pcs 2500-3000
Knotter pcs pcs 2-Twine
Pick-Up width (in to in) cm 163
Pick-Up width (out to out) cm 171
Number of teeth pcs 110
Tyres    10,0 / 75 – 15.3 Tubles 12 PLY
Weight of baler kg 2192
Length of baler (on the road) cm 553
Length of baler (on duty) cm 638
Width of baler cm 255
Height of baler cm 187
Tractor power hp 40-50
PTO rpm 540
Transmission   2 shaft
