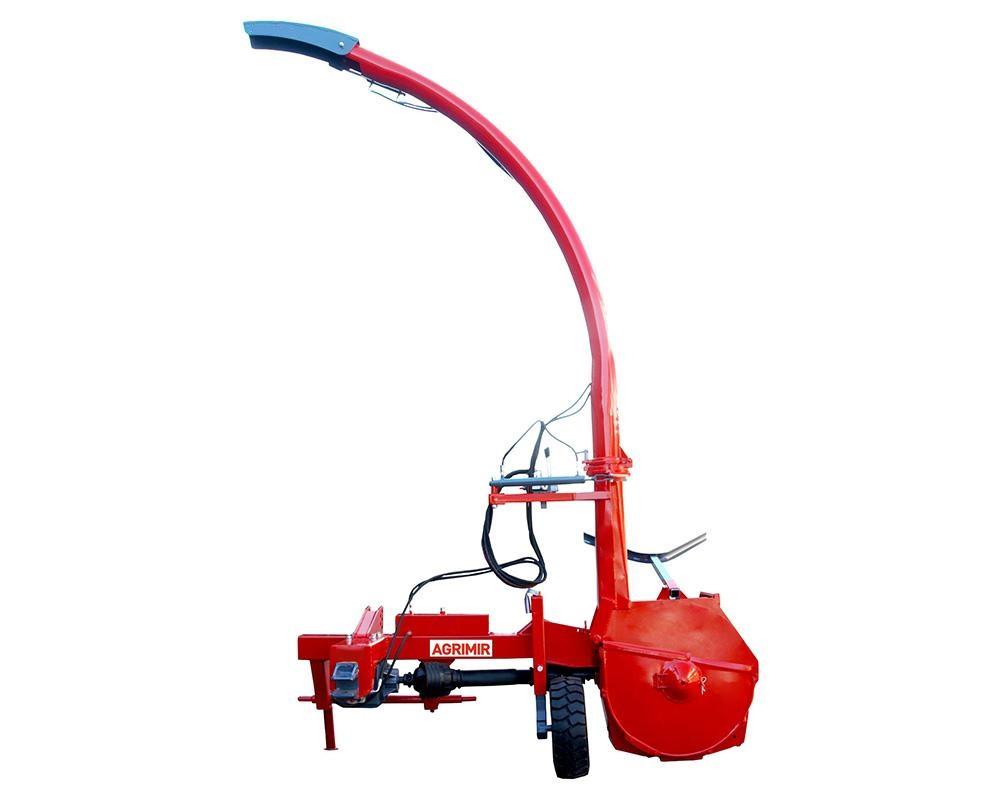

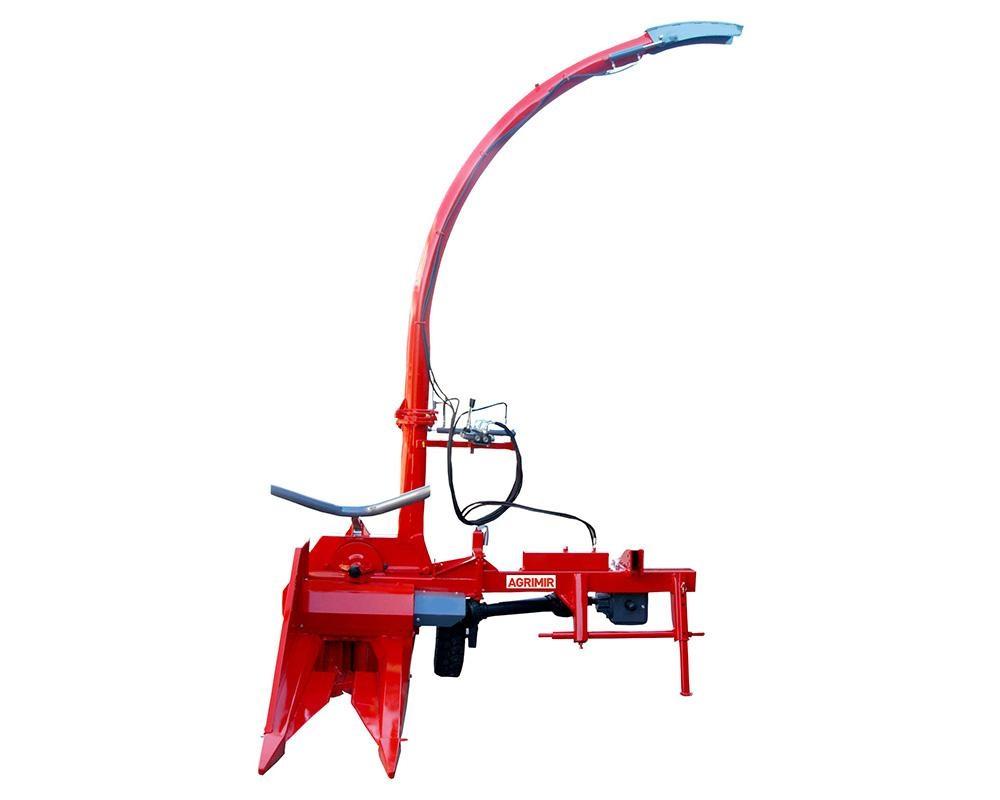

Corn Forage Harvester Single Row

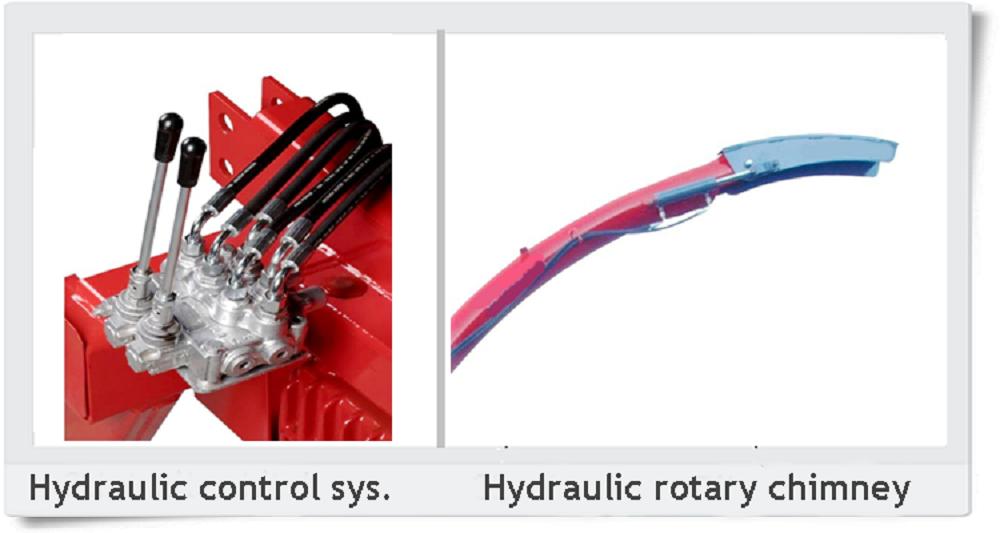

The hydraulically mounted type maize chooper is mounted to tractor's hydraulic lifting unit via universal three point linkage system. Therefore transportation to the field can be easily done.Maize Chopper is an economical machine powered directly by the tractor power-take-off shaft and it operates without straining the tractor with low power and low fuel depletion for long years without any problem.It is able to perform high-quality cutting even at the maximum work speed with its mowing discs that are made from special steel material with a high degree of hardness and that have the automatic grinding unit; in this way, the nutrients of the plants and the water content in the plant are preserved.A cutting wa plate may be placed inside the cutting mechanism in order to chop particularly dry corn particles. The silage length is determined with the help of the cutting plate that could be adjusted by means of a bolt. It blows the chopped material quickly from inside the discharge pipe towards the trailer due to its strong fan and blower wings on the fan. The discharge pipe can be directed with a remote control without tiring the user. Thanks to its foldable pipe, it easily passes even the lowest places. Mechanical components are protected against overload with the pin cutting safety device.

Tecnical Features Units Models
ACFH
Number of Row pcs 1
Total Length cm 250
Working Width cm 550-700
Total Width cm 230
Total Height cm 310
Number of Drum pcs 2
Number of Blade pcs 12
Chopped Material Size mm 3-5
Tire Size   16,5x6,5-8
Working Speed Km/h 8-10
Capacity Ton/h 20-25
Weight kg 600
PTO rpm 540
Tractor Power hp 55
