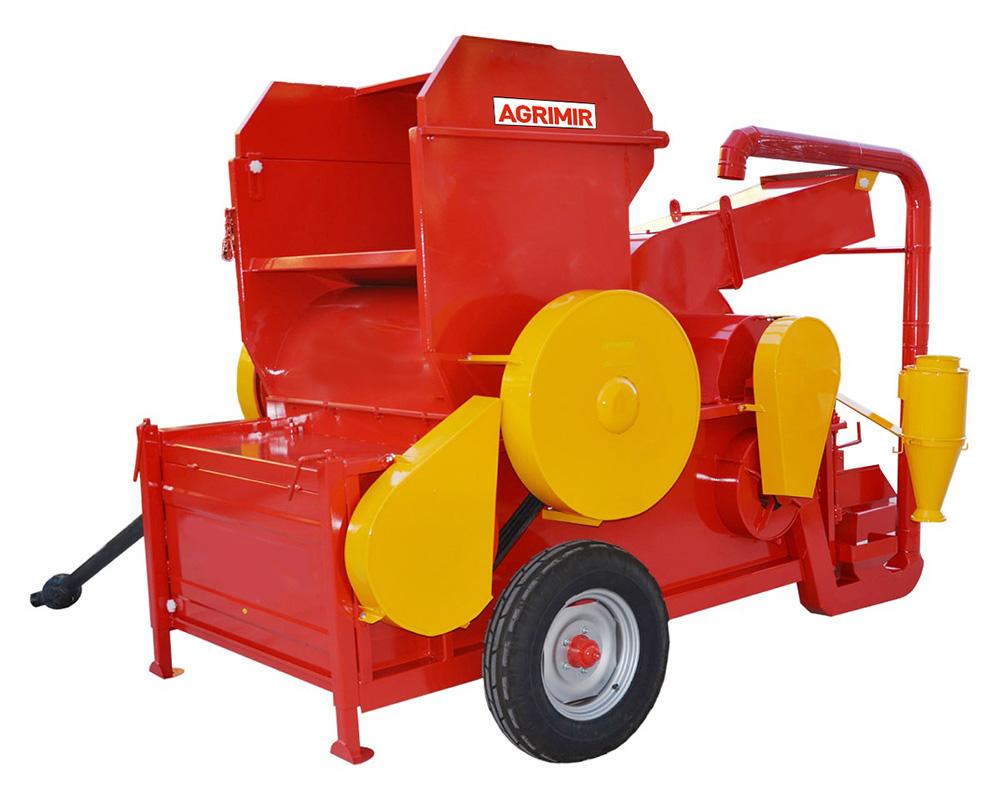

This th This threshing machine is shafted and bagged type. It threshings and extracts the crop out of the spike and sheath and breaks the stalks into straw, it also separates grain from straw and foreign materials with the aid of an aspirator. Apart from wheat, rye, oats, vetch, beans, cumin and other cereal varieties, with additional belt-pulley system and sieve variants chickpeas, beans, lentils, sorghum and similar plants can be blended by this machine. The necessary drive transmission for these processes can be obtained from tractor pulley by means of belt system or shaft through PTO. The other outstanding feature with our Threshing machine is to load the harvested grain and pulses in bags or featu on trailer by means of combined bagging system.
Tecnical Features |
Units |
Models |
ARMT |
Total Length |
cm |
375 |
Total Width |
cm |
225 |
Total Height |
cm |
230 |
Beater Width |
cm |
120 |
Number of Beater Blade |
pc |
44 |
PTO |
rpm |
540 |
Tire Size |
|
600x16 |
Weight |
kg |
1440 |
Power |
hp |
35 |
