This machine is ideal for inter-row cultivation of crops planted in rows such as vegetables, sugar beet, cotton, corn, tobacco, tomatoes, strawberries, and sunflower. It does not cause soil compaction in cultivated areas and can be equipped with fertilizer units to apply fertilizer simultaneously. It helps retain soil moisture and provides effective weed control. Additionally, during the second cultivation, it can be equipped with a hilling system (lister) to mound soil around the base of the plants, promoting faster and healthier growth.

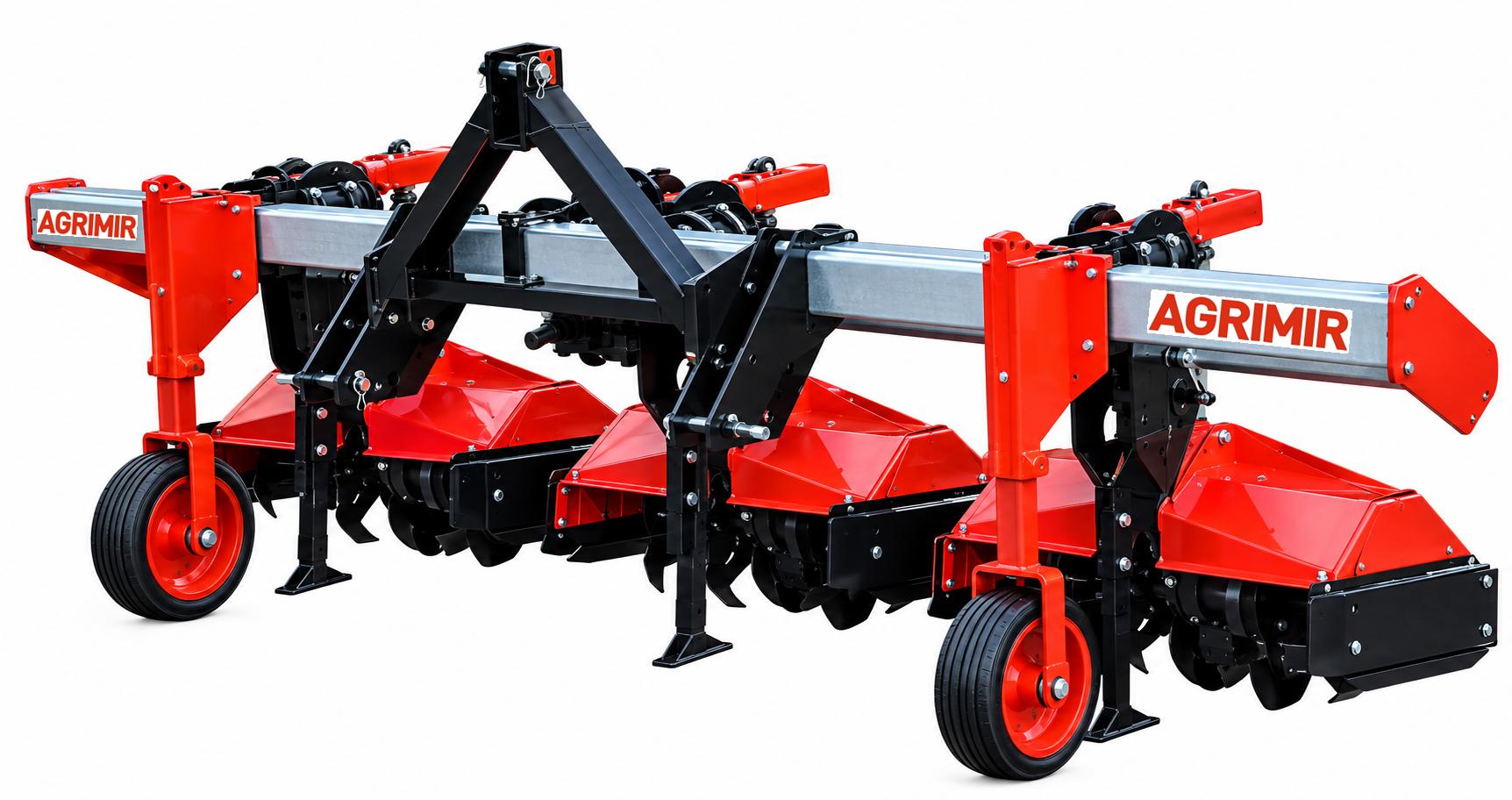

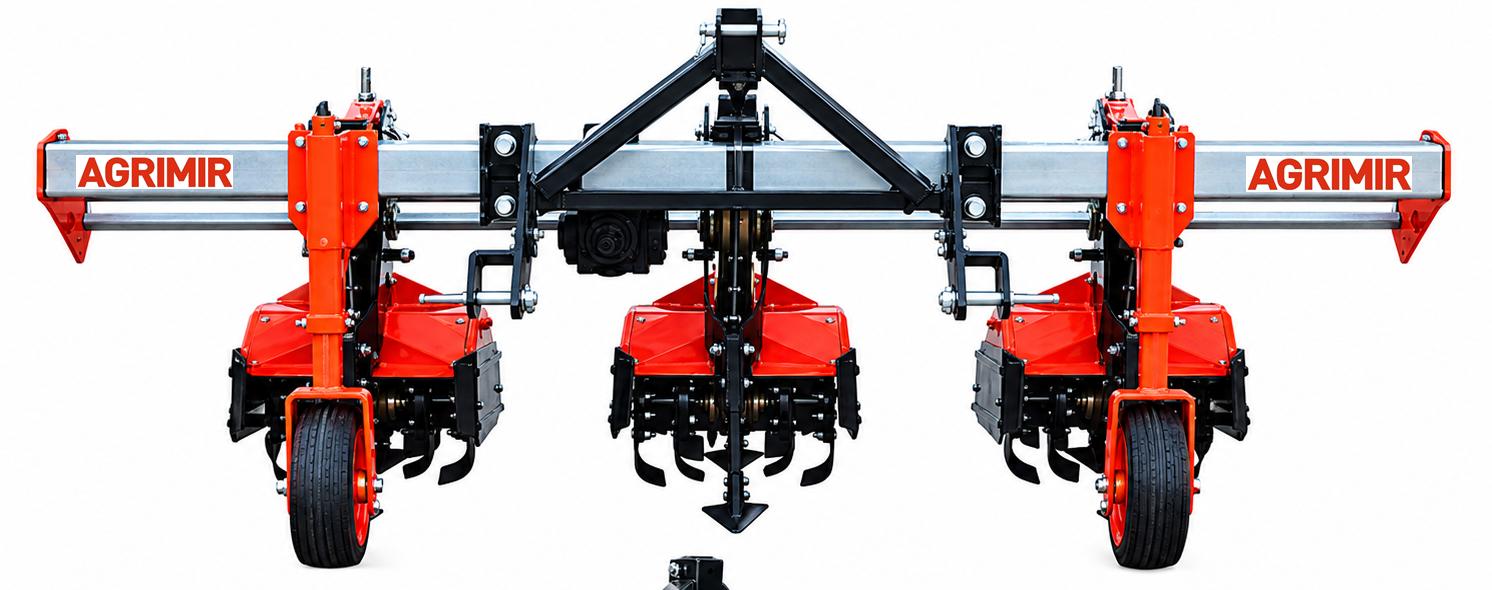

The Inter-Row Cultivator is a modern soil cultivation machine developed specifically for cultivating between rows and aerating the soil in crops planted with 70 cm row spacing. Thanks to its rotary working system, it prevents soil compaction on the surface, ensures proper soil aeration and creates an ideal environment for healthy plant development.

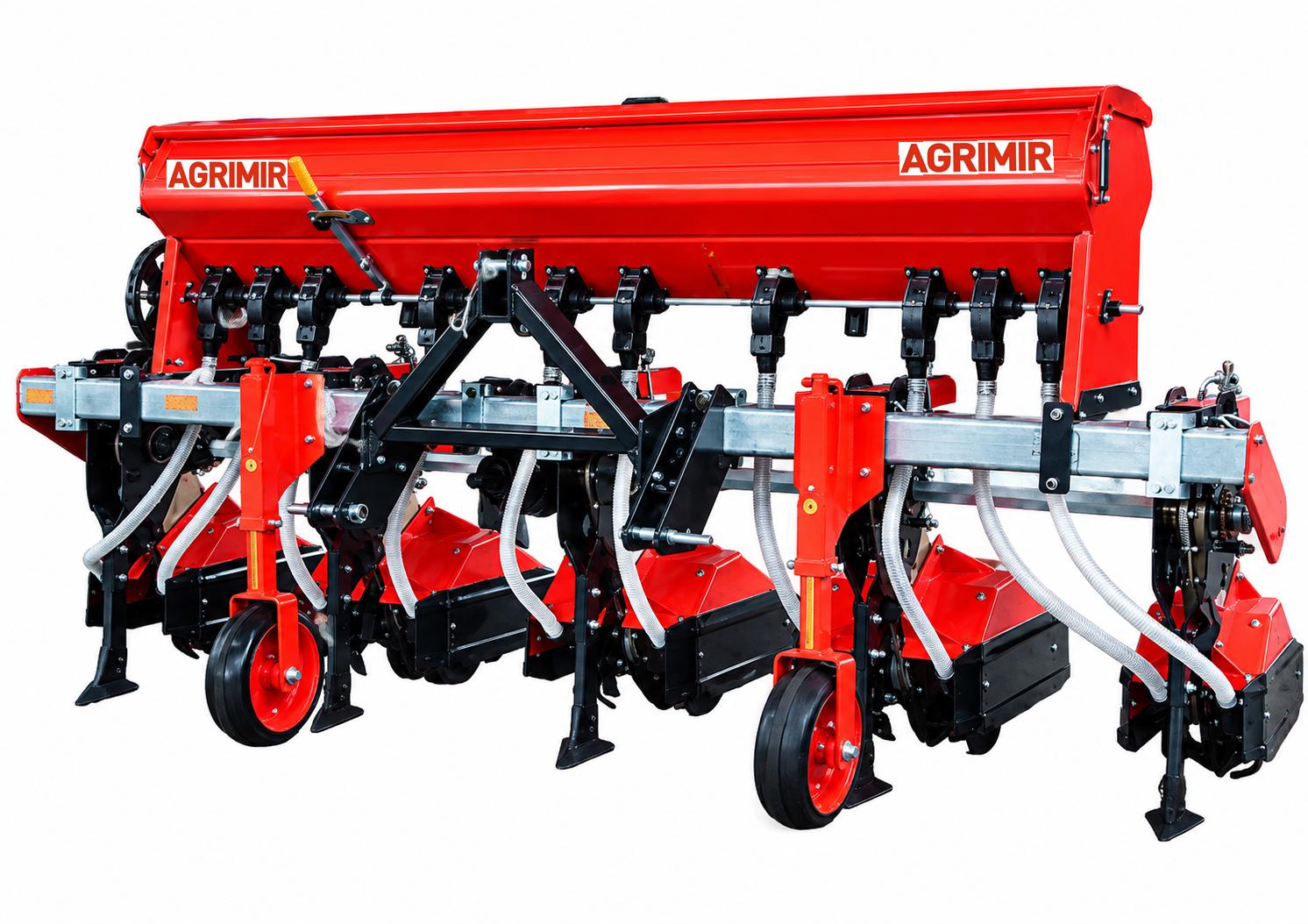

Optionally, a fertilizer unit can be installed on the machine, allowing fertilization to be carried out simultaneously during the cultivation process
The machine transmits the motion it receives from the tractor PTO (Power Take-Off) to the rotary blades, breaking and loosening the soil between the rows.
• The soil surface is broken and aerated
• Weeds are effectively removed
• Soil moisture is preserved
• Root development of plants is supported.
• PTO driven (cardan shaft) transmission system
• Three-point hitch connection
• Working configuration suitable for 70 cm row spacing
• Rotary soil cultivation system
• Ability to install fertilizer attachment
• Ridge forming unit (Lister system)
• Strong and durable chassis structure
• Vegetable production areas
• Sugar beet fields
• Cotton fields
• Corn production areas
• Tobacco cultivation
• Tomato and strawberry production areas
• Sunflower fields
ADVANTAGES
✔ Effective cultivation between rows
✔ Strong weed control performance
✔ Prevents soil compaction formation
✔ Helps preserve soil moisture
✔ Possibility of fertilizing during cultivation
✔ Supports plant development with ridge forming system
✔ Provides healthier and more productive crop cultivation
|
Tecnical Features
|
Units
|
Models
|
|
AIRC3
|
AIRC5
|
AIRC7
|
|
Number of Furrows
|
pcs
|
3
|
5
|
7
|
|
Working Width
|
mm
|
1775
|
3175
|
4350
|
|
Working Depth
|
cm
|
10
|
10
|
10
|
|
Total Width
|
cm
|
200
|
322
|
474
|
|
Total Length
|
cm
|
123
|
123
|
123
|
|
Height With/Without Fertilizer Tank
|
cm
|
152/110
|
152/110
|
152/110
|
|
Distance Between Units (for Maize)
|
cm
|
70
|
70
|
70
|
|
Number of Blades
|
pcs
|
48
|
90
|
96
|
|
Weight With/Without Fertilizer Tank
|
kg
|
590/480
|
870/720
|
1750/1490
|
|
PTO
|
rpm
|
540
|
540
|
540
|
|
Tractor Power
|
hp
|
40-50
|
60-80
|
90-110
|
