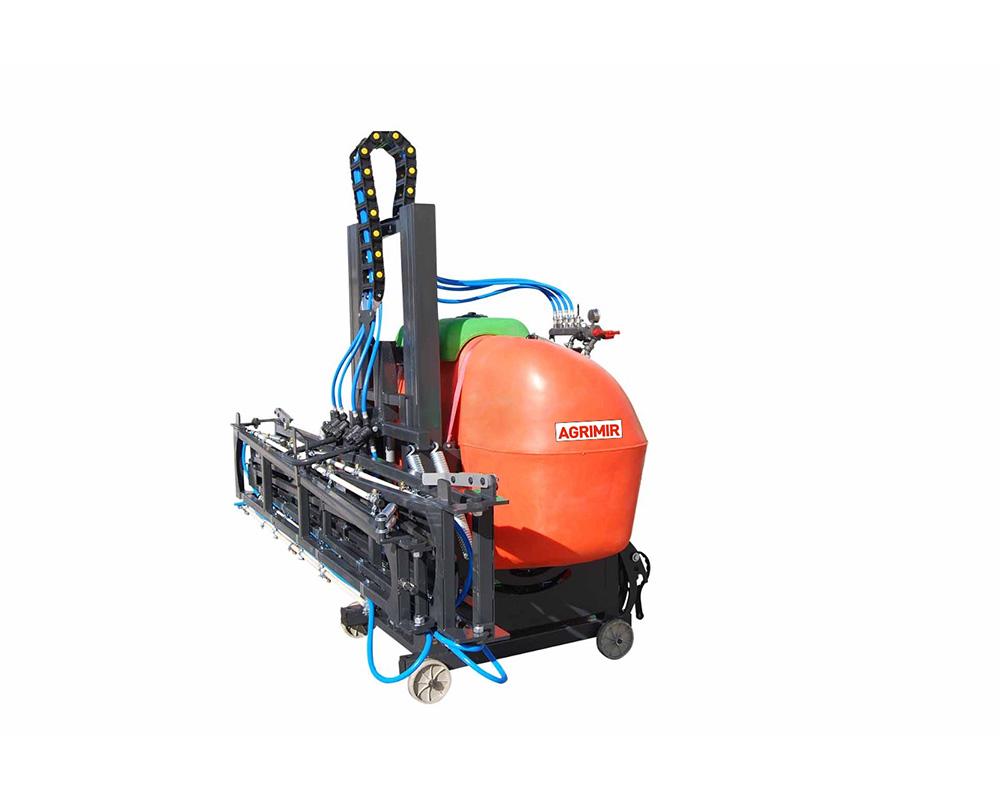

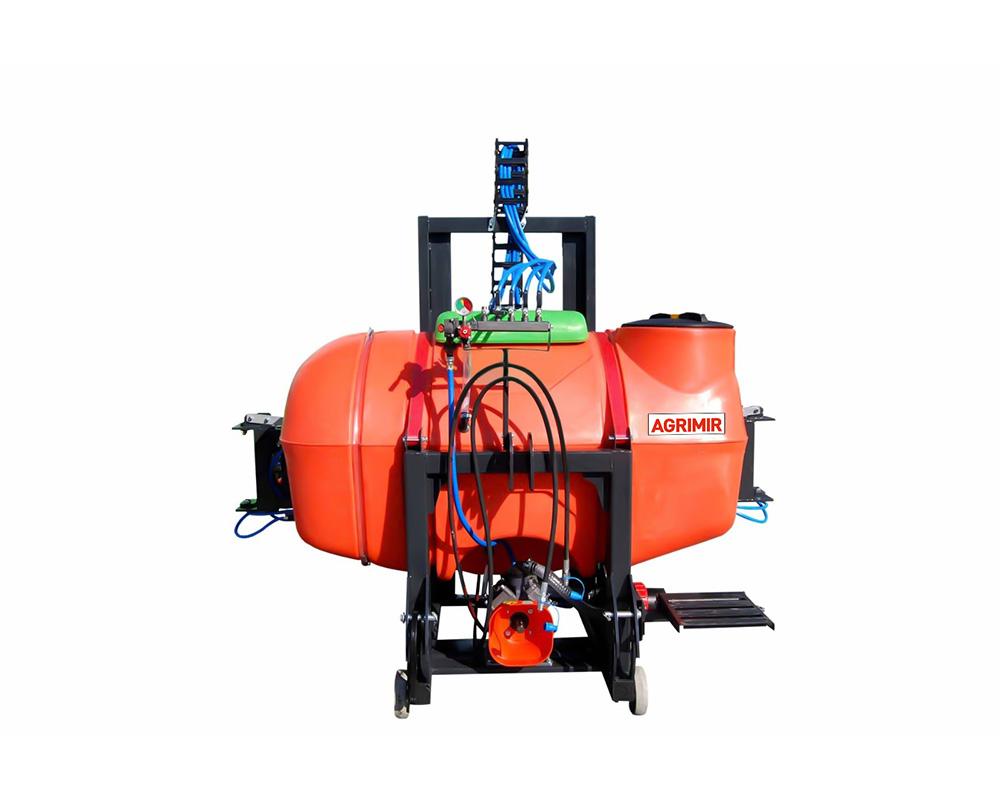

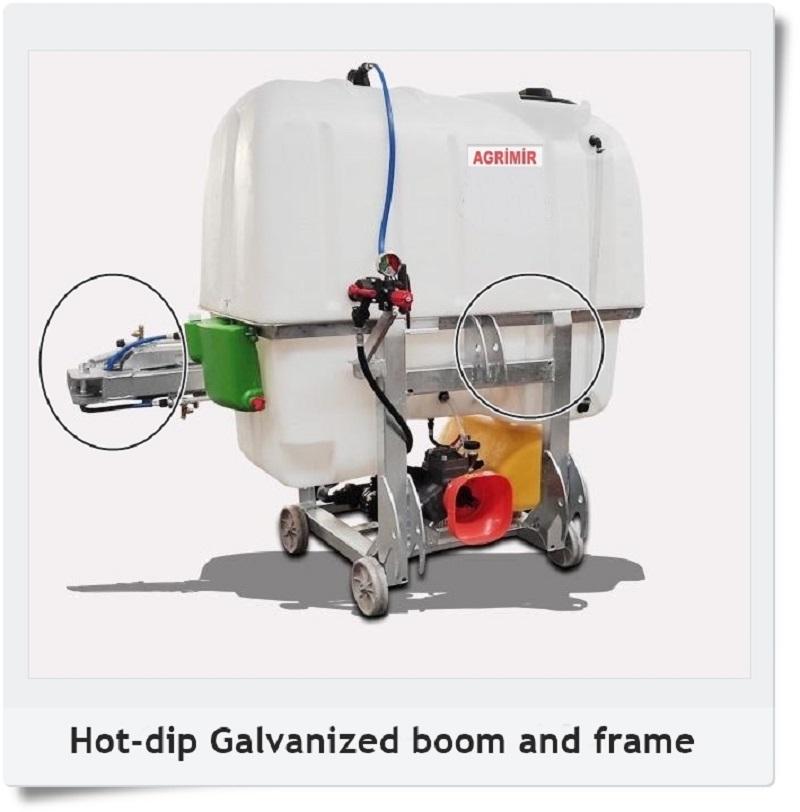

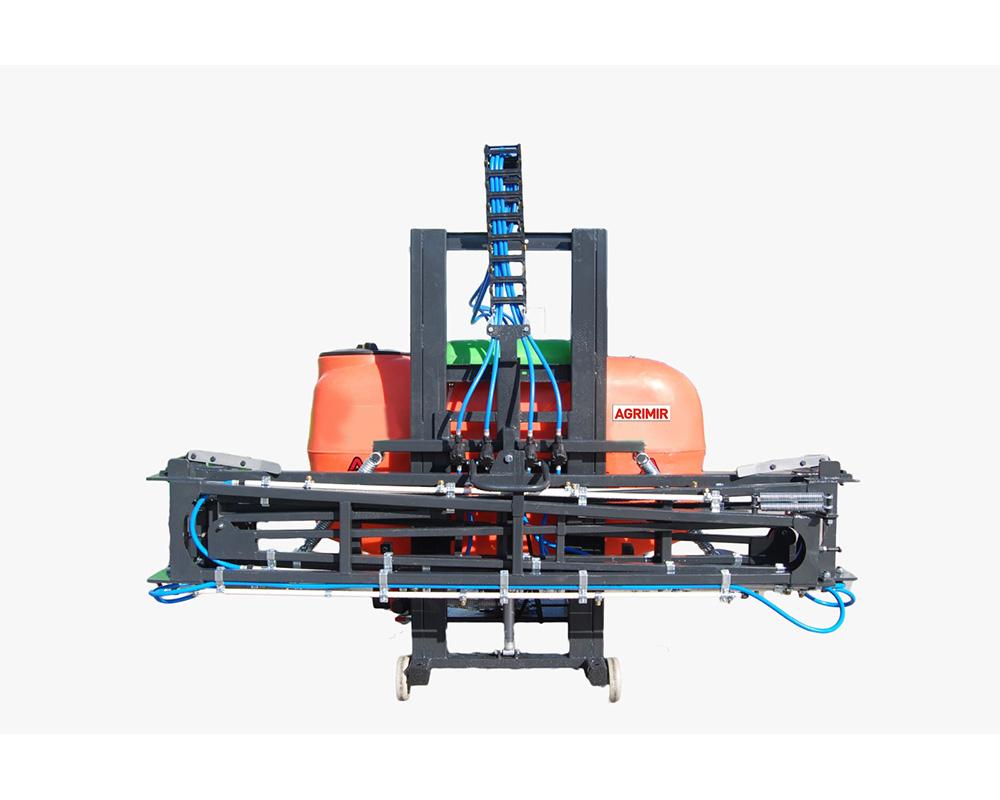

Mounted Field Sprayer Semi Hydraulic Heavy Type

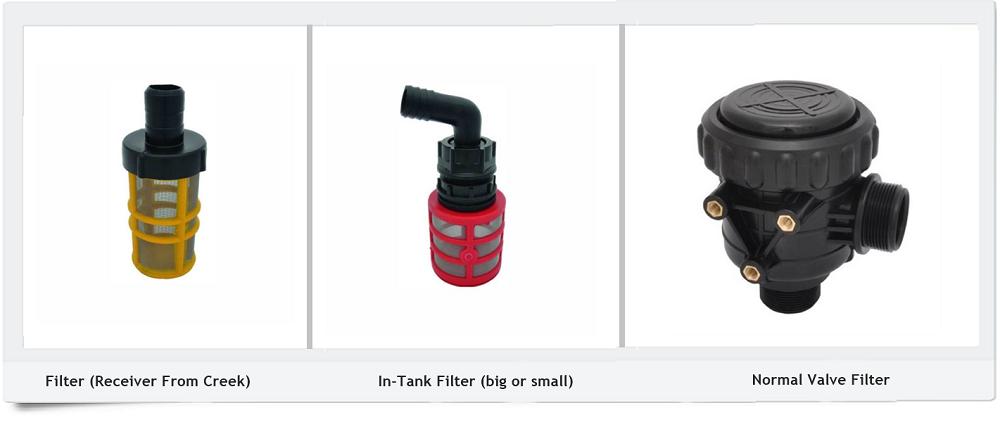

Tractor mounted sprayers by PTO via shaft developed to meet the different requirements of plant protection treatments. Sprayers extremely versatile and suitable, according to the applications, to operate in open-field cultivations, sprayer and distribute herbicides among the plant rows the availability of several mechanical and hydraulic spraying booms together with different equipments and option allow our sprayers to suit the requirement of the single users in the specific treatments. Easily mountable on 3-pt of tractors, Level indicator on the tank, Polythene tanks, Easily cleanable water filter, Booms are removable for loading and transportation, Easily adjustable and user friendly, High ar efficiency, Clean water tank, Pressure regulation.

Tecnical Features Units Models
MFSH 800 MFSH 1000 MFSH 1200
Tank Capacity lt. 800 1000 1200
Pump Type   4-Membrane 4-Membrane 4-Membrane

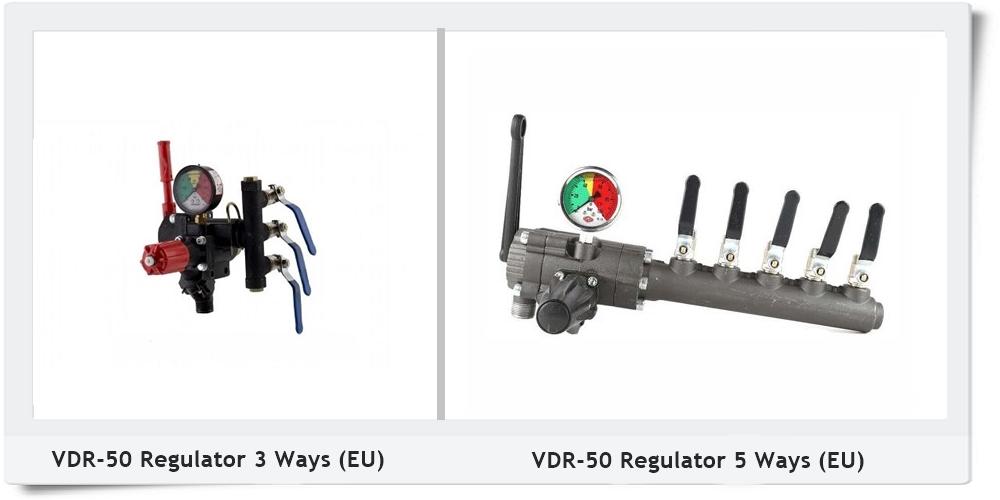

Control Panel   VDR.50 VDR.50 VDR.50
Pressure bar 50 50 50
PTO rpm 540 540 540

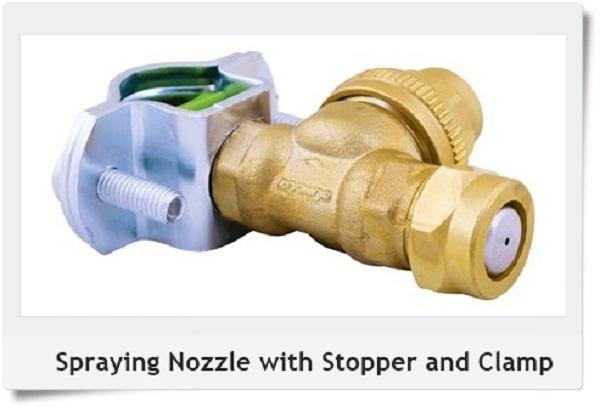

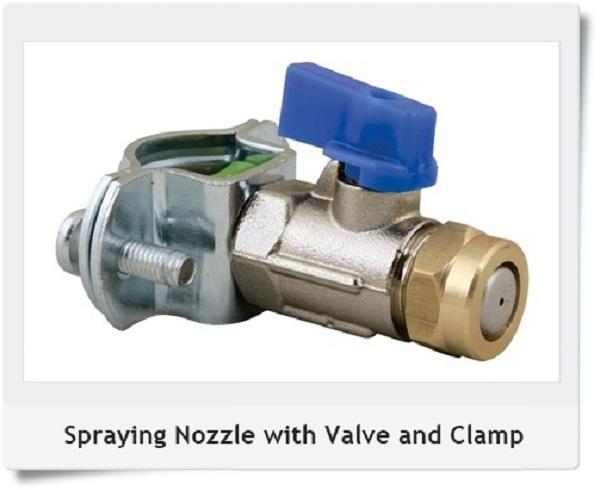

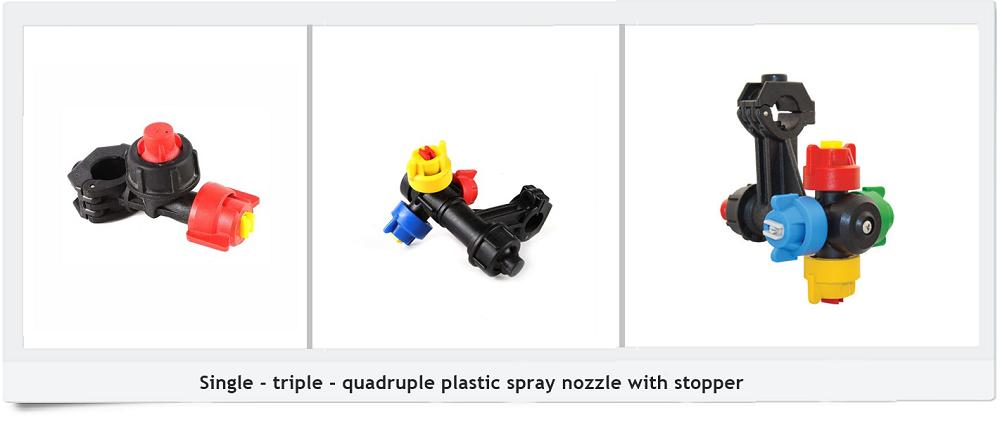

Nozzle Pcs pcs 32 32 32
Length cm 280 280 280
Width cm 165 165 165
Height cm 220 220 220

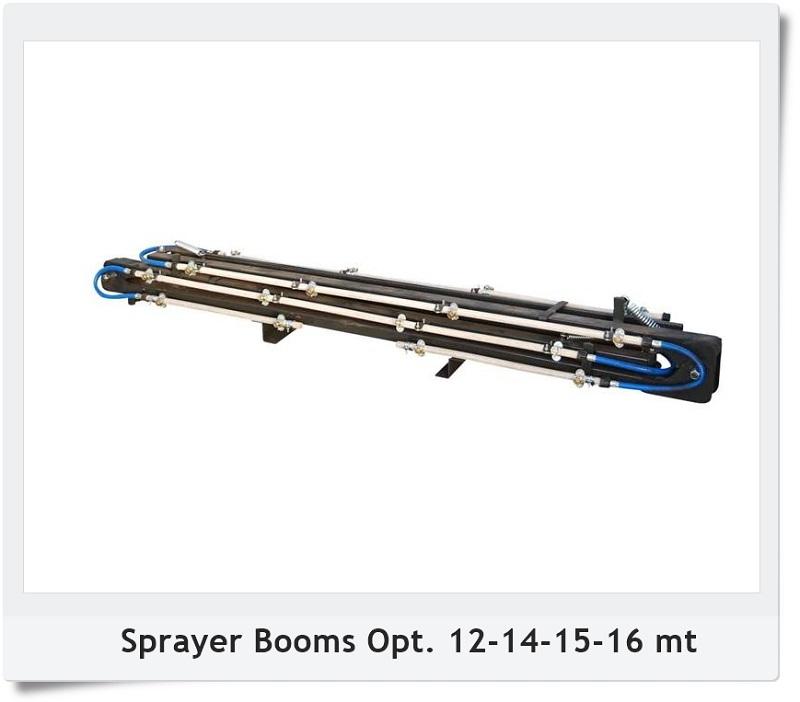

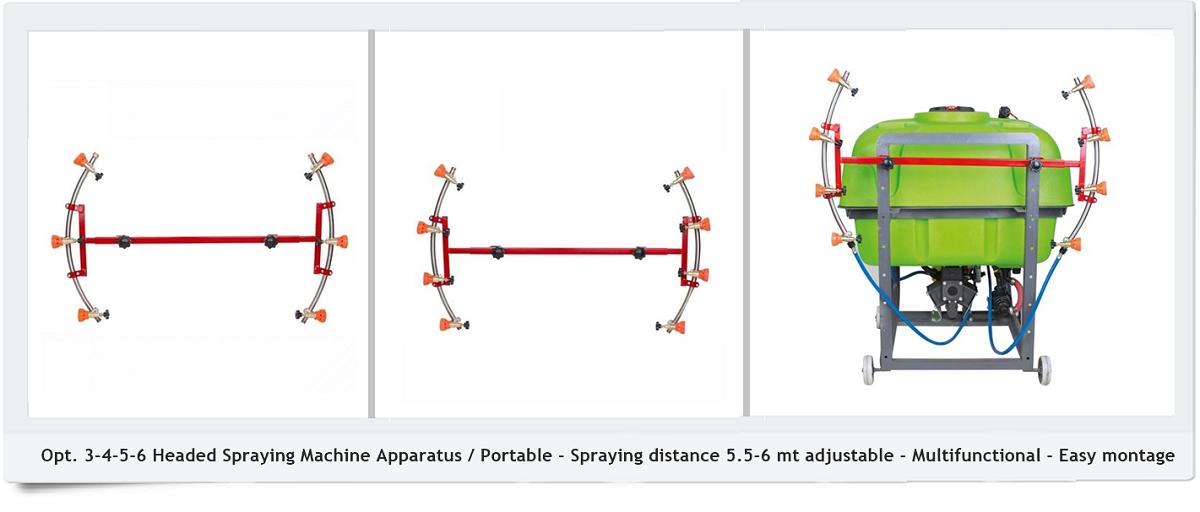

Boom Length m 16 16 16
Boom Height Ctrl.   Hydraulic Hydraulic Hydraulic
Weight kg 560 610 650
