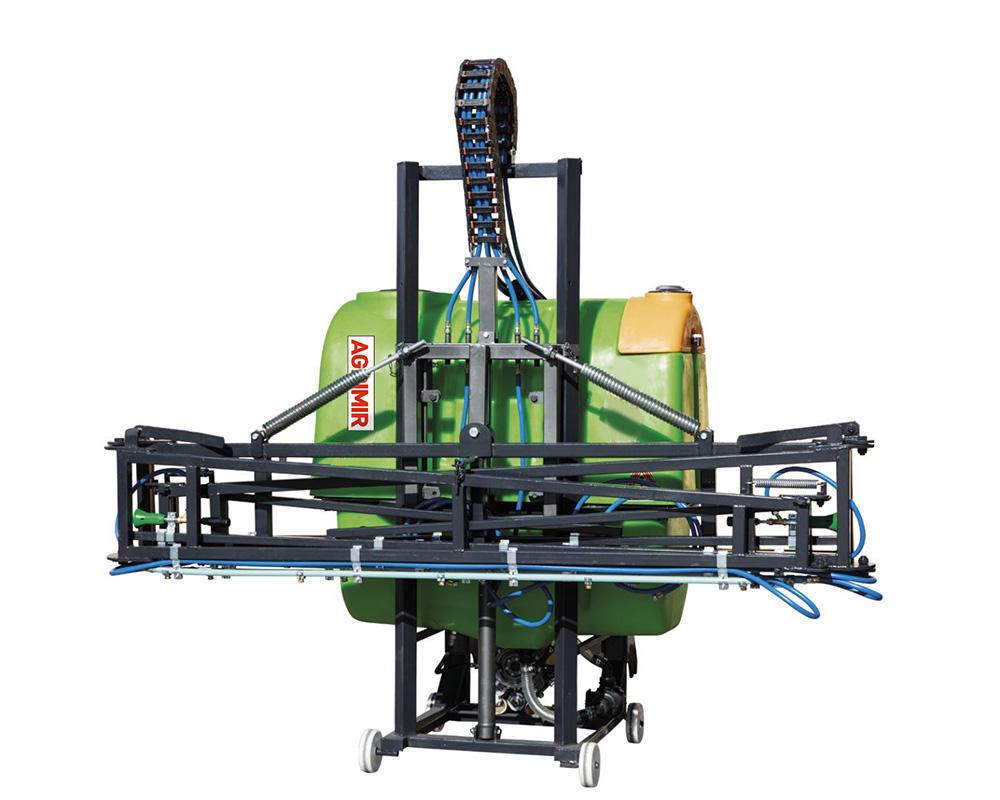

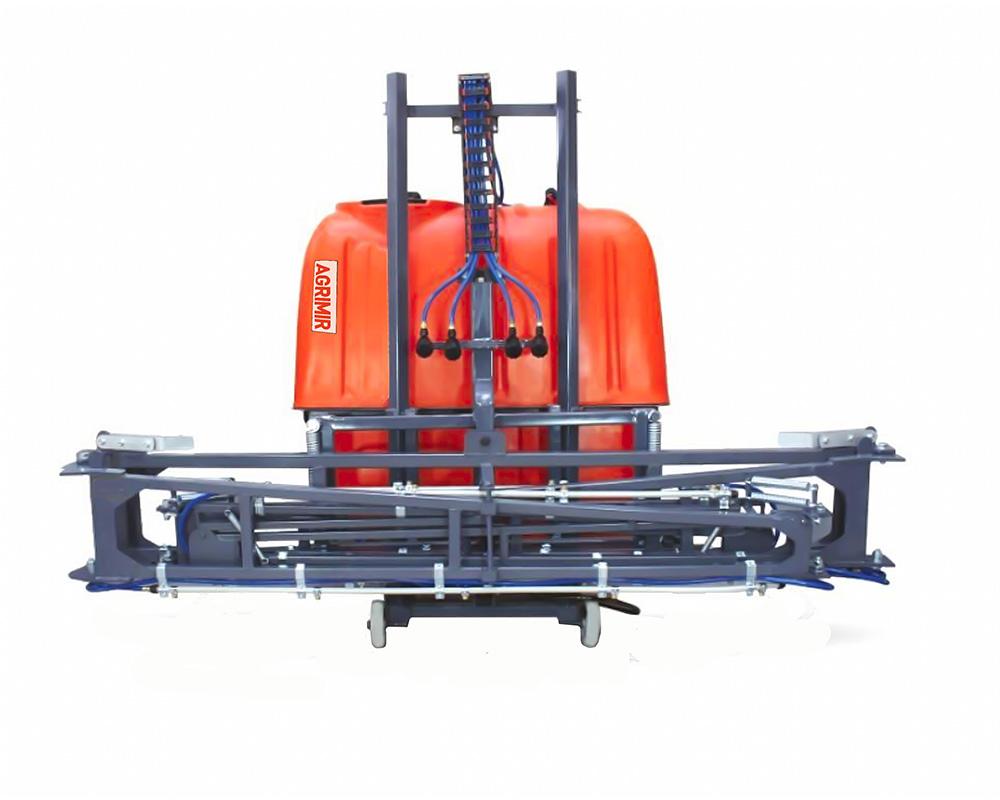

Mounted Field Sprayer Semi Hydraulic

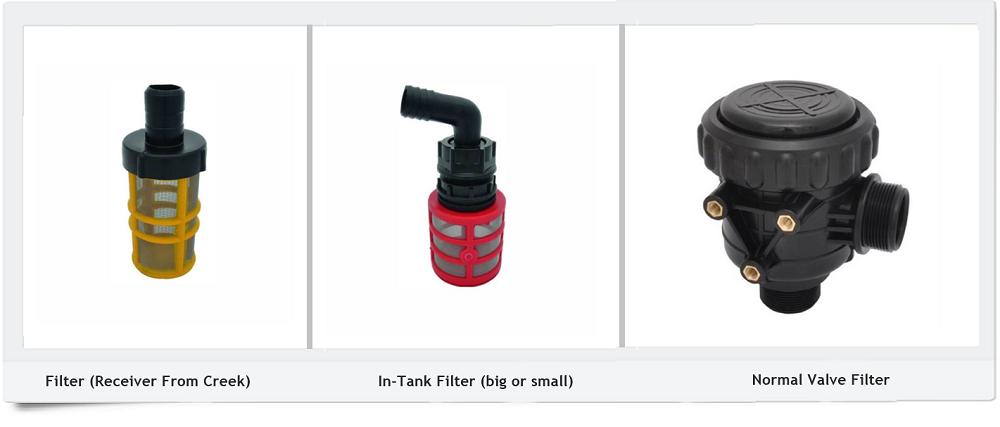

Tractor mounted sprayers by PTO via shaft developed to meet the different requirements of plant protection treatments. Sprayers extremely versatile and suitable, according to the applications, to operate in open-field cultivations, sprayer and distribute herbicides among the plant rows the availability of several mechanical and hydraulic spraying booms together with different equipments and option allow our sprayers to suit the requirement of the single users in the specific treatments. Easily mountable on 3-pt of tractors. Level indicator on the tank, Polythene tanks, Easily cleanable water filter, Booms are removable for loading and transportation, Easily adjustable and user friendly, High ar efficiency, Clean water tank, Pressure regulation.

Tecnical Features Units Models
MFSS 600 MFSS 800 MFSS 1000
Tank Capacity lt. 600 800 1000
Pump Type   4-Membrane 4-Membrane 4-Membrane

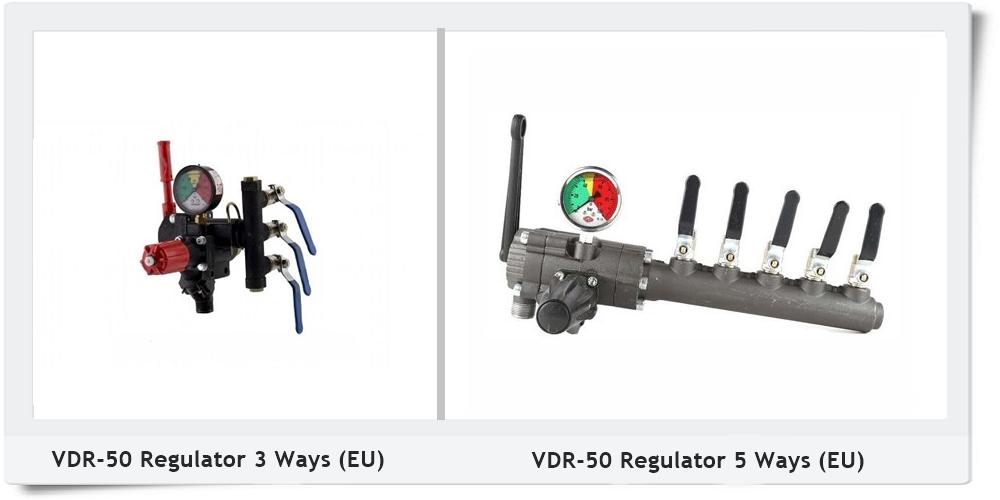

Control Panel   VDR.50 VDR.50 VDR.50
Pressure bar 50 50 50
PTO rpm 540 540 540

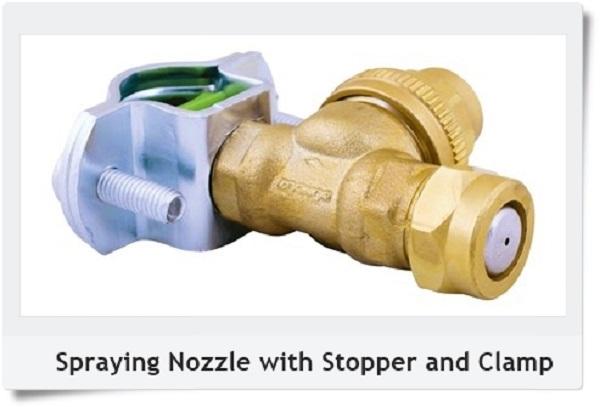

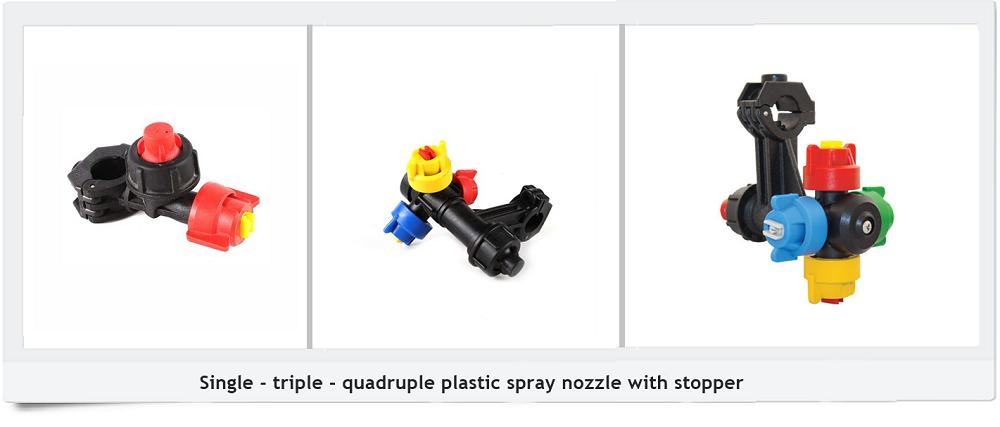

Nozzle Pcs pcs 24 28 32
Length cm 140 158 165
Width cm 77 80 80
Height cm 185 185 188

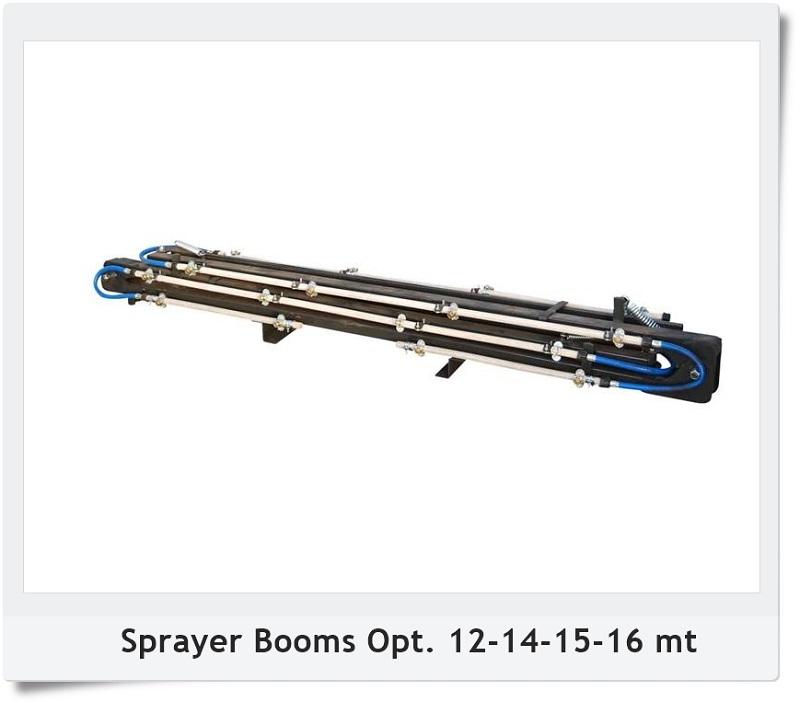

Boom Length m 12 14 16
Boom Open/Close   Manual Manual Manual
Boom Height Ctrl.   Hydraulic Hydraulic Hydraulic
Weight kg 335 375 400
