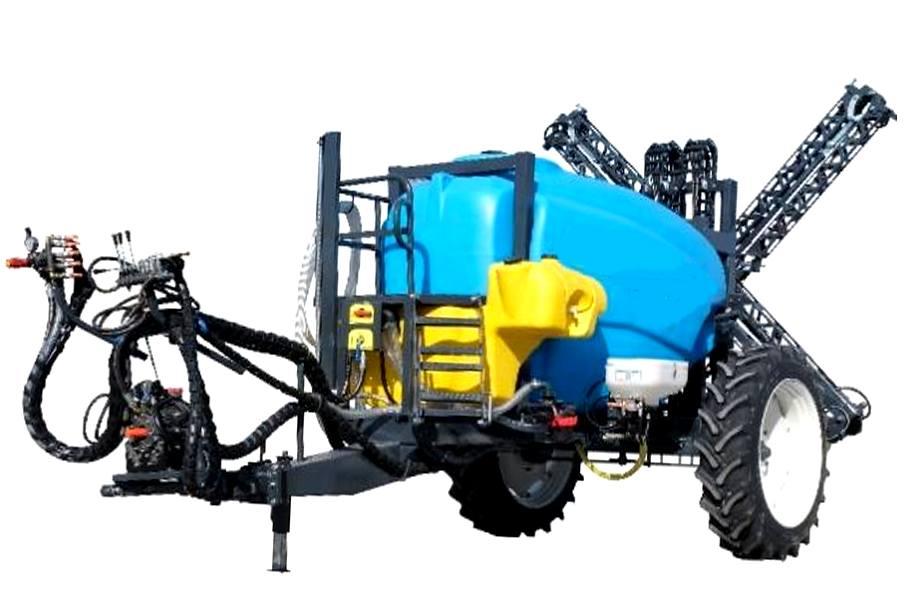

The high chassis field sp The high chassis field sprayer models which are produced as standard with 2000 and 3000 lt tanks, can be equipped with optional features according to needs and can be used easily on all kinds of rough terrain with their high wheels and ergonomic chassis. Attaching to the tractor is very easy due to its adjustable frame depth. These series are optimum for plant protection process such as herbicide, perticide, fungicide etc. Also for the sprayers, hoses and spray guns are attachable. They are offered to our customers with16 or 18 mt mechanical or hydraulic spraying boom.
| Tecnical Features |
Units |
Models |
|
| HTFS 2000 |
HTFS 3000 |
| Tank Capacity |
lt. |
2000 |
3000 |
| Pump Type |
|
4-Membrane |
4-Membrane |
| Control Panel |
|
VDR.50 |
VDR.50 |
| Pressure |
bar |
50 |
50 |
| PTO |
rpm |
540 |
540 |
| Nozzle Pcs |
pcs |
32 |
32 |
| Length |
cm |
370 |
400 |
| Width |
cm |
275 |
300 |
| Height |
cm |
238 |
238 |
| Boom Length |
m |
16 |
16 |
| Boom Height Ctrl. |
|
Hydraulic |
Hydraulic |
| Weight |
kg |
810 |
915 |
