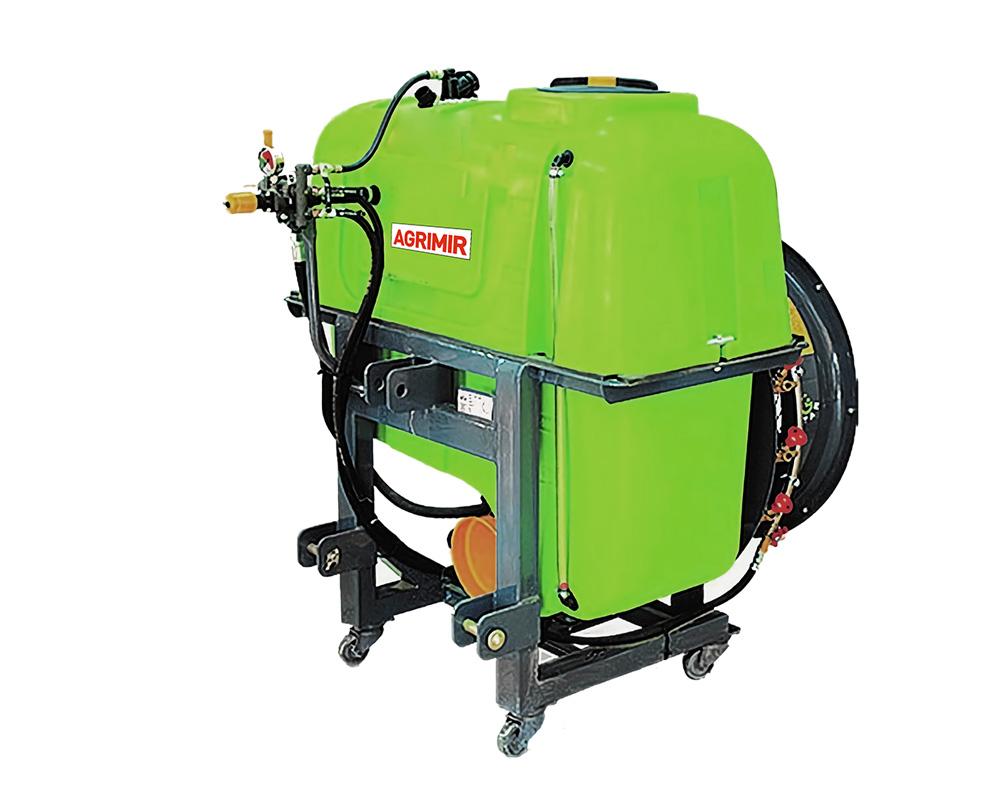

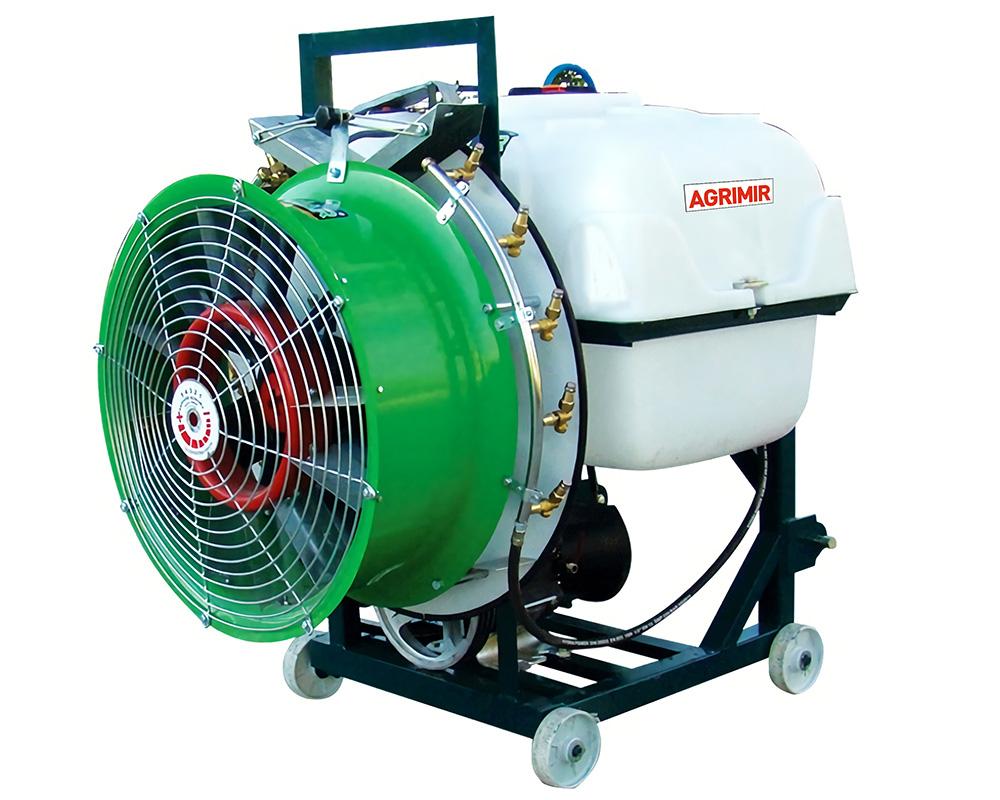

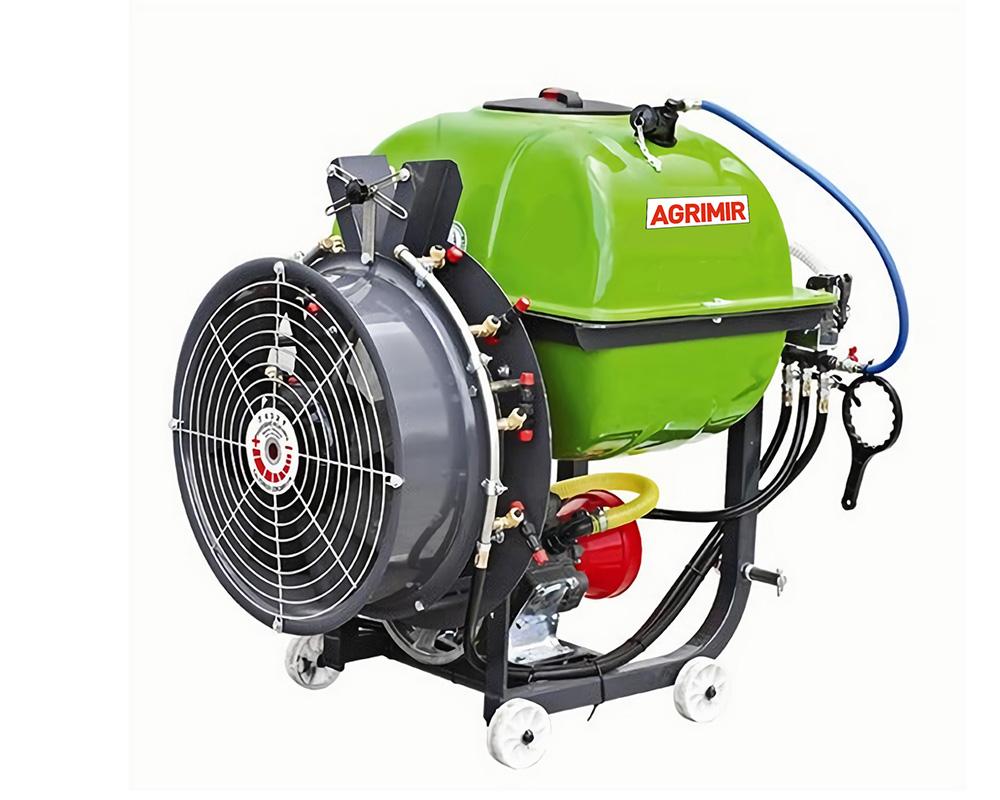

Mounted Turbo Atomizer

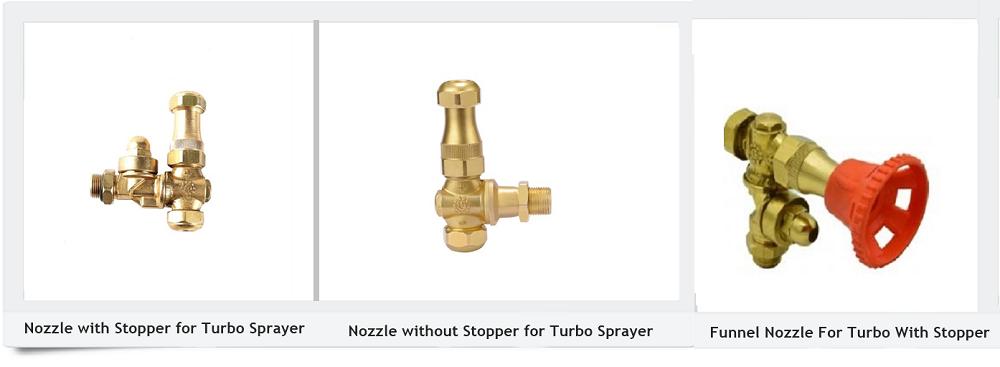

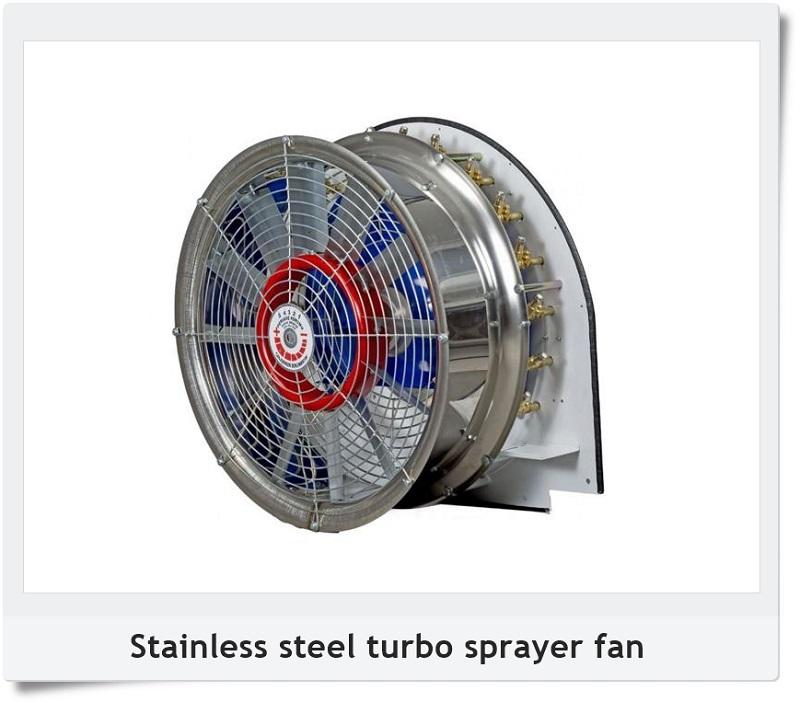

Turbo sprayers are used for vineyards, orchards and gardens. They are tractor mounted on 3-pt hitch by PTO. Strengthened Fiberglas or Polyethylene depot options. Pump are operated by power takeoff from tractor conveys pressuring chemical liquid to nozzles on fan. Fan is also operated with power take off and it sends pressured air out. Pressured chemical liquid is sprayed by adjustable nozzles around the fan by air circulation and any kind of tree can be disinfected. Fans are operated by two speed transmission. With separator on the fan, the rotation of the impeller can be prevented. By setting the angle and direction or by changing the plaque the nozzle on the fan, spraying distance and amount can be adjusted. By setting the direction of the fan, sp propeller fan, the air flow can be controlled. Using distributor valve on the regulator right, left or spraying is done in both directions. Turbo fan delivers an average shot distance. Easily cleanable water fitler, Easily adjustable and usage, High efficiency, Pressure regulation, Level indicator on the tank, Clean water tank.

Tecnical Features Units Models
MTA 200 MTA 300 MTA 400 MTA 600 MTA 800
Tank Capacity lt. 200 300 400 600 800
Pump Type   3-Membrane 3-Membrane 4-Membrane 4-Membrane 4-Membrane
Control Panel   Latch Latch VDR.50 VDR.50 VDR.50
PTO rpm 540 540 540 540 540
Pressure bar 50 50 50 50 50
Power Transfer   V-Belt or Gearbox
Nozzle Pcs pcs 8 8 10 10 10
Fan Size cm 60 60 75 75 75
Air Flow Rate (m3/h) 54000 54000 54000 54000 54000
Length cm 150 150 150 150 150
Width cm 105 110 120 140 150
Height cm 145 150 155 160 165
Weight kg 230 240 245 255 270
