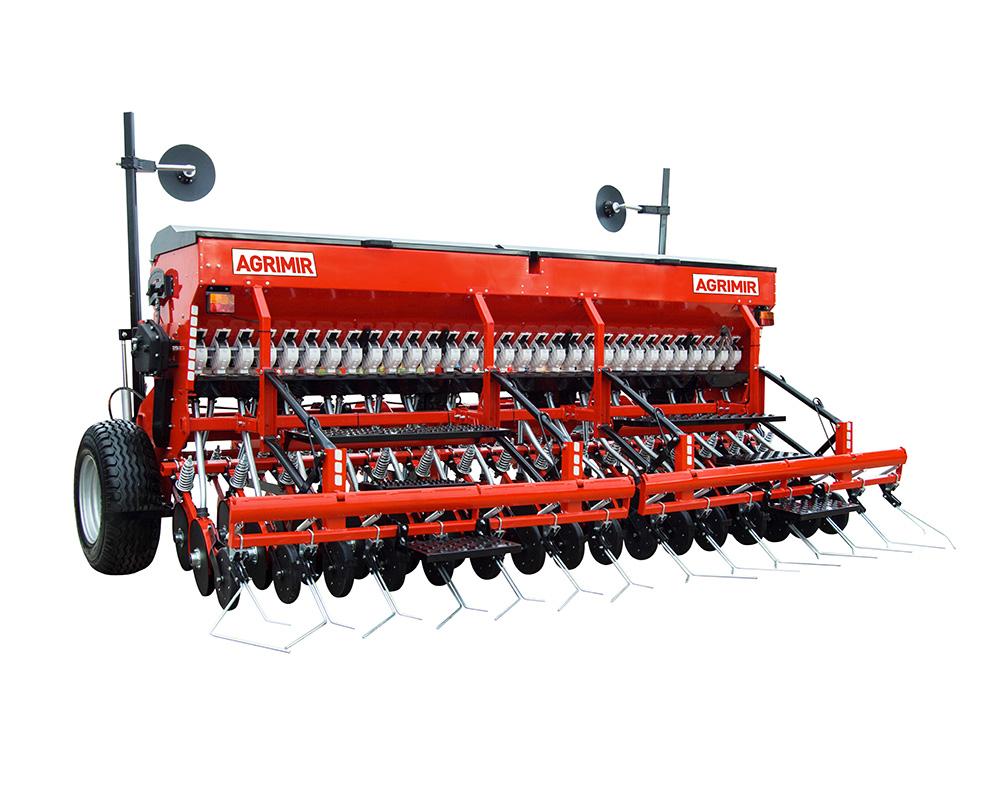

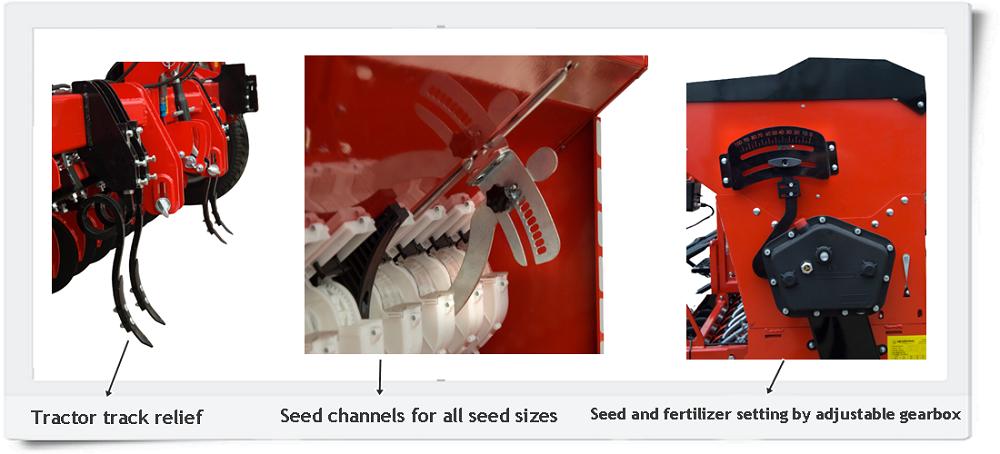

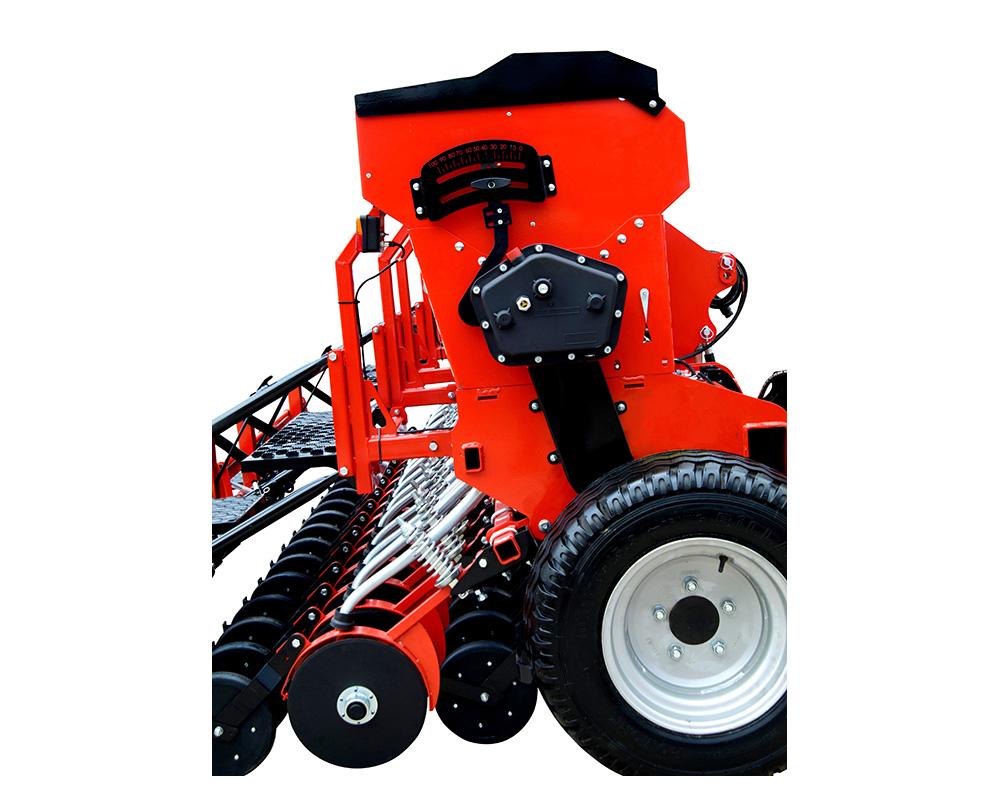

The universal seed drill is a planting machine which is capable of sowing by attaching to a tractor by a three-point system. Mounted and combined type seeder. For all cereal seeds, wheat, barley, oats, rye, soy, peas, chickpeas, lentils, cocoon etc. Also for Canola, alfalfa, broom, onion, carrot, tomato, spinach and vetch seeds sowing can be done. It is possible to sowing by this machine (seed and fertilizer at the same time) in desired amount, desired depth and at equal rows. It is possible to set equal planting depths with this type of coulters.The variable-speed transmission and planting seed gears enable the seeds to be spread to the soil evenly and in desired amount.
Tecnical Features |
Units |
Models |
AUS19 |
AUS23 |
AUS27 |
AUS31 |
Number of Discs |
pcs |
19 |
23 |
27 |
31 |
Seeding Distance |
cm |
13 |
13 |
13 |
13 |
Working Width |
cm |
250 |
300 |
350 |
400 |
Transport Width |
cm |
275 |
335 |
385 |
435 |
Transport Length |
cm |
250 |
Transport Height |
cm |
160 |
Seed Tank Capacity |
Lt |
460 |
550 |
640 |
730 |
Fertilizer Tank Capacity |
Lt |
305 |
370 |
400 |
425 |
Tank Capacity Without Fertilizer |
Lt |
750 |
950 |
1150 |
1350 |
Working Speed |
Km/h |
5-7 |
5-7 |
5-7 |
5-7 |
Weight |
kg |
1140 |
1380 |
1585 |
1790 |
Tractor Power |
Hp |
70 |
80 |
100 |
110 |
Tire Size |
- |
600x16 |
600x16 |
600x16 |
600x16 |
