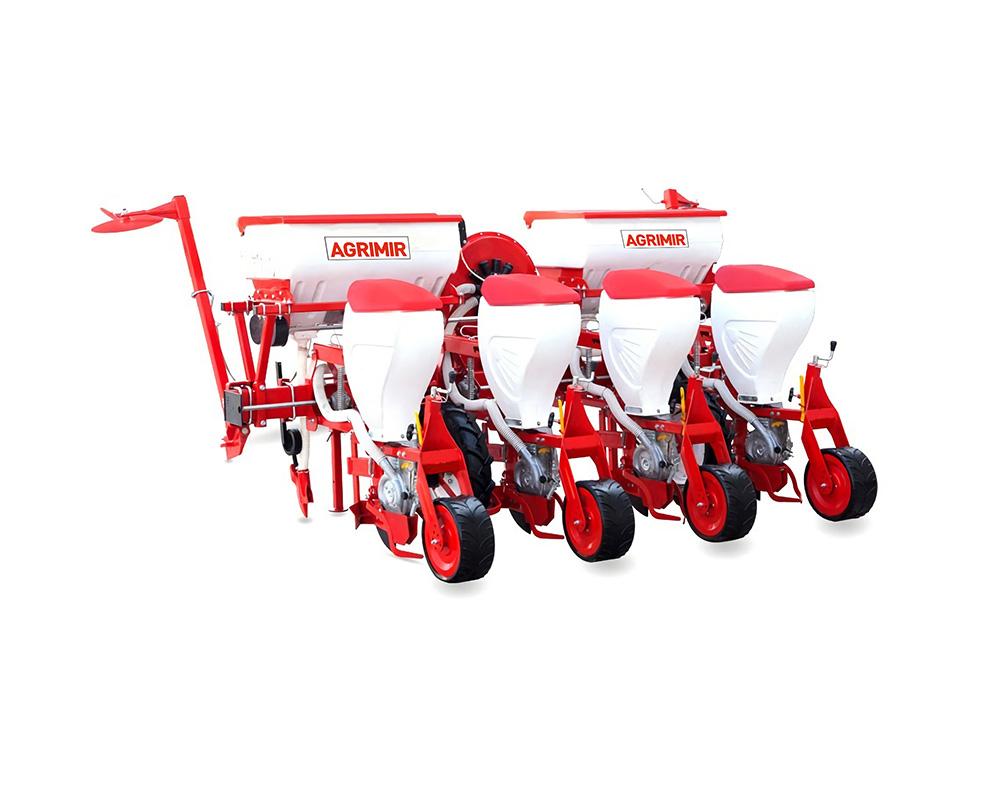

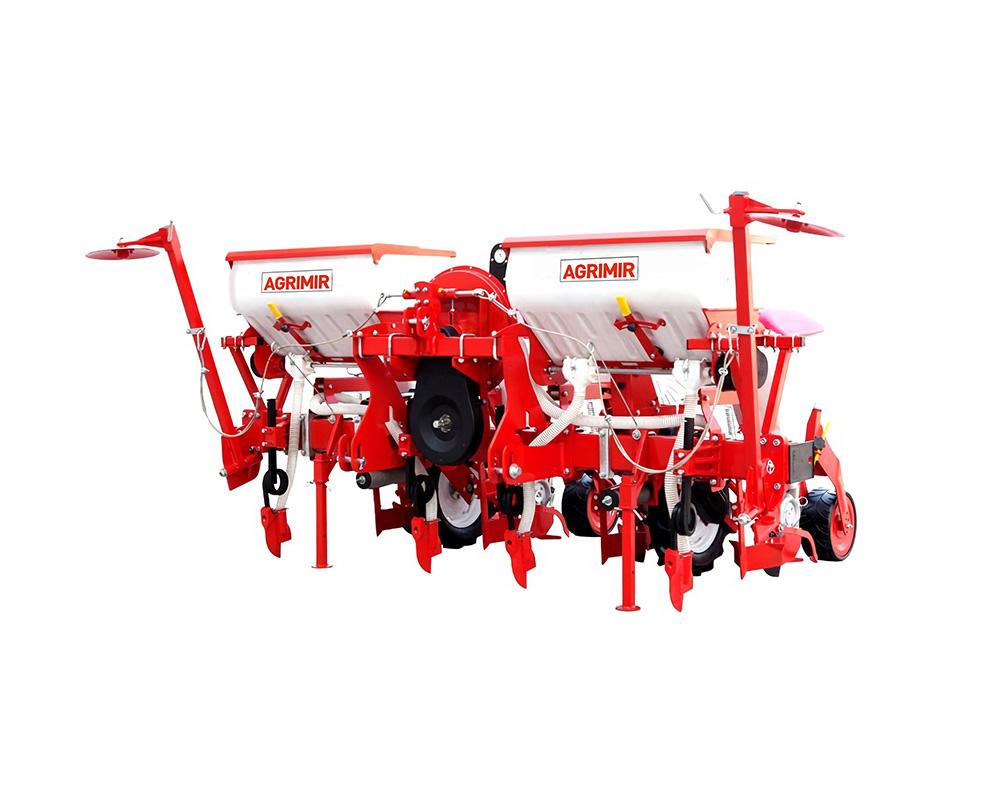

Pneumatic Seed Drill Coulter Type

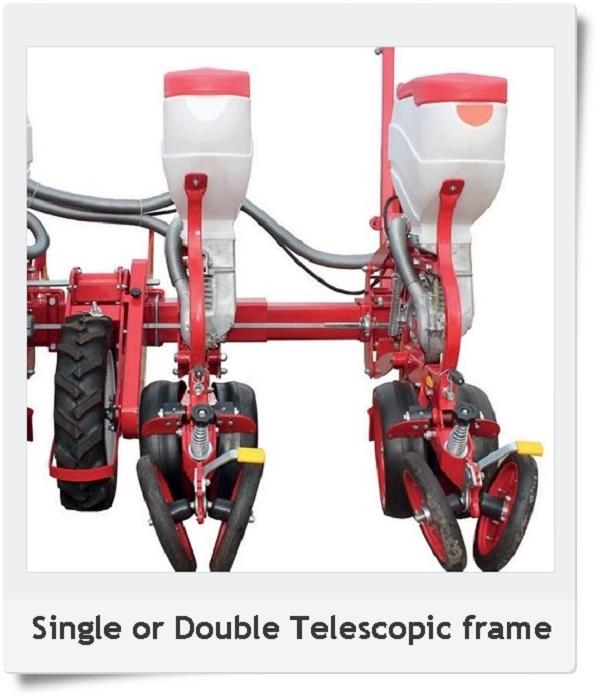

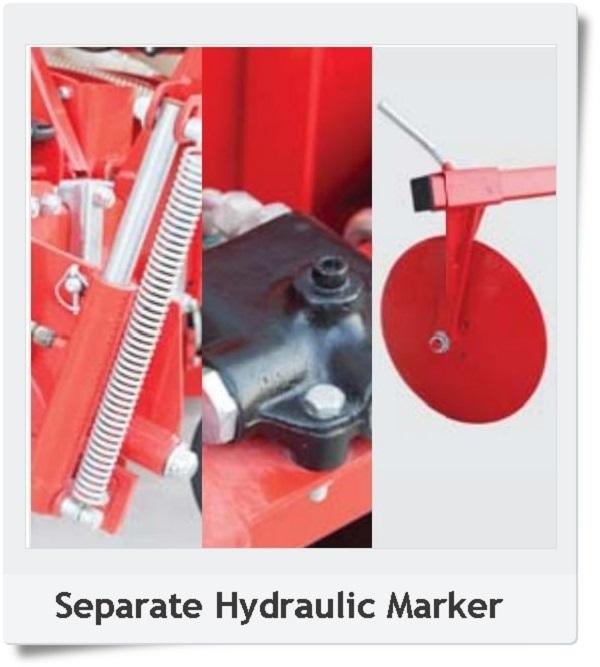

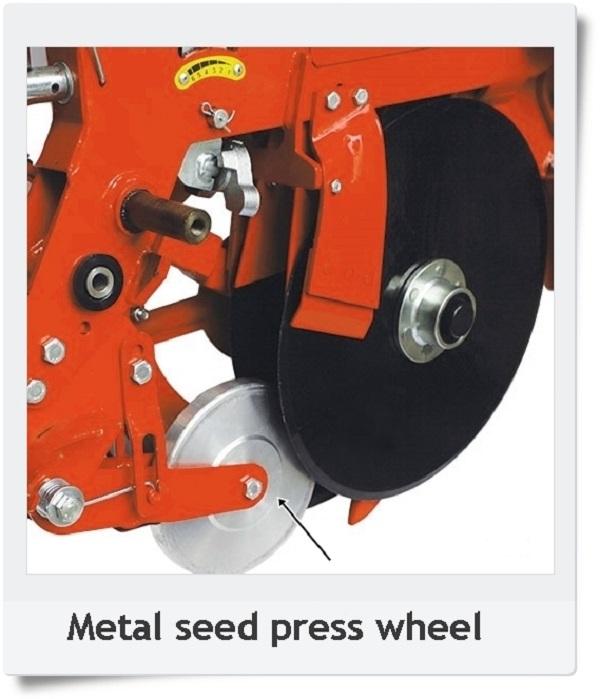

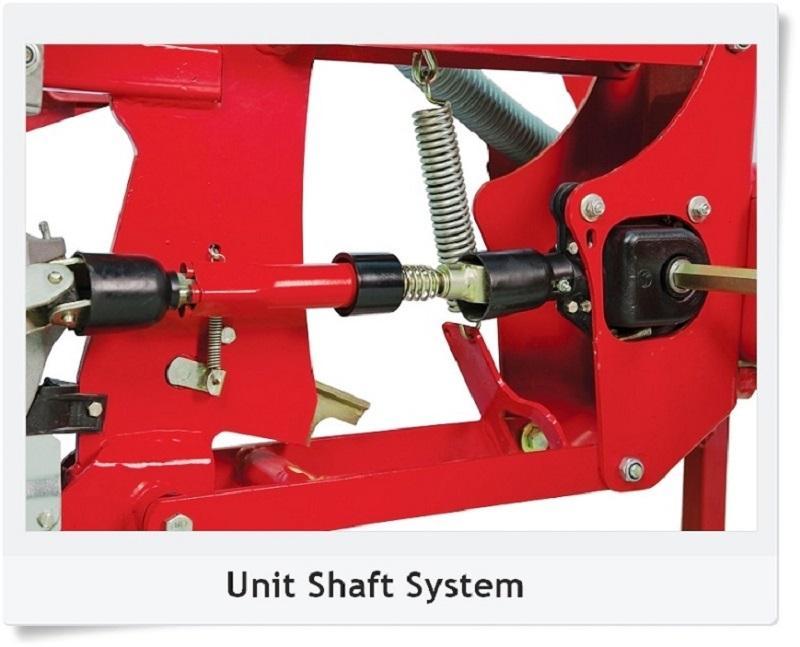

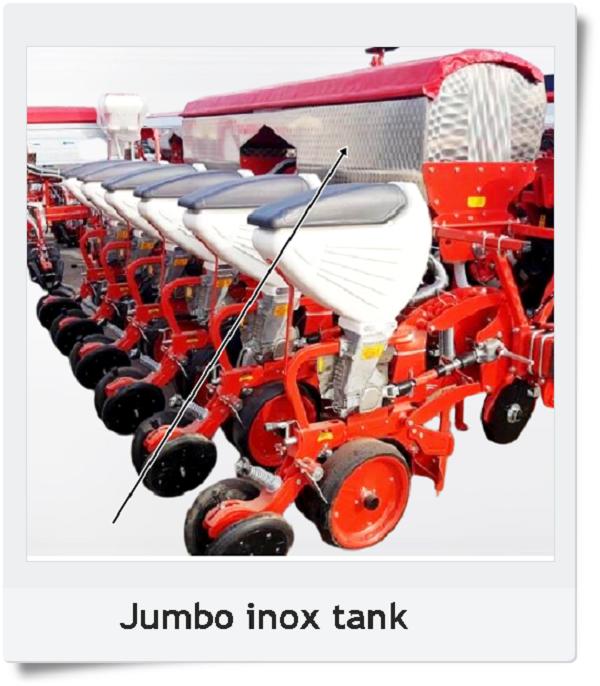

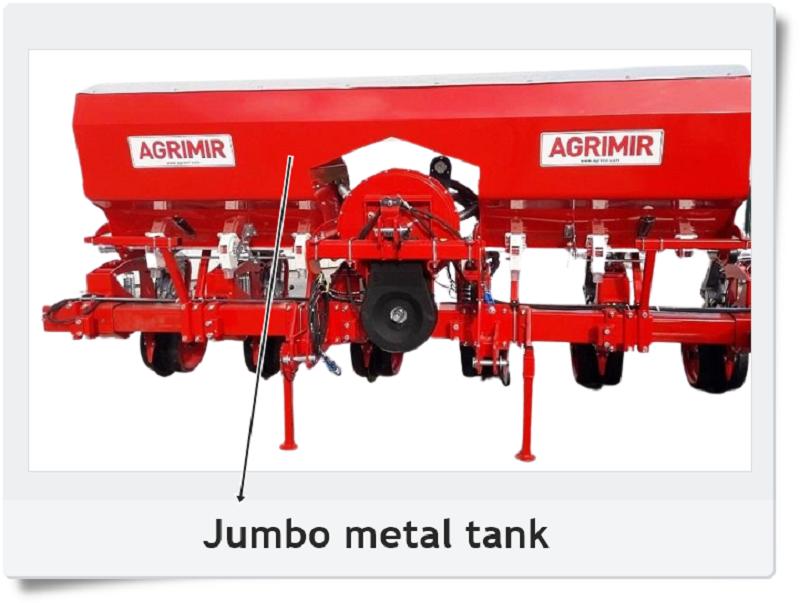

TIt is a machine for sensiti TIt is a machine for sensitive seeding for sugar beets, sunflower, corn, spinach, soya, tomato, peas, cotton, water melon, onion, sugar melon, pumpkin at the requested sowing distances and on the requested row and intervals.The aspirator is hanged to the three-point hanging system and gets its drive from the tail-shaft. All of the sowing units are connected on the chassis via parallelogram system.On the front part of the each sowing unit is an adjustable soil scraper. The sowing legs are manufactured at the Coulter type. The pressure wheels are existed right behind the units. The marker system is also available on the both sides of the machine.The marker operates automatically or is also with lift over the three-point hanging system.The drive is transmitted over the right wheel via the gear-box group gears to the shaft; then to the units by means of shaft system existed on every units. Fertilizer tanks are in “V” shape, have sieves and fertilizer discharge levers for easy cleaning after sowing. Pneumatic seeder provides a sensitive sowing since it transfers the motion activity generated by the wheels, to the seeder units with the help of shaft allowing easy adjustment of over row distance. Thanks to these specifications, it allows sowing on all kinds of soil conditions and d specifications, it allows sowing on all kinds of soil conditions and dropping fertilizer and seed into the equal depth.

Tecnical Features Units Models
Number of Units pcs 4 5 6 8
Total Length  cm 200
Total Height  cm 160
Total Width cm 300 320 420 600
Distance Beetween Rows cm 25-75
Seed Capacity Lt 40x4 40x5 40x6 40x8

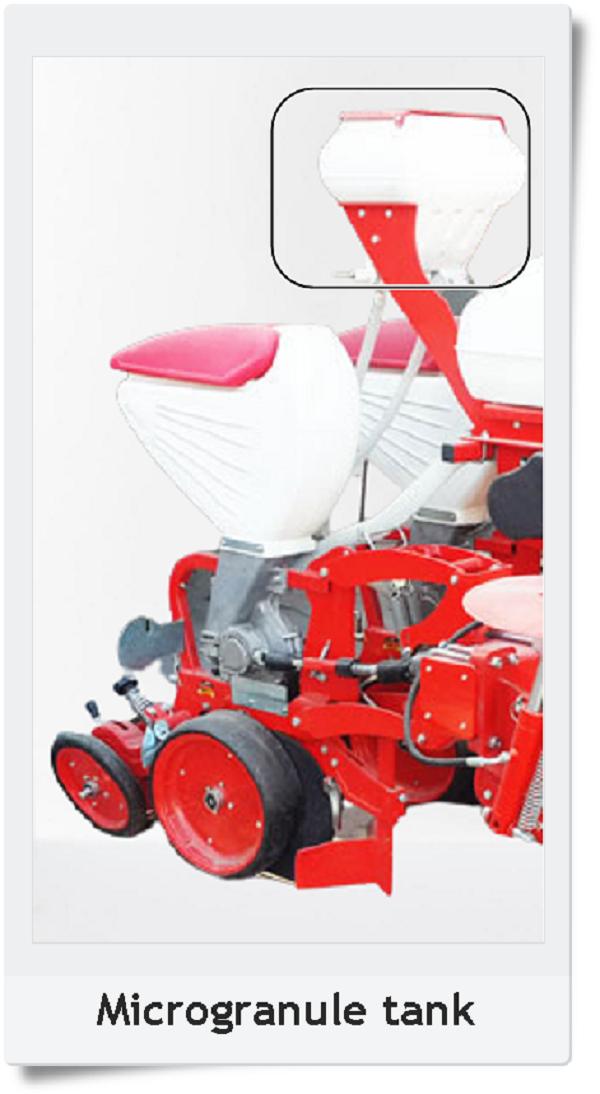

Fertilizer Box Capacity Lt 170x2 170x2 230x2 170x4
PTO  rpm 540
Weight Without Fertilizer  kg 700 850 1000 1300
Weight With Fertilizer  kg 950 1100 1250 1500
Tire  Size - 6.50/80-15
Tractor Power hp 60 70 80 100
