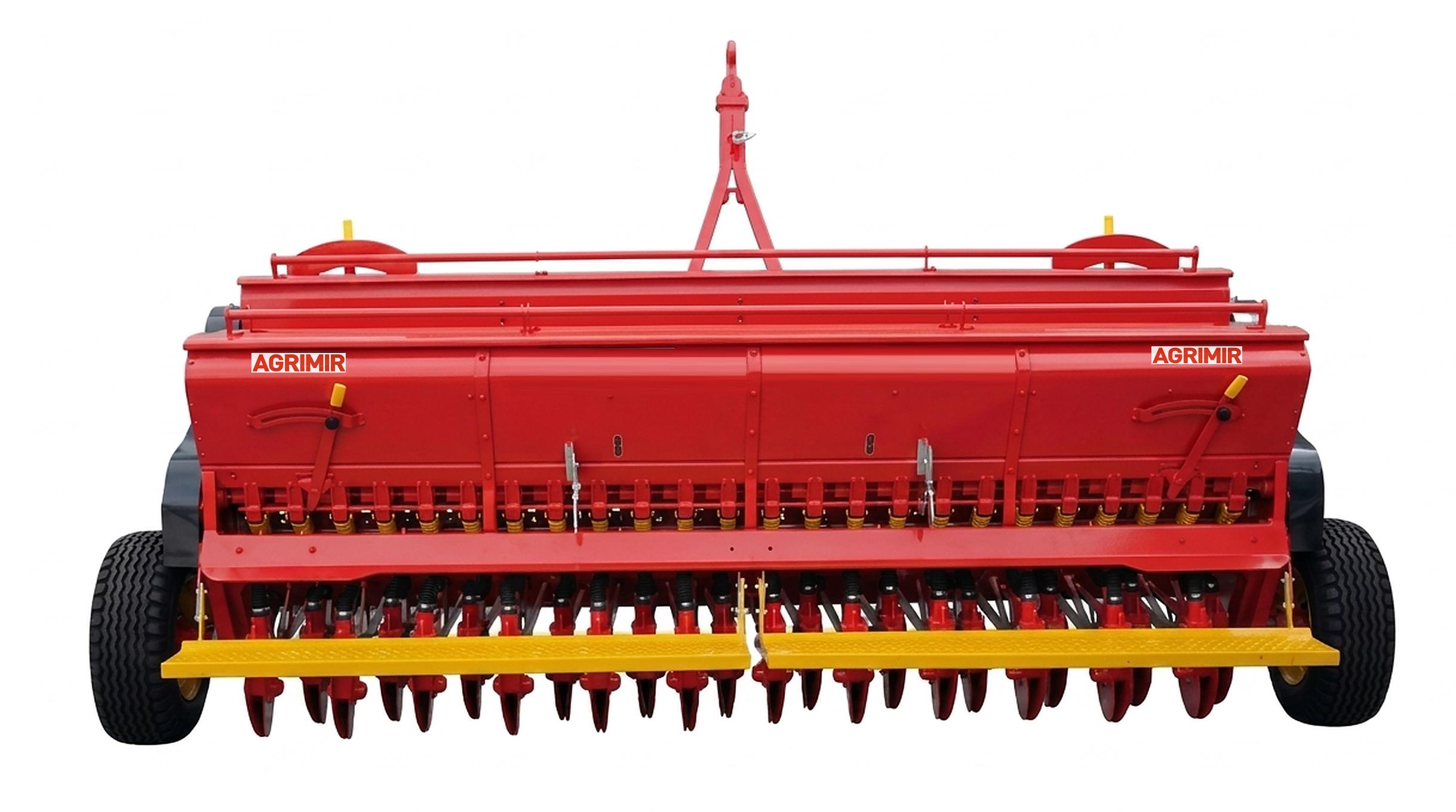

Combined Grain Seed Drill Trailed Type - Double Disc

This is an ideal machine for sowing; wheat, barley, oat, lentil, chickpea, bean etc. For grain and pulses seeds. Combined seed drill is a sowing machine that transfers the seed, pulses, feed grains and fertilizer to the seed bed opened by the discs continuously, thanks to the helical sheaves, with the requested quantity and depth with the help of levelling system. Thanks to its structure, the hopper prevents seed and fertilizer to accumulate and therefore, an efficient seeding is performed by protecting bearing with the dusting system using dry system double bearings on the discs and by automatic or hydraulic disc penetration setting, which is performed optionally, that allows easy planting of the seed or penet fertilizer into the requested depth and it is easy to clean thanks to its discharging levers on each hopper. Besides these standard features of our combined grain seeder, both three-point hitch and arrow system are its standard specifications. Thanks to these features, it is suitable for planting, seeding and operation with a tractor on all types of soil conditions.

Tecnical Features

Units

Models

AGS-D14

AGS-D16

AGS-D18

AGS-D20

AGS-D22

AGS-D24

Total Lenght

cm

125

125

125

125

125

125

Total Width

cm

285

315

342

370

399

427

Total Height

cm

155

155

155

155

155

155

Working Width

cm

215

245

272

300

329

357

Sowing Distance

cm

14

14

14

14

14

14

Tire Dimensions



7.50-16

Seed Capacity

kg

290

310

340

370

400

430

Fertilizer Capacity

kg

230

250

270

290

310

350

Tractor Power

hp

35-40

40-45

50-55

55-60

65-70

75-80

Weight

kg

910

990

1066

1144

1256

1310
