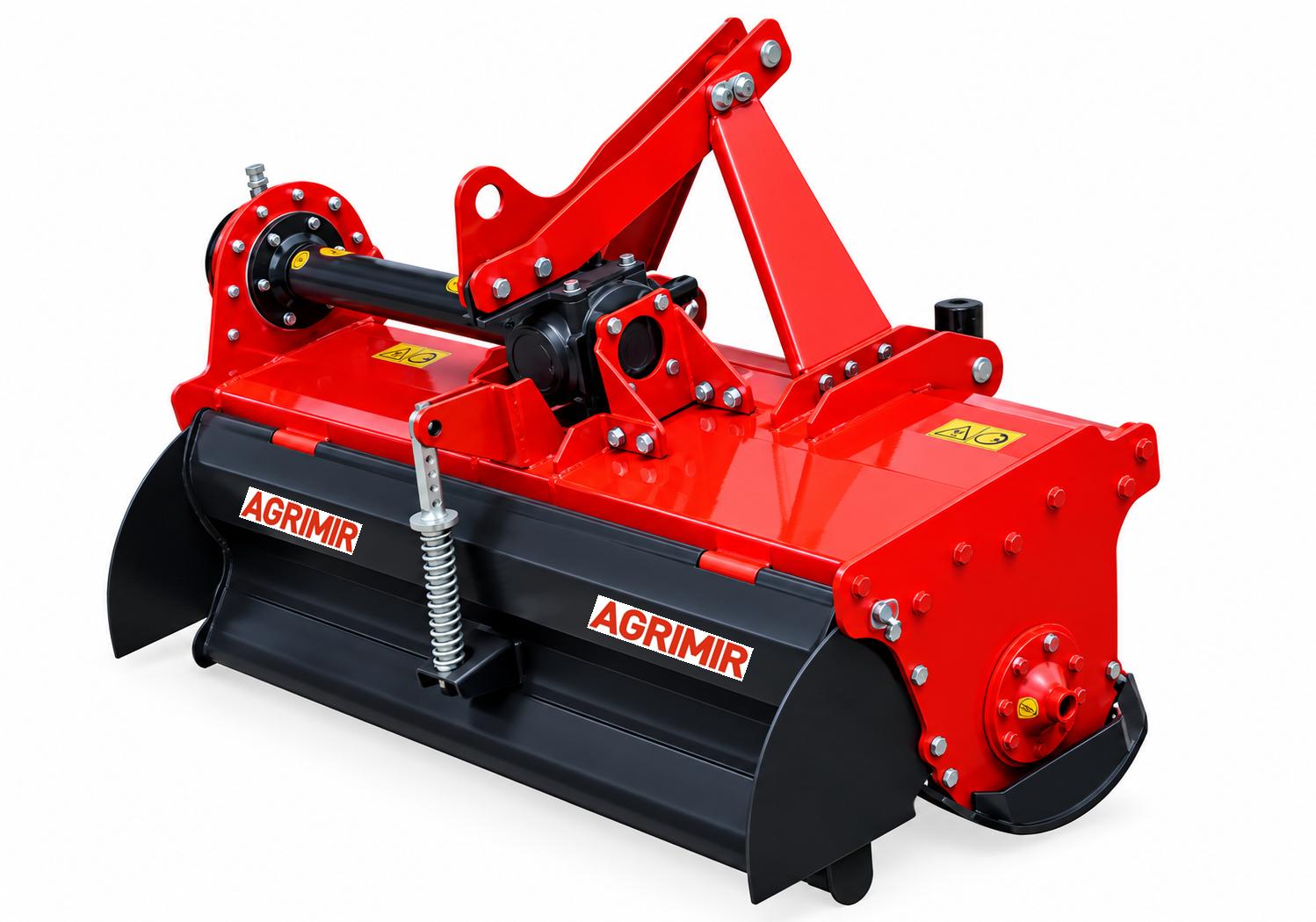

The Fixed Type Rotovator is a compact secondary soil cultivation machine. The machine operates by receiving power from the tractor’s PTO (Power Take-Off) and is connected to the tractor through a three-point hitch system. It has been specifically designed to provide effective soil cultivation in vineyards, orchards and small-scale agricultural areas. The machine is equipped with a strong horizontal main shaft system. Durable steel blades are vertically mounted on this shaft using a flange connection system. Thanks to this working principle, a well-aerated, uniform and seed-ready soil structure is achieved.
Features:
• PTO (cardan shaft) driven transmission system
• Three-point hitch connection
• Fixed chassis structure
• Heavy-duty main shaft system
• Flange-mounted high-strength steel blades
• Adjustable rear cover
• Compact and balanced design
• Durable body structure
Advantages:
✔ Compact and lightweight design
✔ High maneuverability in narrow areas
✔ Homogeneous soil crushing and mixing
✔ Durable blade and shaft system
✔ Long service life
✔ Low operating and maintenance costs
Using areas:
• Vineyard and orchard soil cultivation
• Fruit orchards
• Vegetable production fields
• Seedbed preparation
• Stubble breaking
• Mixing organic materials into the soil
• Stubble breaking
• Mixing organic materials into the soil
|
Tecnical Features
|
Units
|
Models
|
|
MFR80
|
MFR100
|
MFR120
|
MFR140
|
MFR160
|
|
Working Width
|
cm
|
80
|
100
|
120
|
140
|
160
|
|
Total Width
|
cm
|
105
|
125
|
145
|
165
|
185
|
|
Working Depth
|
cm
|
18
|
18
|
18
|
18
|
18
|
|
Number of Blades
|
pcs
|
20
|
24
|
28
|
32
|
36
|
|
Height
|
cm
|
80
|
80
|
80
|
80
|
80
|
|
Length
|
cm
|
77
|
77
|
77
|
77
|
77
|
|
PTO
|
rpm
|
540
|
540
|
540
|
540
|
540
|
|
Weight
|
kg
|
180
|
235
|
250
|
265
|
280
|
|
Tractor Power
|
hp
|
20-50
|
25-50
|
30-50
|
35-50
|
45-50
|
|
Tractor 3-Point Hitch
|
|
Cat 1, 2
|
Cat 1, 2
|
Cat 1, 2
|
Cat 1, 2
|
Cat 1, 2
|
