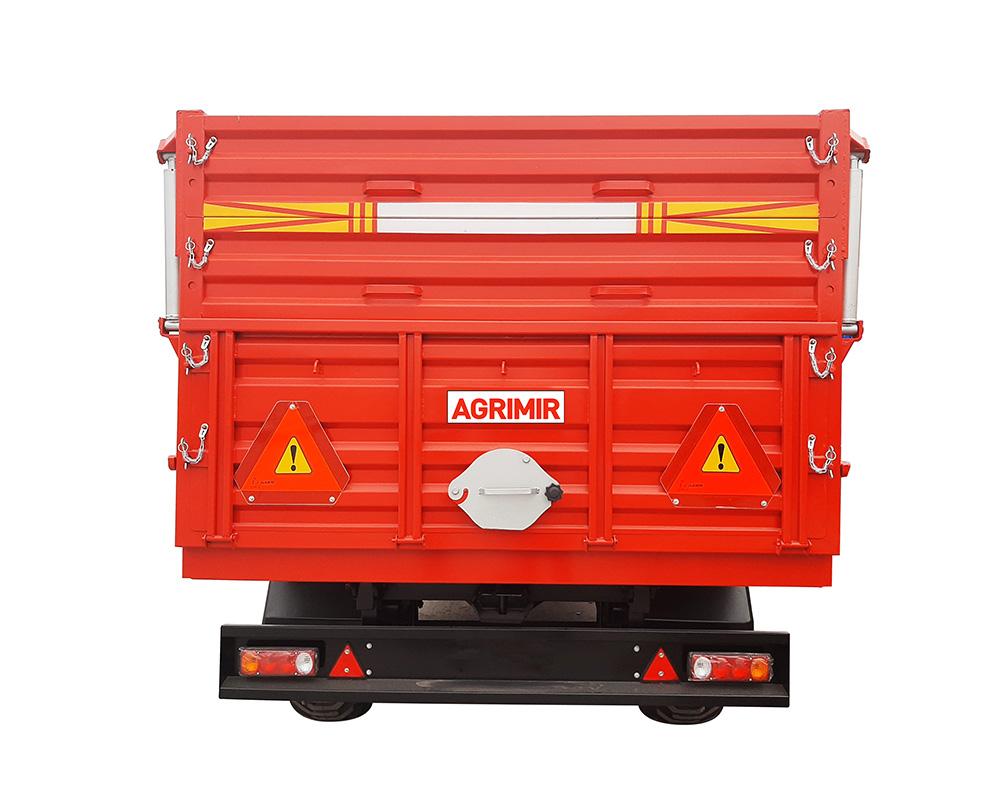

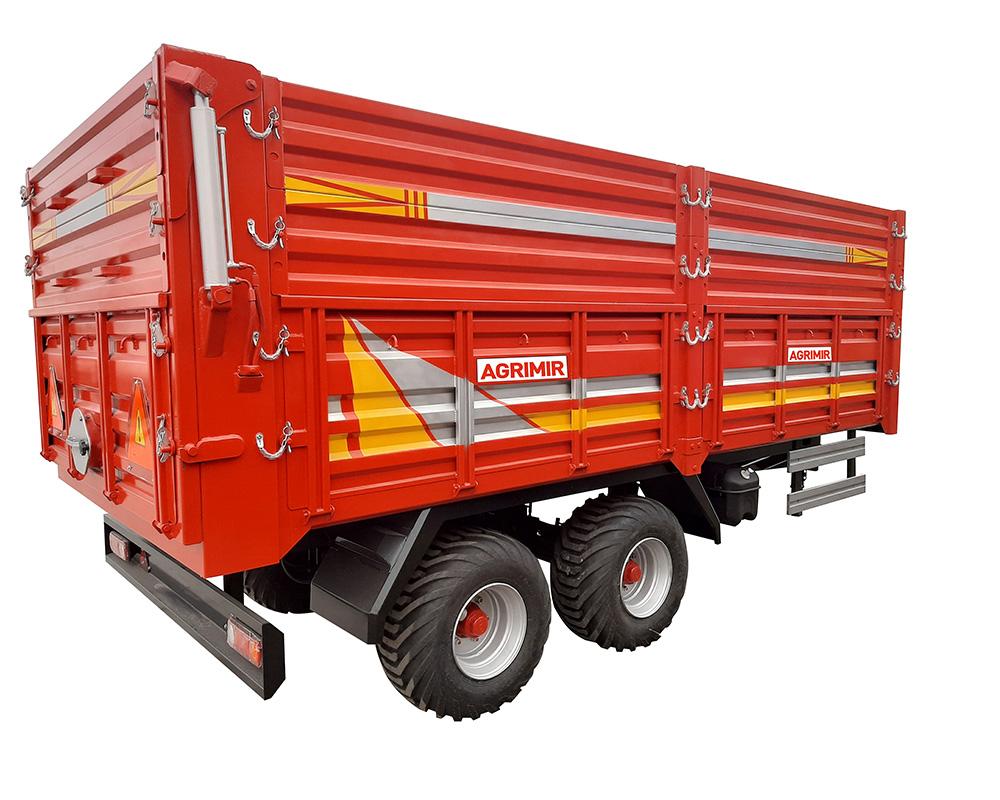

Double Axle Tandem Trailer

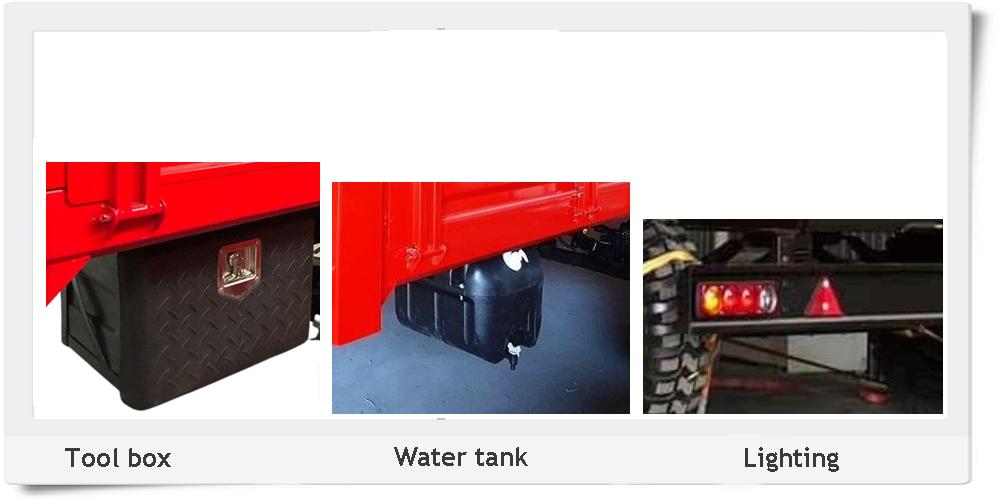

Trailer is one of the equipments that must be included each agricultural establishments and farmers. It is commonly used for the transport of goods and materials in farm, field and gardens. Our modern trailers are intended for transport of various materials, in particular agricultural produce where precise tightness is required. Our innovative trailers are marked by: well-equipped standard versions, high loading capacity of box-bodies, long life using period. Some standard features like light system, tool box, chock, water tank, color option are available.

Tecnical Features Units Models
ATT-6 ATT-8 ATT-10 ATT-12 ATT-14 ATT-20
Capacity Ton 6 8 10 12 14 20
Axle Type - Tandem Tandem Tandem Tandem Tandem  Tandem
Tipping Type - rear rear rear rear rear rear
Length cm 430 450 480 480 500 600
Width cm 210 210 210 210 215 220
Height cm 60+25+25 60+30+30 60+30+30 60+350+350 70+35+35 70+40+40
Tyre Size - 12.5/80 12.5/80 12.5/80 400/60 400/60 385/55 /22.5
Weight kg 2400 2600 2900 3200 3500 4300
Tipping Angle   42° 42° 42° 42° 42° 42°
Ground Clearance cm 110 110 110 110 110 110
