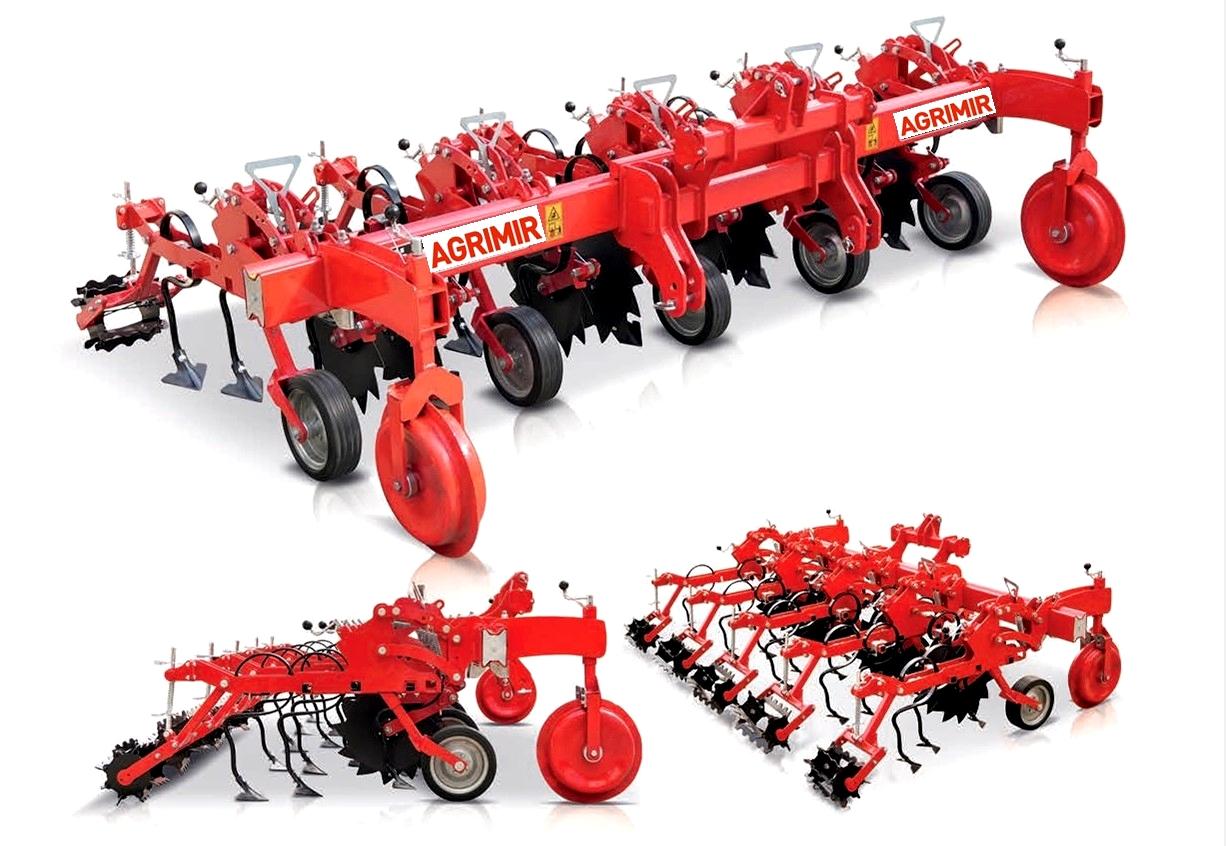

Inter-Row Cultivator

Inter-Row  Cultivator

Catalog

Inter-Row  Cultivator

General Features :

An ideal machine for hoeing: beet, maize, cotton, sunflower, tobacco, tomato, bean, soybean and vegetable.

Sowed in their furrows does not make any poor subsoil and provides full struggle for the protection of humidity in soil and against weeds. With the units that move independent from each other, it keeps hoeing depth constant even in the rough field conditions.

At other Hoeing Implements penetration tip elements are affecting in the Soil by swivelling squeezing the Soil, and forming a hard layer at the ground of Soil, it could use at the cloudy and stony Soils. While it has a simple body it is impossible to be out of order, besides driving is ease and has not maintenance cost.

  • it provides 80% labour-saving
  • also provides saving for irrigation
  • it offers opportunity of multi-functional adjustments for each type of plant

Technical

  MODELS


Units

ARHM5

ARHMF5

ARHM6

ARHMF6

ARHM7

ARHMF7

ARHM9

ARHMF9

Number of  Units


pcs

5

6

7

9

Number of Tines


pcs

21

16

31

41

Total Length

cm

300

330

300

330

450

480

600

630

Total Heigth

cm

123

170

123

170

123

170

123

170

Total Width

cm

186

Working  Width

cm

adjustable

Distance Between  Rows

cm

45 - 90

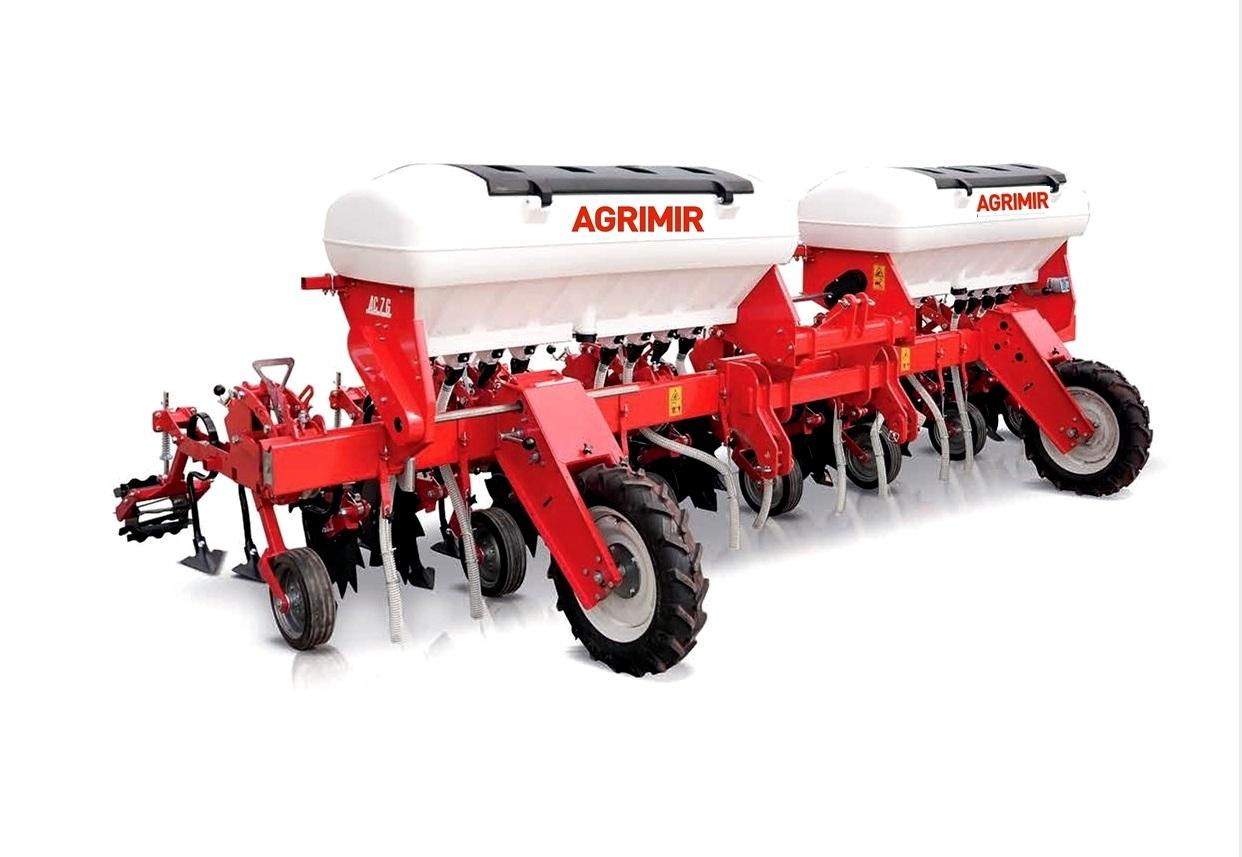

Fertilizer Box Volume

Lt.



450



450



340x2



500x2

Fertilizer Capacity

kg



440



440



335x2



490x2

Weight Without Fertilizer Tank

kg

650



700



950



1250



Weight With Fertilizer Tank

kg



800



900



1200



1600

Tractor Power

hp

45

50

55

60

65

70

75

80
